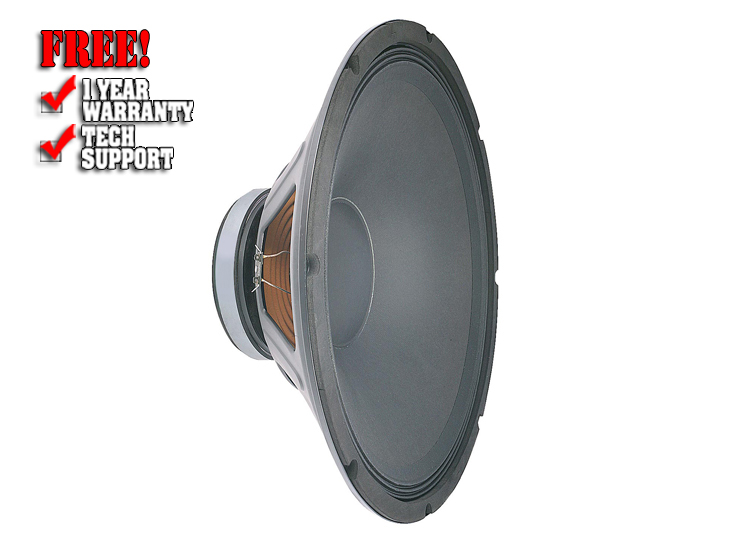

Pro Series 18 Speaker

Specifications:

• 18"
• Revc (ohms) 6.30
• Sd (Square Meters) 0.126
• BL (T/M) 25.10
• Znom (ohms) 8
• Vas (liters) 365.1
• Cms (uM/N) 117.9
• Mms (gm) 239.01
• Qms 9.29
• Qes 0.391
• Net weight lb. / kg: 14.6 lbs. / 6.6 kg
• Qts 0.375
• Voice coil material: 2 layers, thermally bonded copper wire, Kapton® former, Nomex® stiffener
• Xmax 3.5
• Voice coil diameter: 3" / 76.2 mm
• Le (mH) 1.96
• Cone: Kevlar® impregnated cellulose
• SPL (1W 1m) 94.5
• Usable freq. range: 40 Hz ~ 1.5 kHz
• No (%) 2.60
• Sensitivity: 94 dB / 1 W 1 m
• Vd (cu. in. / ml) 54/882
• Power capacity: 800 W Peak 400 W Program 200 W Continuous
• Pmax (Watts pgm.) 400
• Impedance: 8 Ohms
• Disp (cu. in. / ml) 202/3310
• Fo (Hz) 28.8
• Weight Unpacked: 15.87 lb(7.2 kg)
• Weight Packed: 20.28 lb(9.2 kg)
• Width Packed: 19.125"(48.5775 cm)
• Height Packed: 20"(50.8 cm)
• Depth Packed: 9.25"(23.495 cm)
