JBL 2380A Horn

Description

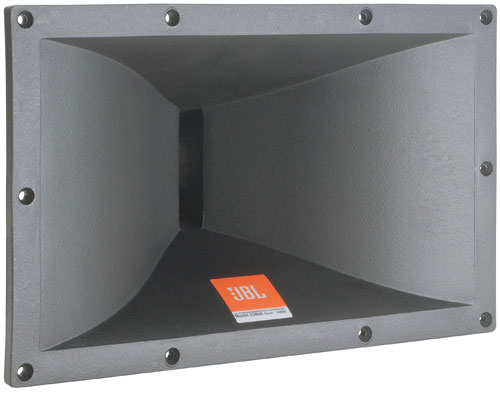

The JBL 2380A Bi-Radialô horn¹ is designed for flush cabinet mounting or compact cluster applications.

The 2380A has a nominal coverage pattern of 90° horizontal x 40° vertical. The horn provides uniform on and off axis frequency response from 500 Hz to beyond 16 kHz in the horizontal plane and 2 kHz to 16 kHz in the vertical plane with constant directivity above 2 kHz. The horní s small vertical mouth dimension (just slightly larger than the compression driver used to drive the horn) allows very compact single and multiple horn/driver systems to be put together Should vertical pattern control be required below 2 kHz, two or more horns may be stacked vertically to restore full Bi-Radialô performance.

The exceptionally consistent horizontal dispersion eliminates the midrange narrowing and high frequency beaming problems typically associated with conventional horn designs. Additionally, the highly predictable performance of the 2380A greatly simplifies cluster design. The need for horn overlapping is minimized and lobing and comb filter effects are virtually eliminated. Computer-aided design techniques were used to derive the horn contours in the horizontal and vertical planes. Utilizing sidewall contours based on a polynomial power series formula, the horn design yields smooth response, low distortion, and even coverage. This design avoids the performance disadvantages of horns that feature sharp flare transitions and flat sidewalls. The Bi-RadialT M compound flare configuration provides constant coverage over defined, solid angles. To ensure light weight, superior strength, and freedom from esonances, the horn bell is constructed of molded
structural foam.

The 2380A will accept the 49 mm (2 in) diameter throat 2441, 2445, or 2485 compression driver With the addition of the 2327 adapter, the horn will also accept the 25 mm (I in) throat 2425 driver.

Features

• Uniform horizontal on and off axis frequency response

• Precise horizontal and vertical pattern control

• Full horn loading to 500 Hz

• Flat front and compact size

• Lightweight construction

• 49 mm (2 in) throat entry
