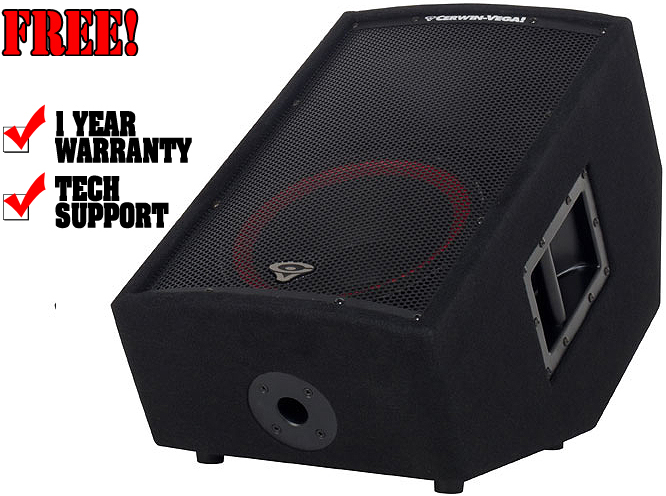

The CVi-122M is a portable, full range, twelve-inch 2-way stage monitor / main loudspeaker system designed for live music and playback applications. The CVi-122M features a high power, cast frame twelve inch transducer with a 2.5 inch voice coil to handle the low and low/midrange frequencies and a 34mm PETP (polyethylene terephthalate) diaphragm compression driver mounted to a 80° H x 50° V hemi conical horn for smooth, accurate on and off axis high frequency performance. Advanced crossover network designs are employed for coherent cross-band summation throughout the coverage pattern.

• Stage monitor
• Portable live sound PA
• Auditoriums
• Fill monitor
• DJ system PA
• Clubs

• Model - CVi-122M
• System Configuration - 2-Way stage monitor
• Connections - 2 ea.—¼" Phone Jack and Neutrik Speakon
• Low Frequency System - Reflex loaded 12" transducer
• High Frequency System - 1 inch exit 80° H x 50° V
• Enclosure Type - Vented, wedge
• Enclosure Structure - 18mm OSB, internal bracing
• External Covering - Black polypropylene fiber
• Grille Material - 18 gauge black powder coated steel

• Frequency Response - +/- 3 dB 69 Hz—16 kHz
• Operating Range - -10 dB 53 Hz—20 kHz
• Nominal Impedance (Ohms) - Full Range 8 Ohms
• Axial Sensitivity (dB SPL, 1W / 1M) - Full Range 98 dB
• Calculated Maximum Output (dB SPL, @ 1M) - Full Range 128 dB
• Power Handling (Watts) - RMS 250 W / Program 500 W / Peak 1000 W
• Nominal Directivity / -6dB points (Degrees) - Horizontal: 80° / Vertical: 50°

Weight: 47 Lbs.
Dimensions: 20.5" x 15.75" x 25.25"
