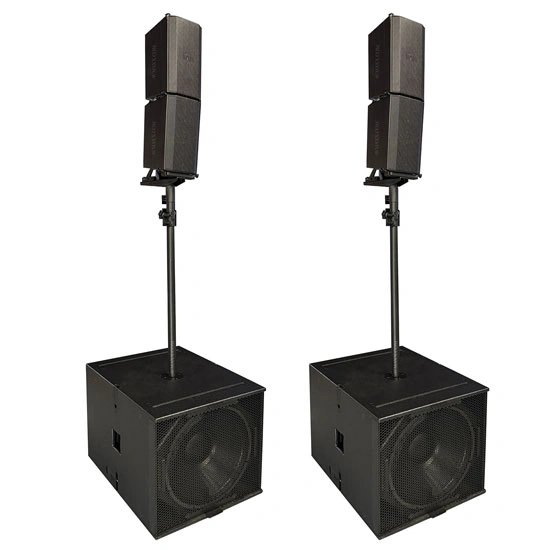

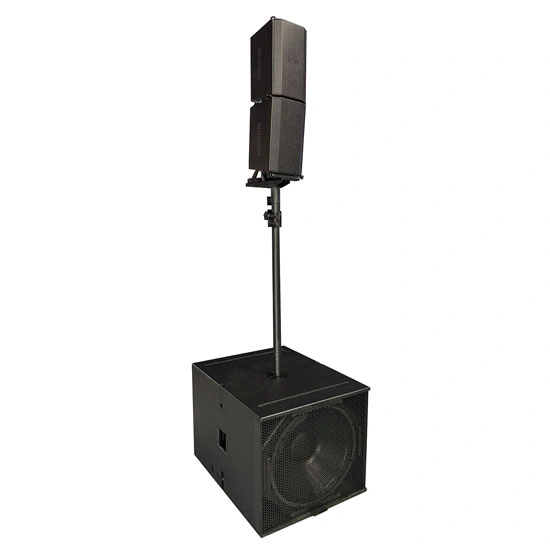

Avante Audio Imperio Pro IMP205 & IMP118 Subwoofer Package

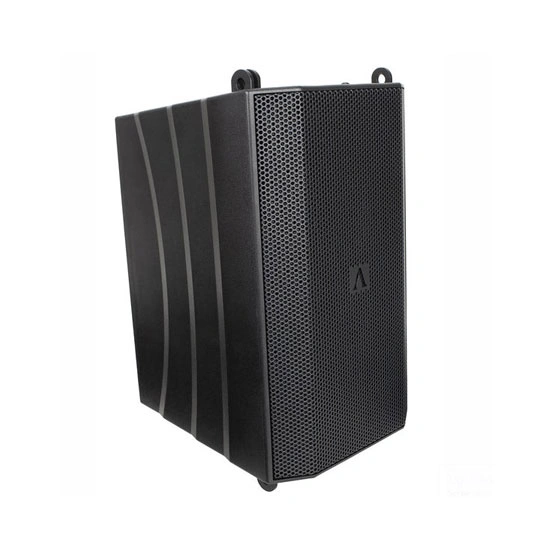

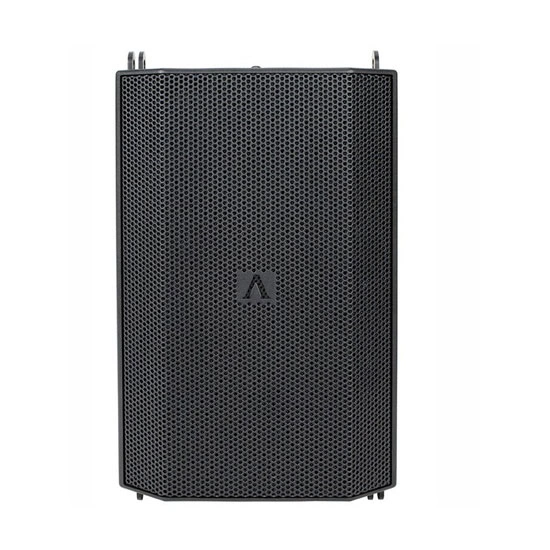

Avante Audio Imperio Pro IMP205 Powered Loudspeaker Description

The Imperio Pro Series builds on the success of Avante Audio's original Imperio Series. Designed for very fast deployment and versatility, the Imperio Pro IMP205 is a light-weight compact, high output active line array system fully equipped with neodymium components: Dual 5-inch Low-Mid transducers and Six 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology). Each array module of IMP205 is driven by 440W RMS (880W Peak) Class-D Power Amplifier with PFC Switching power supply.

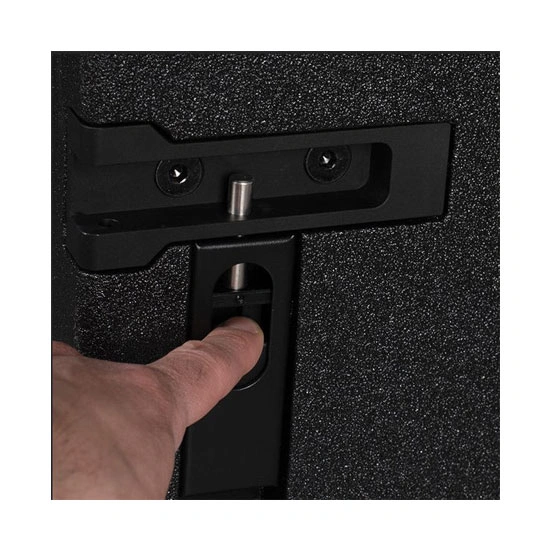

Imperio Pro IMP205 features include: 32-bit DSP with advanced FIR digital filter technology. Controls include selectable DSP and input sensitivity. Rigging offers seven Splay Angles: 0, 2, 4, 6, 8,10, & 12-degrees. The Imperio Pro IMP205 cabinets can also be configured as a flown array with the sub on top or ground stacked on subs.

Imperio Pro accessories include: Imperio Pro IFB205 Flybar (IFB205), Imperio Pro NEW Flybar (IFB205), Imperio Flybar LG (IMP265), Imperio Pole (IMP194) and Link-pin 2 (IMP340), Imperio Pro T-Adapter (IMP224), Imperio QRC Road case (IMP670) Imperio Pro Ground Stack mount and base (IGS205).

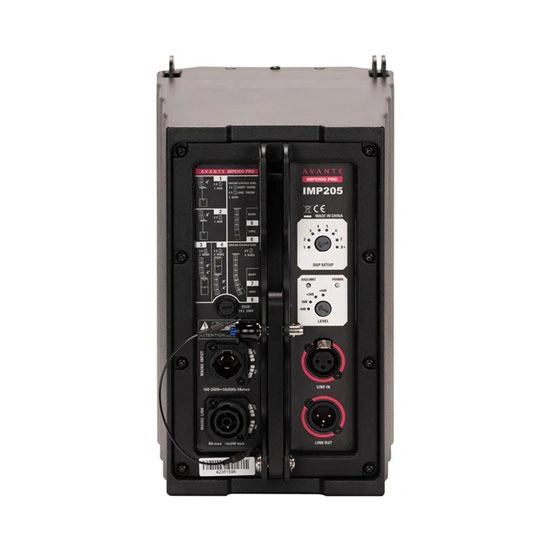

Avante Audio Imperio Pro IMP205 Powered Loudspeaker Specifications:

• AMPLIFIER:
• 440W RMS, 1700W Peak Class D Amplifier Module
• Switching Power Design
• LED Power / Signal / Clip Indicator
• 32-bit DSP with FIR digital filters
• Selectable System Configurations
• Input: 1x XLR and IP Locking Power Connector
• Output: 1x XLR and IP Locking Power Connector
• Gain: Selectable Input Sensitivity
• Power Input: 100–240V ~ 50/60Hz
• Power Linking:
  • SUB210 @ 120V: up to 2 units
  • IMP118 @ 120V: up to 2 units
  • IMP118 @ 208V: up to 4 units
• SPEAKER:
• 2x 5.0" Neodymium Low-Mid transducers
• 6x 1.75" IDVAT HF Neodymium drivers (Inverted Dome Vertical Array Technology)
• Type: 2-Way Active Closed Design
• Frequency Response: 100Hz – 20kHz
• Max Output SPL: 128 dB (single box measured on-axis @1m)
• Selectable Input Sensitivity: -3dB, 0dB, +3dB, +6dB
• Cabinet: ABS Plastic
• Grille: Powder-coated steel

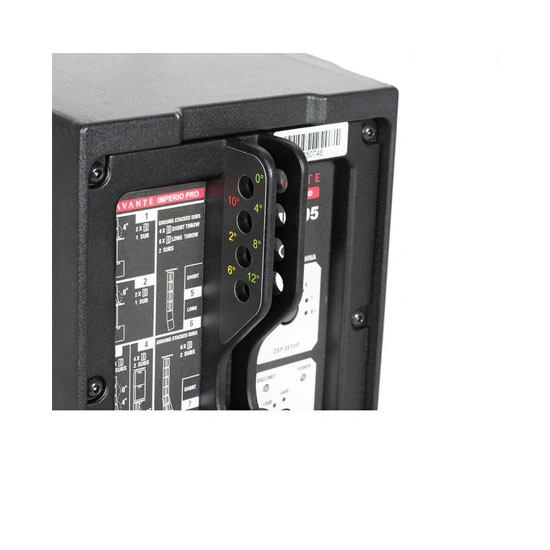

• Splay Angles:
  • 0°, 2°, 4°, 6°, 8°, 10°, 12°
• Integrated Rigging: Yes
• Horizontal Dispersion Angle: 100°
• Power Linking:
  • 120V (low demand e.g. talking heads): up to 8 units
  • 120V (high demand e.g. rock, EDM): up to 4 units
  • 208V (low demand): up to 16 units
  • 208V (high demand): up to 8 units
• Dimensions (L × W × H): 8.8" × 7.3" × 12.8" / 224mm × 185mm × 324mm
• Weight: 12.5 lbs / 5.6 kg

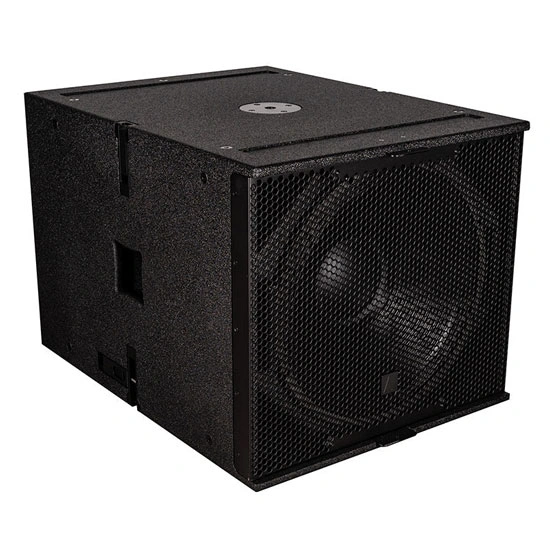

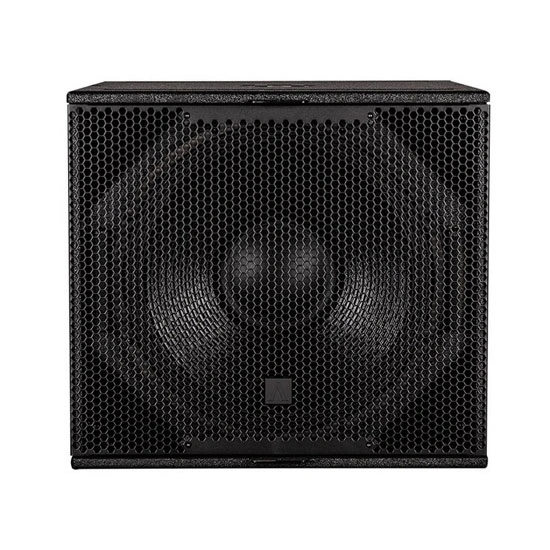

Avante Audio Imperio Pro IMP118 18-inch Powered Subwoofer Description

The Avante Audio Imperio Pro IMP118 is a professional active subwoofer engineered for large events and pairs nicely with the Avante Imperio Pro IMP205 mini line array. With its powerful 18-inch woofer, high-power 4-inch voice coil and bass-reflex system design, this subwoofer delivers an exceptional frequency response of 32 Hz-130 Hz (-10dB) and 38 Hz-130 Hz (-3dB) that ensures deep-powerful bass that you can feel!

Equipped with a selectable crossover frequency of 60 Hz, 70 Hz, 80 Hz, 90 Hz, 100 Hz, and 120 Hz, and a slope of LR 24dB per octave, the Imperio Pro IMP118 is designed to provide unparalleled sound control. The active class-D 3800-watt peak power ensures that you have great headroom and very low distortion, while the variable input gain allows you to optimize gain structure.

With a CNC machined Baltic birch plywood enclosure, this subwoofer is made to withstand the rigors of touring. It has a sleek black polyurea finish that is very durable as well as a black powder coated steel grille to protect the speaker cone, making it the perfect choice for professional sound applications including live sound, night clubs and mobile DJ. The 20 captive-nut fly points (M10) and pole mount (M20) make it easy to mount the subwoofer in a variety of installations, while the recessed handles, bottom nylon skids, and rear rubber feet make it easy to transport and stack.

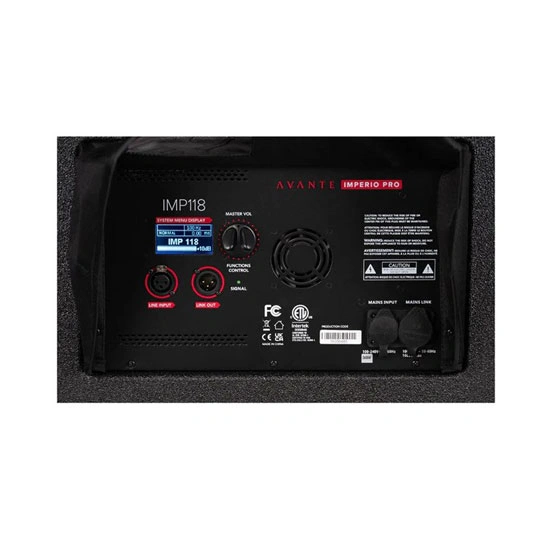

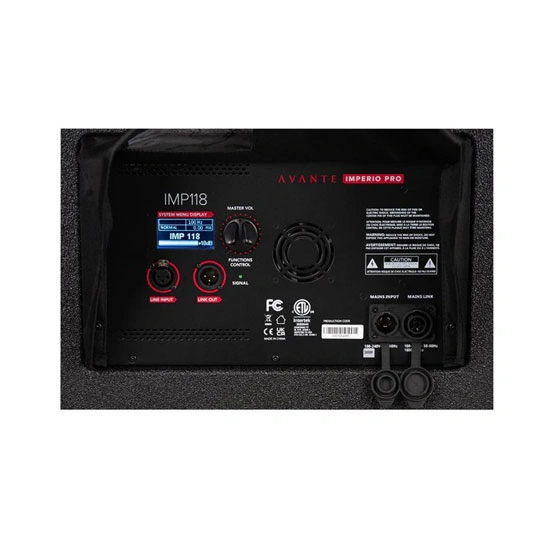

The rear panel features an XLR input socket alongside an XLR output for linking together additional active speakers. Power is supplied via a locking IP65-rated socket, which can't become accidentally disconnected during use. A locking IP65-rated output link socket is also provided, allowing the power supply for multiple speakers to be 'daisy chained' from a single outlet. The unit can be used globally with a universal PFC power supply 100~240V AC 50/60Hz. A protective cover is also provided for the amplifier panel and connection sockets, allowing for safe use outdoors.

Finished in a durable black polyuera and featuring a black powder-coated steel grill, this subwoofer is sure to look great on stage, and the IP rated locking power connector ensures a reliable connection that won't come unplugged. With its impressive maximum SPL of 136 dB peak, the Avante Audio Imperio Pro IMP118 subwoofer is the perfect choice for anyone looking to create a big impact to help you take your sound to the next level!

Avante Audio Imperio Pro IMP118 18-inch Powered Subwoofer Specifications:

• System Type: Active DSP Controlled 18-inch Sub, Bass-Reflex, Touring Subwoofer
• DSP Features: Delay, Crossover, Cardioid
• Frequency Response: 32 Hz-130 Hz (-10dB) / 38 Hz-130 Hz (-3 dB)
• Component: 18-inch High-power Woofer, 4-Inch (100mm) Voice Coil
• Coverage Pattern: Selectable cardioid and end-fire settings
• Crossover Frequency: Selectable 60 Hz, 70 Hz, 80 Hz, 90 Hz, 100 Hz, 120 Hz with LR 24dB per octave slope
• Power: Active Class-D amplifier, 1800W RMS / 3600W Peak
• Input Gain: Variable
• Maximum SPL: 136 dB Peak
• Enclosure: Premium Birch plywood
• Suspension/Mounting: 20 captive-nut fly points (M10), Pole Mount (M20)

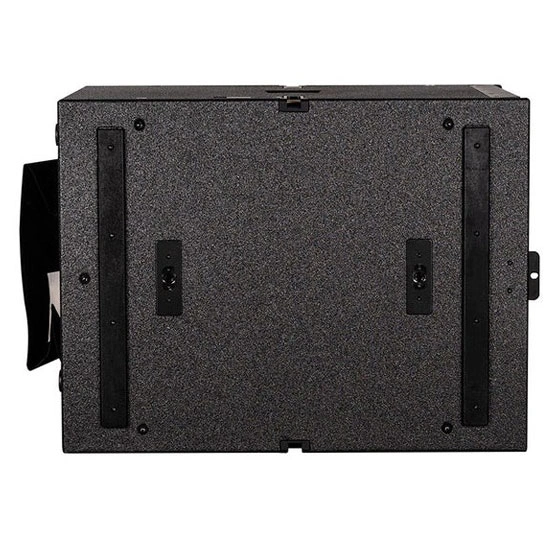

• Transport: 2 recessed handles, bottom nylon skids, rear rubber feet, interlocking stacking hardware
• Finish: Black Polyurea
• Grille: Black powder-coated steel
• Connectors: Signal In/Thru – XLRF / XLRM
• AC IN/OUT: IP65-rated locking connector In/Thru, 100~240VAC 50/60Hz

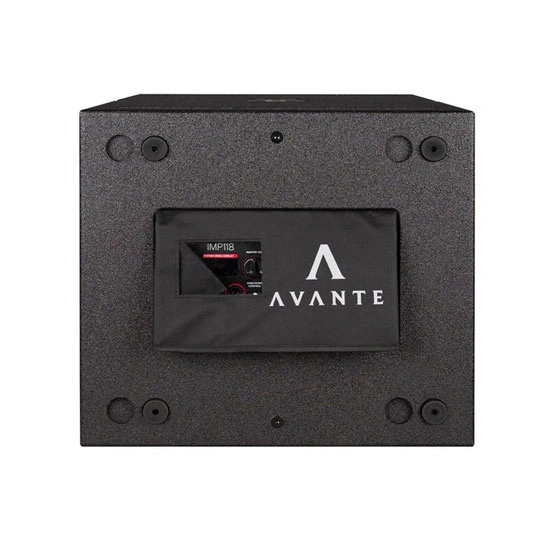

• Protective rain cover on rear panel protects sockets and DSP display
• Dimensions: 20.75" H x 22.6" W x 30" D (527mm H x 574mm W x 762mm D)
• Net Weight: 101 lbs. (45.8 kg)
• Approvals: CE, FCC, cETLus (Control #3069848)

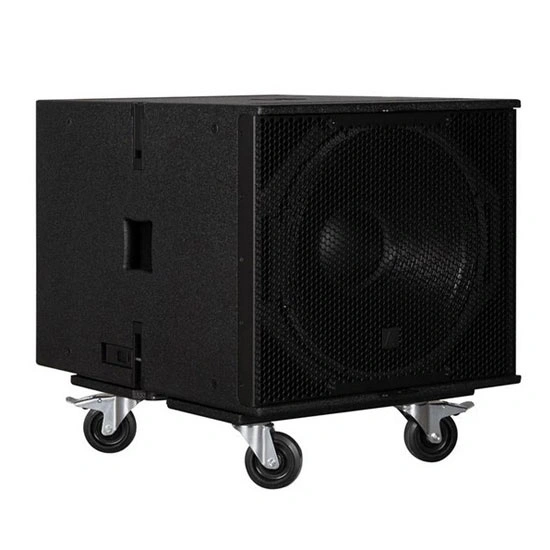

• Accessories: Imperio Pro IMC118 interlocking caster board, protective cover, and speaker pole

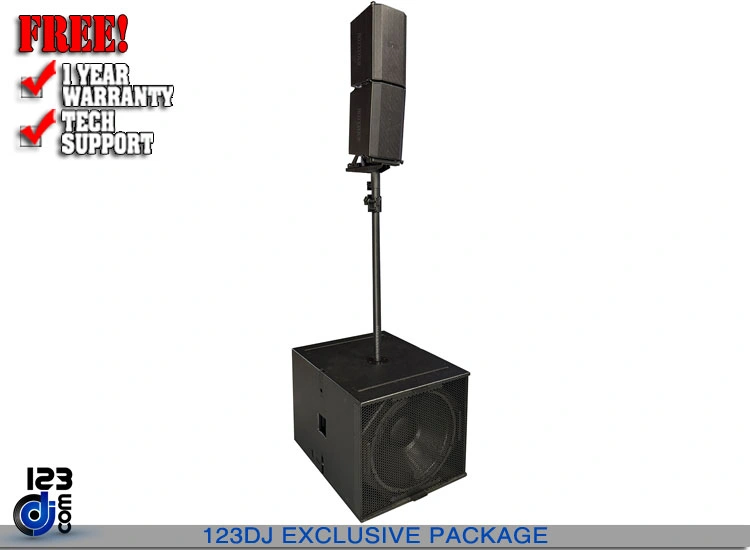

This Package Includes:

• (1) Avante Imperio Pro IMP205
• (1) Avante Imperio IMP118
• (1) Adjustable Pole
