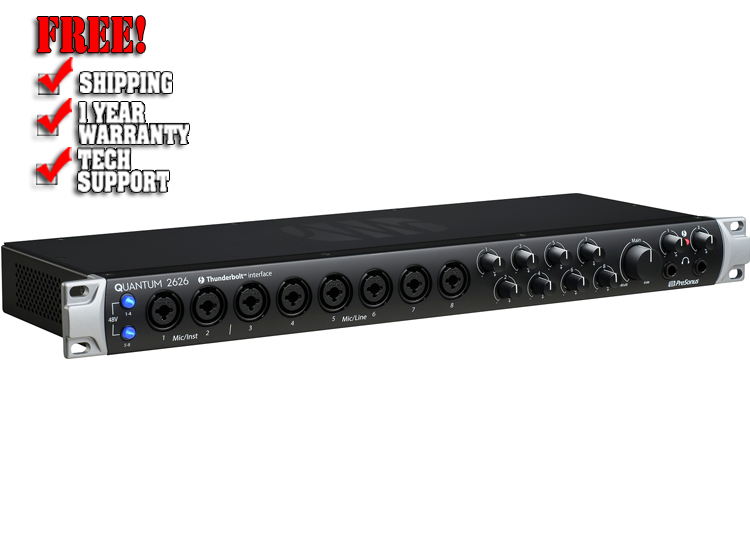

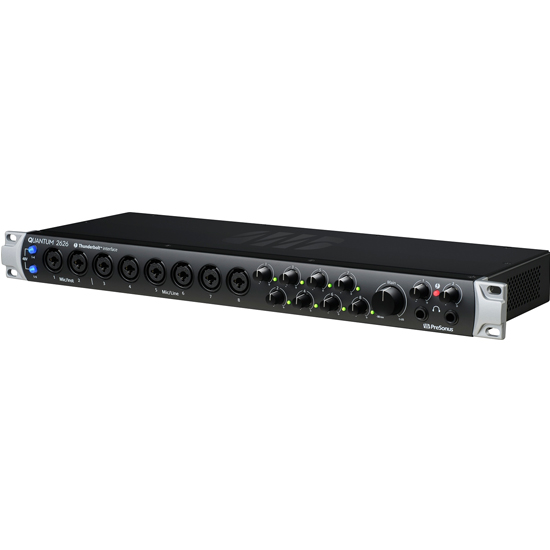

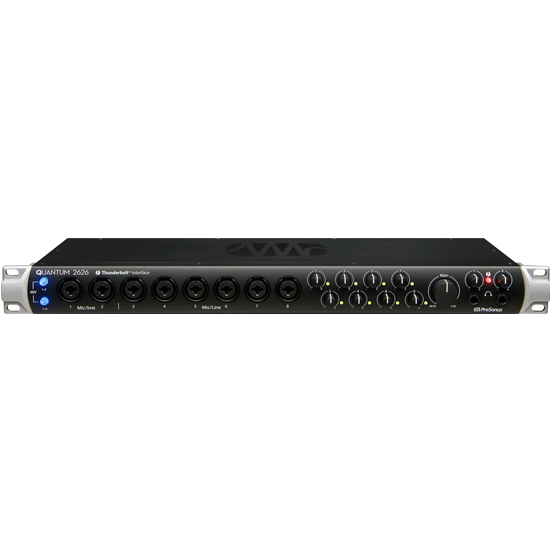

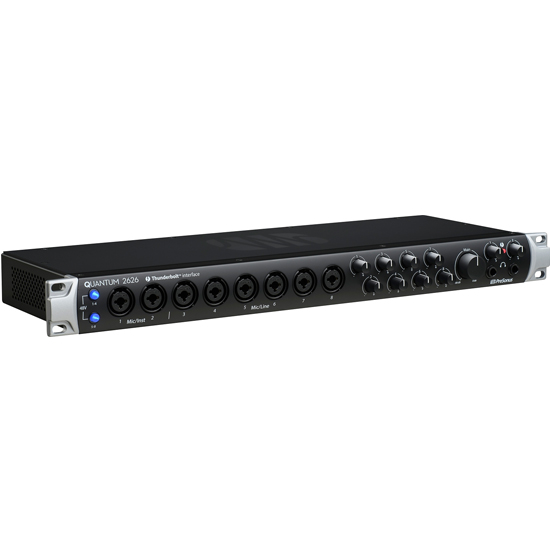

PreSonus Quantum 2626

With the included PreSonus Studio One™ Artist DAW and Studio Magic Software Suite, the Quantum 2626 is a complete recording solution. The interface also is compatible with virtually any recording software for macOS or Windows. Free PreSonus UC Surface control software provides access to full metering and an integrated real-time analyzer (RTA).

The Quantum 2626 comes with PreSonus® Studio One™ Artist and the Studio Magic Software Suite for a complete recording solution. Studio One offers unlimited tracks and plug-ins and is easy to learn and use. Studio Magic includes over $1,000 USD of plug-ins, loops, virtual instruments, effects and tutorials.

PreSonus®' famed XMAX Class A preamps have no crossover distortion and deliver pure, clear, musical results. They run on high-voltage power rails to deliver more headroom, deeper lows, smoother highs and a richer overall sound. We only use discrete components for accuracy and transparency - not op-amps that can add noise, coloration and harshness.

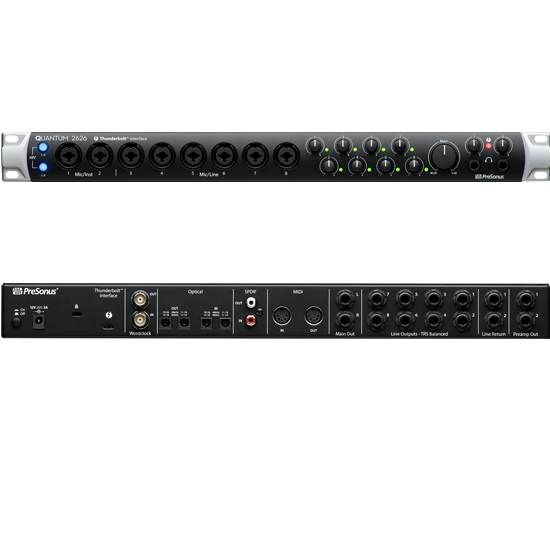

The Quantum 2626 provides two combo mic/instrument inputs (with direct outs and returns for patching outboard gear) and six balanced mic/line inputs. Another 18 inputs and outputs are available via ADAT/dual SMUX and S/PDIF. Eight 1/4-inch TRS outputs are DC-coupled for sending control voltages, plus two Main outs, two headphone outs, and MIDI I/O.

Features

• 26x26 Thunderbolt 3 ultra-low-latency (as low as <1 ms roundtrip)
• 24-bit/192 kHz operation with high-quality 115 dB A/D/A converters
• Simultaneous I/O up to 26 inputs / 26 outputs (at 44.1 or 48 kHz)
• 2 mic/instrument inputs with preamp direct outputs with returns and 6 balanced mic/line inputs, all with PreSonus's famed XMAX preamps
• 2 balanced stereo main outputs with independent level control; 8 DC-coupled, balanced line outputs; and dual headphone outputs with independent level control
• ADAT Optical/Dual SMUX inputs/outputs: 16x16 channels at 44.1 or 48 kHz; 8x8 channels at 88.2 or 96 kHz
• Stereo S/PDIF coaxial input and output
• MIDI I/O and BNC word clock I/O with low-jitter clocking
• PreSonus® Studio One™ Artist and Studio Magic Software Suite included
• 1U rack-mountable, with all-metal chassis and metal knobs

Specifications:

• Electronics
  • Voltage : 120V
  • Inputs : 1/4" TRS Female, Stereo, Unbalanced
• Microphone Preamp
  • Total Harmonic Distortion < 0.005% (1 kHz, Minimum Gain)
  • Gain Control Range : 60 dB
  • Microphone Preamp Maximum Input Level : +10 dBu (Balanced, Minimum Gain)
  • Phantom Power : +48V, > 8 mA per input
  • Frequency Response : 20 Hz to 20 kHz (±0.15 dB, Unity Gain, 48 kHz)
  • Microphone Preamp Input Impedance : 1.6 kΩ
  • Dynamic Range : > 110 dB (A-Weighted, Minimum Gain)
  • Equivalent Input Noise : < -131 dBu (Maximum Gain, 40Ω, 22 kHz BW, A-Weighted)
• Main and Line Outputs
  • Main And Line Outputs Maximum Level : +18 dBu (Balanced)
  • Main And Line Outputs Frequency Response : 20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz)
  • Main And Line Outputs Total Harmonic Distortion : < 0.0035% (1 kHz, +4 dBu)
  • Main And Line Outputs Dynamic Range : > 118 dB (A-Weighted)
  • Main And Line Outputs Output Impedance : 51Ω
• Digital Audio
  • Digital Audio Dynamic Range : 115 dB (A-Weighted)
  • Digital Audio Bit Depth : 24 Bits
  • Supported Sample Rates : 44.1, 48, 88.2, 96, 176.4, 192 (kHz)
• Miscellaneous
  • Connection Type : 12 VDC, External Power Supply
  • MIDI I/O : Dual 5-Pin Female DIN
• Line Inputs
  • Line Inputs Maximum Level : + 18 dBu (Balanced, Minimum Gain)
  • Line Inputs Frequency Response : 20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz)
  • Line Inputs Dynamic Range : > 118 dB (A-Weighted, Minimum Gain)
  • Line Inputs Total Harmonic Distortion : < 0.005% (1 kHz, Minimum Gain)
  • Line Inputs Impedance : 10 kΩ
• Headphone Outputs
  • Headphone Outputs Maximum Output : 175 mW/Channel (56Ω Load)
  • Frequency Response : 20 Hz to 20 kHz, +/-0.5 dB
  • Dynamic Range : > 110 dB (A-Weighted)
  • Total Harmonic Distortion : < 0.03% (1 kHz)
  • Headphone Outputs Impedance Working Range : 16Ω to 300Ω
