Pioneer PLX-1000 + Ortofon OM Q.Bert Cartridge Bundle

Package Includes

• Pioneer PLX-1000
• Ortofon OM Q.Bert

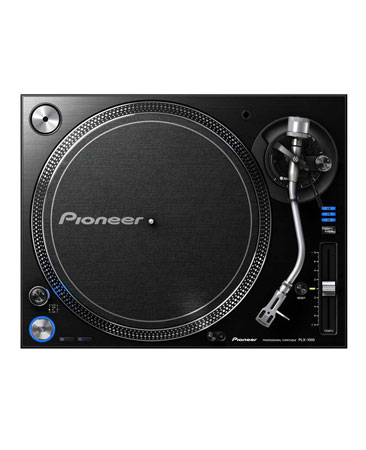

Pioneer PLX-1000

The DJ quality PLX-1000 direct drive analog turntable is designed for DJs who enjoy the look, feel, and performance of vinyl for music playback. The model offers a highly familiar, user-friendly control layout, high-torque direct drive mechanism, and exceptional audio playback quality. Combine the PLX-1000 with a Pioneer professional series DJM mixer for an ideal system for true vinyl enthusiasts.

User-Friendly Control Layout

The PLX-1000 provides a user friendly layout familiar to top DJs of the past and present, providing quick tempo control capability on the right side of the player, start/stop button on the left side, and a high-torque platter with a lighted speed guide

High-Torque Direct Drive System

The direct drive mechanism of the PLX-1000 provides high-torque resulting in stable rotation and exceptional control. The turntable can achieve a starting torque of at least 4.5kg/cm and can reach its fixed rotation speed within 0.3 seconds (at 33 1/3 rpm).

Sound Quality Design

To create an extremely stable player and prevent vibration, Pioneer utilized a heavy-mass zinc die-cast chassis for the top section of the player, reinforced with a bottom section made of 8-mm thick resin. The base of the unit was further enforced with 9-mm thick vibration-damping material that results in extremely stable playback. The tone arm also received great attention in build quality and design to maximize performance, using rubber insulation to minimize howling effects during audio playback. The RCA jacks feature gold-plated machine-cut parts for low impedance for excellent sound quality output.

Tempo Control

The player provides a range of tempo adjustments from ±8% and ±16% to ±50%, giving users a range of pitch speeds. A "RESET" button for tempo sits next to the tempo slider for instant ±0% fixed rotation speed.

Detachable Power And Audio Cables

The PLX-1000 is built with a detachable power and audio cable connection for increased convenience, especially at times when the unit is being moved around. Users are also able to interchange cables to further customize the sound quality.

Features:

Pioneer PLX-1000

• Power Requirements : AC 110-120V/220-240V, 50 Hz/60Hz
• Power Consumption : 9W
• Output : RCA x 1
• Main Unit Weight : 28.88 lbs.
• Maximum Dimensions : 17.83" (W) x 6.25" (H) x 13.89" (D)

Turntable

• Drive Method : Quartz lock serve type direct drive
• Wow and Flutter : 0.1% or less WRMS (JIS WTD)
• Motor : 3-phase brushless DC motor
• S/N Ratio : 70dB (DIN-B)
• Braking System : Electronic brake
• Turntable : Aluminum die-casting diameter: 13.07"
• Rotation Speed : 33-1/3rpm, 45rpm
• Starting Torque : 4.5kg-cm or more
• Rotation Speed Adjustment Range : ±8%, ±16%, ±50%
• Start Time : 0.3 seconds (at 33 1/3rpm)

Tone Arm

• Arm Type : Universal type S-shape tone arm, gimbal-supported type bearing structure, static type balance
• Tracking Error : Within 3°
• Effective Length : 9.05"
• Arm Height Adjustment Range : 0.23"
• Overhang : 0.59"
• Stylus Pressure Variable Range : 0oz to 0.14oz (1 scale 0, 0.03oz)

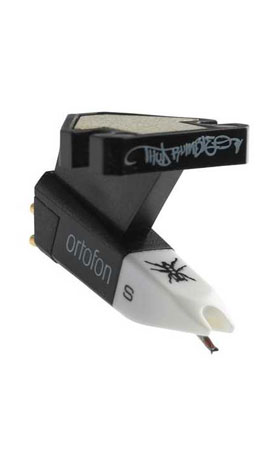

OM Q.Bert for scratch and back-cueing

Turntablists and mix DJs alike will appreciate the strong output of this cartridge, coupled with unrivaled tracking ability and sonic characteristics. The Q.Bert features a more subdued high end, which helps to minimize surface noise from worn vinyl, and an accentuated mid-range to help bring scratching to the front of the soundstage.

The Q-Bert has a supreme ability to trace the grooves of your records and it is tailored specifically for scratch. Due to its enormous output, it is perfect for scratch of all music with deep bass frequencies.

Features:

• High tracking ability, unsurpassed handling
• Ultra high output!
• Low wear characteristics that literally put it in a class of its own
• Stylus Type: Spherical
• Tracking Force: 3.0 g
• Output Voltage: 11 mV

SPECIFICATIONS

• Output voltage at 1000Hz, 5cm/sec: 11 mV
• Channel balance at 1kHz : 1,5 dB
• Channel separation at 1kHz : 22 dB
• Frequency range at -3dB : 20-18.000 Hz
• Tracking ability at 315 Hz at recommmended tracking force : 980 μm
• Compliance, dynamic lateral : 12 μm/m N
• Stylus type : Spherical
• Stylus tip radius : R 18 μm
• Tracking force range : 2 - 4 g
• Tracking force recommended : 3 g
• Tracking angle : 20°
• Internal impedance, DC resistance : 1.680 Ohm
• Internal inductance : 920 mH
• Recommended load resistance : 47 kOhm
• Recommended load capacitance : 200-400 pF
• OM cartridge weight incl. extra weight : 5 g
