QSC CP12 CP Series Compact 12" Powered Loudspeakers with 12" Powered Subwoofer Package

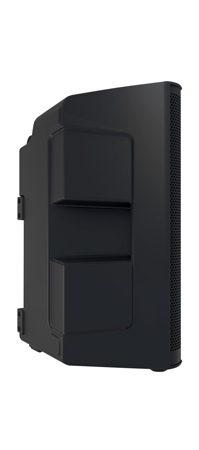

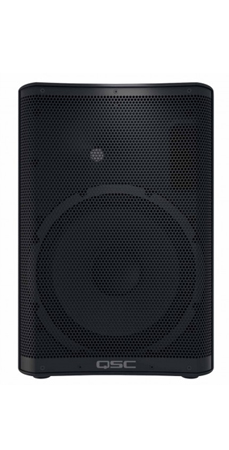

QSC CP12 CP Series 1000 Watt Compact 12" Powered Loudspeaker Features:

• Compact and powerful performance.
• 1000 Watt peak power Class-D amplifier module.
• Easily selected contours for commonly-used applications.
• Advanced DSP with Intrinsic Correction for superior sound quality and speaker protection.
• Directivity Matched Transition (DMT) for consistent frequency response across the entire coverage area.
• Light weight and highly portable.
• Professional appearance looks great in any application.
• Use for main PA, stage monitor, or instrument amplifier.
• 35 mm pole socket.
• Optional yoke, tote, and outdoor cover accessories.
• Complete EASE and CAD information available online.

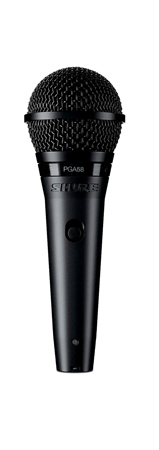

The PGA58 is a professional quality vocal microphone with an updated industrial design that features a black metallic finish and grille offering an unobtrusive visual presence. Legendary Shure quality construction ensures exceptional performance in rigorous environments.

Shure PGA58 Features:

• Handheld microphone for lead and backup vocal performance.
• Tailored cartridge design for clear, natural-sounding vocal reproduction.
• Dynamic cartridge (does not require phantom power) with cardioid polar pattern.

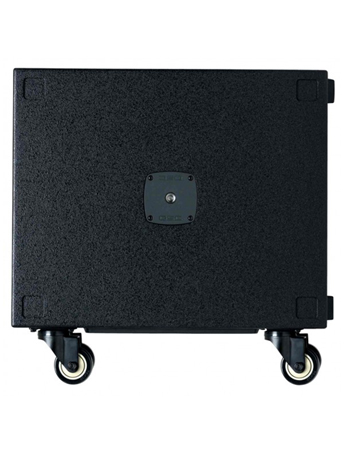

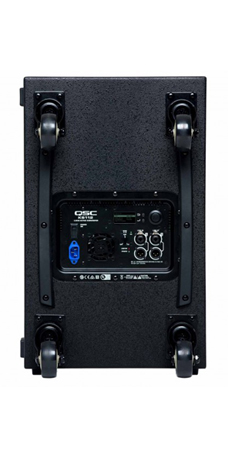

The KS112 is the perfect choice for anyone needing high output low-frequency extension in a highly compact and portable package. Powered by a 2000 watt class D amplifier module, KS112 features a single 12-inch transducer in a 6th order bandpass premium birch cabinet. On-board DSP provides variable crossover and savable/recallable Scenes for commonly-used applications while Intrinsic Correction tuning and loudspeaker management maximizes performance and protects the subwoofer's components. Two M20 threaded pole receptacles provide a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included). An optional KS-LOC security cover prevents unauthorized tampering of controls. Rugged, low-noise casters are included. Musicians, bands, mobile DJs, system integrators and AV rental/production professionals alike will appreciate the performance of the KS112 in a wide variety of applications - particularly when paired with TouchMix Series mixers, further optimizing KS Series performance, or as a complement to K.2 Series loudspeakers. Global 6-year warranty with product registration.

QSC KS112 12" Powered Subwoofer Features at a Glance:

• High Output in an ultra-compact form factor.
• 2000 Watt class D amplifier module.
• 12-inch, long-excursion driver; 6th order bandpass design.
• Variable crossover and savable/recallable Scenes for commonly-used applications.
• Intrinsic CorrectionTM tuning and loudspeaker management.
• Refined, professional appearance looks great in any application.
• Rugged painted wood enclosure for long life and lasting durability.
• Deployment in either vertical or horizontal positions with dual M20 speaker pole fittings.
• Optional KS-LOC security cover prevents unauthorized tampering of controls.
• Complete EASE & CAD information available online.

QSC CP12 Specifications:

• Configuration: Two-way active loudspeaker
• LF Transducer: 12 in (305 mm), cone
• HF Transducer: 1.4 in (35.6 mm) compression driver
• Frequency Response (-6 dB): 49 - 20 kHz
• Frequency Range (-10 dB): 47 - 20 kHz
• Nominal Coverage Angle: 75° Axisymetric
• Maximum Rated SPL: 126 dB
• Amplifier: Class D
• Peak: 800 W (LF), 200 W (HF)
• Controls: Power
• 2 x Gain
• Mic Boost Push Switch
• 6-way Contour Selection Switch
• Indicators: Power LED
• 2 x Input Signal LED
• Input B MIC selected LED
• Limiter active LED
• Connectors: 2 x locking XLR/F ¼" combo (Line Input and Mic/Line input)
• 1 x 3.5 mm TRS (Stereo Input)
• 1 x XLR/M (Mix Output)
• 1 x IEC power connector
• AC Power Input: Universal power supply 100 - 240 VAC, 50 - 60 Hz
• AC Power Consumption 1/8th Power: 100 VAC, 0.75A / 120VAC, 1.0A / 240VAC 0.31A
• Enclosure Material: Polypropylene
• Attachment Points: M10 threaded insert
• Color: Black (RAL 9011)
• Grille: 18 Gauge powered coated steel
• Dimensions (HxWxD): 20.3 x 13.8 x 12.7 in
• 516 x 350 x 323 mm
• Net Weight: 30.3 lbs (13.7 kg)
• Shipping Weight: 36.3 (16.5 kg)
• Regulatory: EMC, UL, CB
• Optional Accessories: CP12 Tote, CP12 Outdoor Cover, CP12 Yoke

Venom Solutions SF20XLR-BLUE Cable Specifications:

• Connectors: Neutrik XLR3F to XLR3M
• Conductors: 20 AWG x 2 OFC
• Shield: 95% OFC Braid

Venom Solutions SF10XLR-BLUE Cable Specifications:

• Connectors: Neutrik XLR3F to XLR3M
• Conductors: 20 AWG x 2 OFC
• Shield: 95% OFC Braid

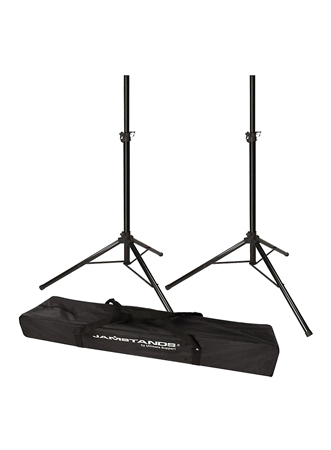

Ultimate Support JS-TS50-2 Specifications

• Product Name: JS-TS50-2
• Part Number: 17318
• Height: 46.5" - 81.5"
• Base Diameter: 47"
• Load Capacity: 120 lbs.
• Telescoping Tube: 1 3/8" (35mm)
• Weight (Per Stand): 4.2 lbs.

Shure PGA58 Specifications

• Frequency Response 50 - 16,000 Hz
• Phantom power required? No
• Polar Pattern Cardioid
• Type Dynamic

QSC KS112 12" 1000W Ultra Compact Powered Subwoofer Specifications:

• Enclosure Details
• Configuration: 6th-Order Bandpass Subwoofer
• LF Transducer: 12-inch (305 mm), Cone
• Frequency Response (-6 dB): 41 Hz - 108 Hz
• Frequency Range (-10 dB): 38 - 121 Hz
• Maximum Rated SPL1: 128 dB @ 1 m (peak)
• Amplifier: Class D 2000 W (peak)
• Cooling: Low-noise, variable speed fan
• Controls: Power On/Off
• Gain Control: Gain Control
• Rotary encoder
• 2 x selection buttons
• Indicators: 2 x Power LED (front and rear)
• Input Signal LED
• Limiter active LED
• Connectors: 2 x locking XLR/F ¼" combo
• 2 x XLR/M (Loop-thru Output)
• 1 x locking IEC power connector
• AC Power Input: Universal power supply 100 - 240 VAC, 50 - 60 Hz
• AC Power Consumption: 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A
• Enclosure: 15 mm Birch Plywood
• Color: Black (RAL 9011)
• Grille: Internal woofer cover
• Dimensions (HxWxD): 24.5 x 15.5 x 24.25 inches / 622 x 394 x 616 mm
• Net Weight (including casters): 28.4 kg (62.6 lbs)
• Shipping Weight: 34.5 kg (76 lbs)
• Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
• Included Accessories: 4 x Low-Noise, Heavy Duty Casters
• Optional Accessories: KS112 Cover, KS-LOC Lock-Out Cover SP-16X Extension Pole, SP-36 Extension Pole

What's in the Box

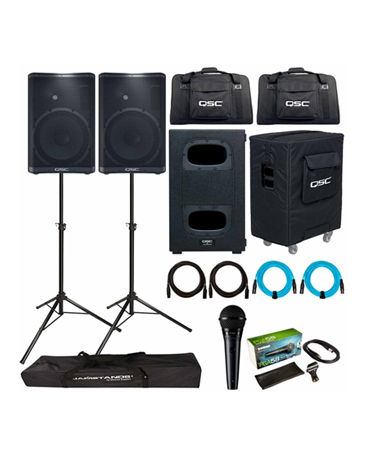

This Package Includes:

• (2) QSC CP12 CP Series 1000 Watt Compact 12" Powered Loudspeakers

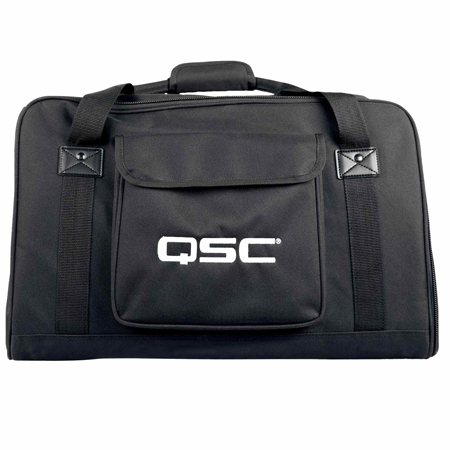

• (2) QSC CP12 Tote Padded Tote Bags for the CP12 Compact 12" Powered Loudspeakers
• (2) 20FT Sure-Fit XLR Connecting Cables
• (2) Venom Solutions 20' Blue Sure-Fit XLR to XLR Connecting Cables [SF20XLR-BLUE]
• (2) Hook & Loop Cable Straps
• (1) 10FT Sure-Fit XLR Connecting Cable
• (1) Venom Solutions 10' Blue Sure-Fit XLR to XLR Connecting Cable [SF10XLR-BLUE]
• (2) Hook & Loop Cable Straps
• (2) Ultimate Support JS-TS50-2 Tripod Speaker Stands
• (1) FREE Durable Speaker Stand Carry Bag

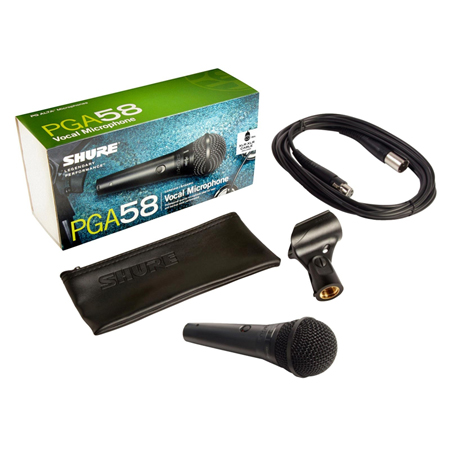

• (1) Shure PGA58 Cardioid Dynamic Vocal Microphone
• (1) Microphone Clip
• (1) Zipper Carry Pouch
• (1) XLR-to-XLR Cable
• (1) User Guide
• (1) QSC KS112 12" 1000W Ultra Compact Powered Subwoofer
• (1) Locking IEC AC Power Cord
• (1) QSC Limited Warranty Information Card
• (1) KS112 Quick Start Guide
• (1) Powered Loudspeaker Safety Sheet
• (1) QSC KS112-CVR Padded Subwoofer Cover for KS112
