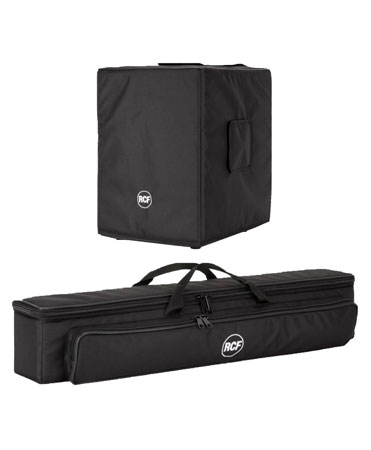

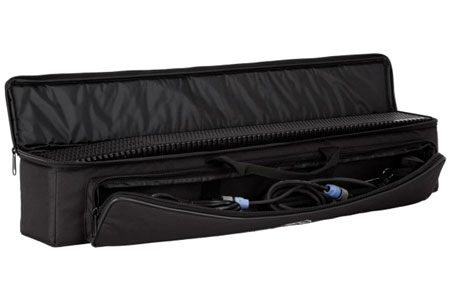

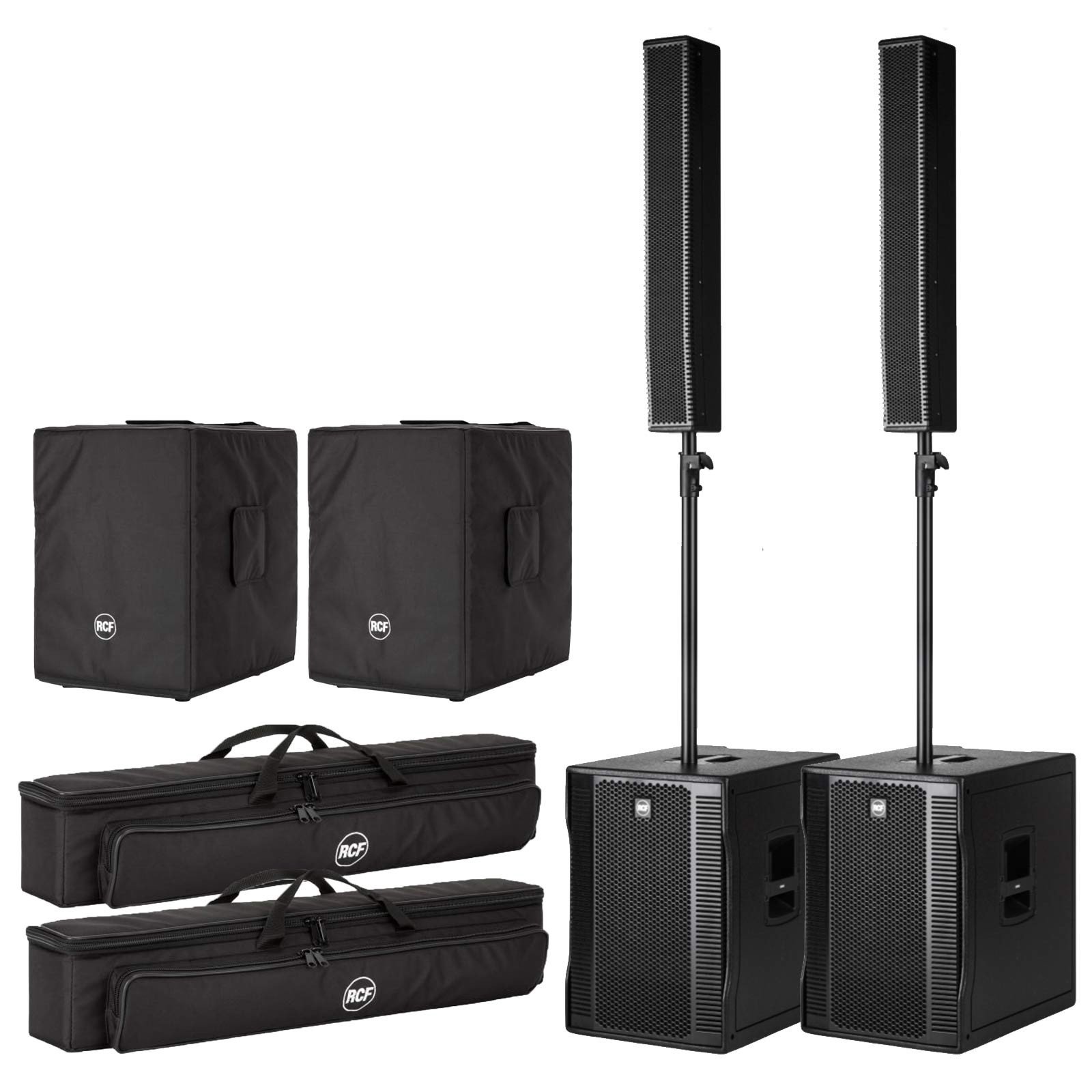

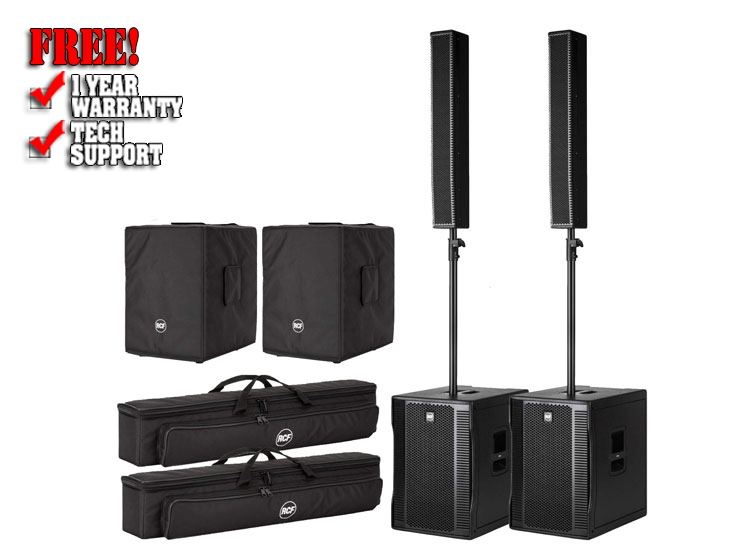

Evox 12 Two Pack with Bags

RCF EVOX 12 Active Portable 2-Way Array PA System

EVOX 12 is the most powerful line-source in its class and offers a particularly profound and dynamic reproduction at high levels due to the built-in 1400W power amplifier.

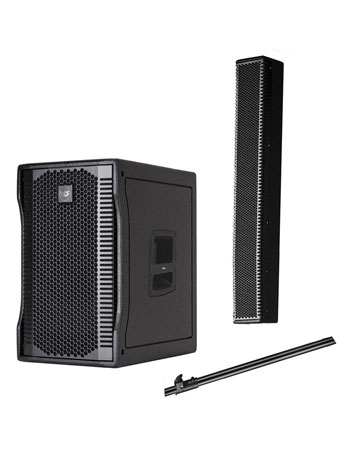

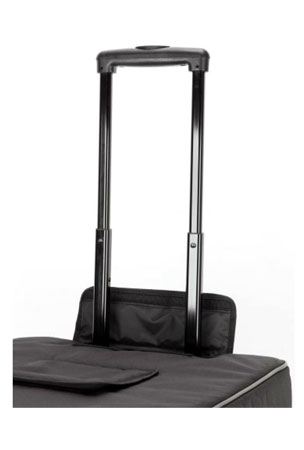

The top section has eight high performance neodymium 4 "full-range transducers with a phase plug. As a result, the EVOX 12 has a significantly increased low-mid playback at a constant level with a wide dispersion for the highs. The 15" subwoofer delivers powerful bass sound to reinforce a big party or the kick drum of a live band. Despite high performance, the enclosure is very compact, and thanks to integrated wheels and extendable handle very easy to transport.

EVOX 12 Features:

• 1400 Watt
• 130 dB max SPL
• 40 Hz 20 kHz frequency response

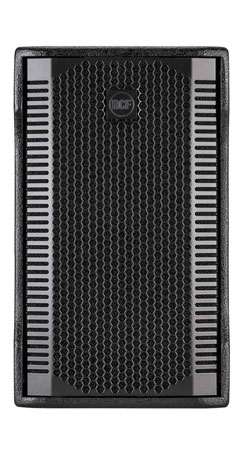

• 15" Woofer

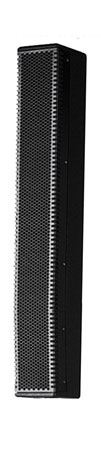

• 8 x 4" neodymium full-range woofer
• 90° x 30° slightly tilted pattern control
• Innovative DSP processing

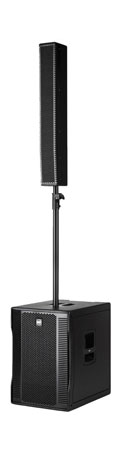

• Pole mountable, easy set-up and transportation

EVOX 12 Applications:

• DJs
• Corporate events
• Presentations
• Performers

Technical Specification

RCF EVOX 12 Specifications

Acoustical Specifications

• Frequency Response -3 dB: 40 Hz ÷ 20 Hz
• Max SPL: 130 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 30°
• Fullrange: 8x4.0", 1.0"v.c.
• Woofer: 15", 3.0" v.c.

Input/Output Section

• Input connectors: Jack-XLR male
• Output connectors: XLR female
• Input sensitivity: -2 dBu / + 4 dBu

Processor Section

• Crossover frequencies: 180 Hz
• Protections: thermal, rms
• Limiter: Soft limiter
• Controls: Volume, EQ

Amplifier Specifications

• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Cooling: Convection
• Connections: VDE connector

Cabinet

• Cabinet Material: Baltic birch plywood
• Handles: 2 side, 1 top
• Pole Mount/Cap: Yes
• Colour: black

Physical Specifications

• Height: 2220/87.4 mm/inch
• Width: 410/16.14 mm/inch
• Depth: 560/22.05 mm/inch
• Net Weight: 34.8/76.72 kg/lbs
