American DJ Focus Spot Three Z 1.5m Truss Towers Package

Overview

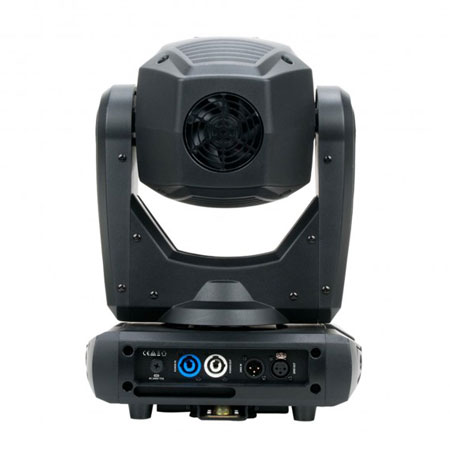

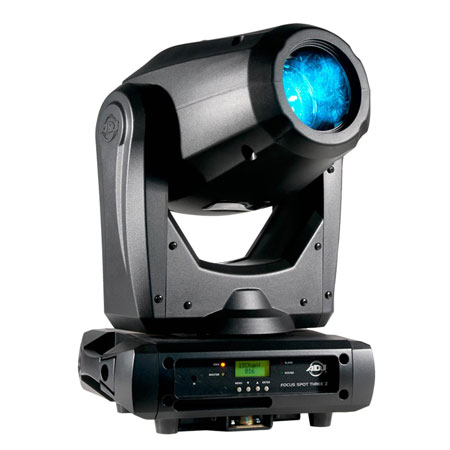

American DJ Focus Spot Three Z 100W LED Moving Head Spot with Motorized Focus

The ADJ Focus Spot Three Z is a 100W LED Moving Head with motorized focus and motorized zoom allowing for a variable beam angle from 12 ~ 17Âdegrees. In addition, ADJ has fitted the Focus Spot Three Z with one rotating GOBO wheel, one fixed GOBO wheel and one color wheel, letting users generate unique patterns and effects in a series of vibrant hues. There are two 6-facet prisms (one circular and one linear), enabling spellbinding multi-beam effects capable of filling wide spaces with color and movement.

The Three Z is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a professional LED spot Moving Head. It has 18 & 21 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, 3-pin DMX I/nOut, PowerCon In/Out power connectors, and a 4-Button DMX LCD menu with 180-degree inverse view mode.

Focus Spot Three Z Features:

• High Output 100W LED Moving Head spot with motorized zoom.
• Motorized Zoom: 12 ~ 17-degree beam angle.
• 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled.
• 4 Built-in lighting shows.
• Electronic Dimming: 0% - 100%.
• Electronic Strobe/Pulse effect; random strobe slow to fast.
• 5 Dimming Curves.
• Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together.
• Motorized Focus.
• Fast Pan Tilt Movement.
• Gobo Shake effect.
• Two 6-facet rotating prism effects (circular & linear).
• 16-Bit Fine Pan/Tilt control.
• Stepper motors with micro stepping.
• 3-pin XLR In/Out.
• 4-Button DMX LCD menu with 180° Inverse View mode.
• Includes Omega bracket for truss mounting.
• Fan cooled.

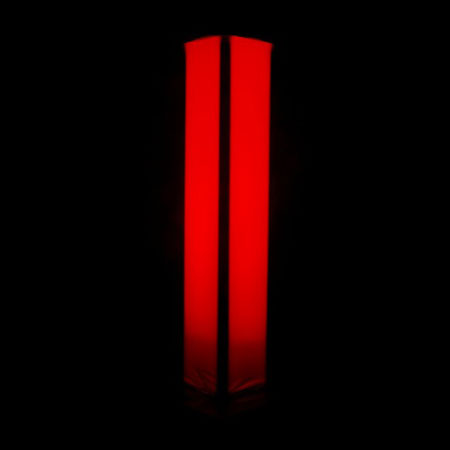

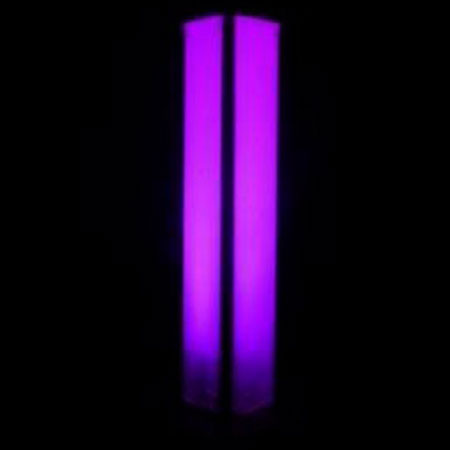

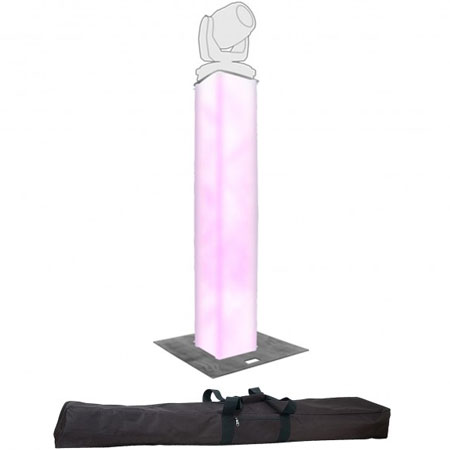

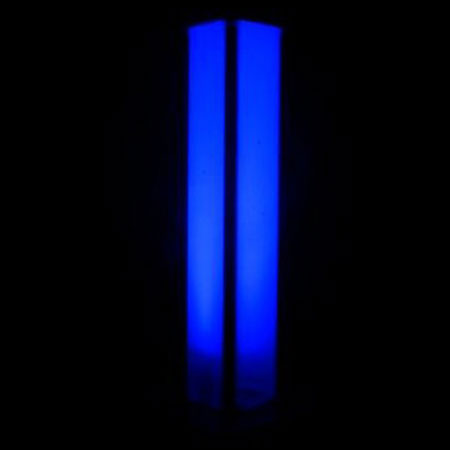

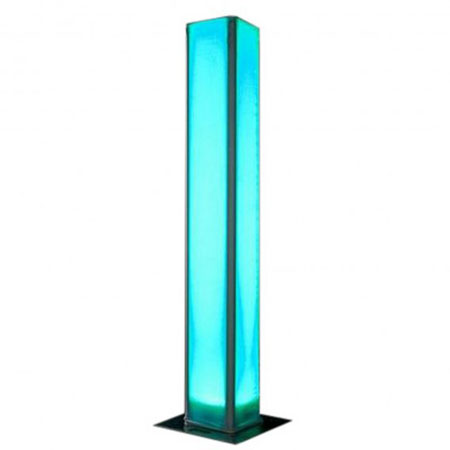

Trusst Glo Totem 1.5m Truss Lighting Tower with Scrim Cover

Glo Totem 1.5 is an all-in-one kit for the mobile entertainer. The 1.5 m tall system includes 4 tubes, top and bottom plates, fire retardant scrim, carry bag for tubes, and all connecting hardware. Made of lightweight aluminum for easy transportation, setup, and breakdown, it assembles with the same conical connection system as other Trusst products.

Stress free assembly with no screws or tools to lose, additional mounting holes for lighting fixtures, and convenient integrated carrying handles in the bases make this a perfect addition to your rig.

Glo Totem 1.5 Features

• All-in-one Glo Totem kit for the mobile entertainer.
• Made of lightweight aluminum for easy transportation, setup, and breakdown.
• Assembles with the same conical connection system as other Trusst products.
• No screws or hex keys to lose for stress-free assembly.
• Additional bolt holes on top plate for secure attachment of lighting fixtures.
• Built-in carrying handles in the bases make transportation a breeze.
• Scrim is manufactured with certified fire retardant material.
• Includes 4 tubes, top and bottom plates, scrim, carry bag for tubes, and all connecting hardware.

ADJ Airstream IR Transmitter 4 Pack

The Next Generation of Lighting Control
Universal infrared remote control App for a variety of ADJ lighting fixtures. Compatible with iOS devices (iPad & iPhone). Requires ADJ Airstream IR Adapter (sold separately). ADJ Airstream IR sensors sold separately in a pack of 4 from ADJ dealers.

The Airstream IR works alongside the convenient Airstream IR App on iOS Devices.

Airstream IR Features:

• Easy Control of Fixtures.
• Wireless! (No Cables).
• Download the Airstream IR App for free in the Apple App Store.
• When using the App and sensor, make sure headphone volume is turned all the way up.

American DJ Focus Spot Three Z Specifications

• Light Source: 100W High Output LED.
• Variable beam angle: 15 ~ 20-degree beam angle.
• 18 & 21 DMX channel modes.
• 8 Colors + Spot.
• 2 Independent Gobo Wheel's: Gobo Wheel 1 has 7 Static Gobo's + Spot; Gobo Wheel 2 has 6 Rotating Gobo's + Spot.
• Pan: 540-degree; Tilt: 220-degree.
• PowerCon AC In/Out on rear to daisy chain power (up to 3 Focus Spot Three Z's @ 120V and 6 Focus Spot Three Z's @ 230V ).
• Long Life LED (Rated at approximately 50,000 hrs).
• Multi-voltage Operation: 100-230V, 50Hz/60Hz.
• Power Consumption: 230W.
• Dimensions (LxWxH): 7.25"" x 11.25"" x 18.75""/ 185 x 284 x 479mm.
• Weight: 24 lbs. /11 kgs..

Chauvet Trusst Glo Totem 1.5 Specifications

• Length: 4.92 ft (1.5 m)
• Outer diameter tube: 2 in (50 mm)
• Size (Top Plate): 12 x 12 in (300 x 300 mm)
• Size (Base Plate): 24 x 24 in (600 x 600 mm)
• Base plate thickness: 0.23 in (6 mm)
• Tube wall thickness: 0.08 in (2 mm)
• Weight: 34.4 lb (15.6 kg)

ADJ Airstream IR Specifications

• Wireless control up to 15-20 feet.
• Sound Active.
• Black Out (Stand by).
• Full On.
• Fade / GOBO.
• Dimmer.
• Strobe.
• Color Change.
• Show Selection.

This Package Includes:
(2) American DJ Focus Spot Three Z 100W LED Moving Head Spot with Motorized Focus
(2) Trusst Glo Totem 1.5m Truss Lighting Towers with Scrim Covers
(2) 25' Sure-fit DMX connecting cables
(4) ADJ Airstream IR Transmitters
(2) Properly fitting & durable protective transport cases

Each Focus Spot Three Z Box Includes:

(1) ADJ Focus Spot Three Z
(1) PowerCON power cord
(1) Preinstalled omega mounting bracket
(1) User manual

Each Trusst Glo Totem 1.5 Box Includes:

(1) Trusst Glo Totem 1.5

The Totem is comprised of:
(4) Tube Segments
(1) Top Plate
(1) Tower Scrim Cover
(1) Free Carry Bag - For tubes and all connecting hardware
(1) Bottom / Base Plate

The Airstream IR Box Includes:
(4) ADJ Airstream IR iOS device 1/8' plug-in transmitters
