• Separate, field-replaceable DJ crossfaders for audio and video with linked mode operation and slope control
• 3-band EQ on each individual channel
• Mixing options include fades, 96 wipe patterns, and picture-in-picture capability
• Both Chroma Key (blue screen) and Luma Key (black screen) capability for superimposing images
• Two video effects sections with mosaic, strobe, freeze, paint, and invert
• Capable of multiple simultaneous effects
• Joystick control for wipes and picture-in-picture operations
• Seven background color options provided

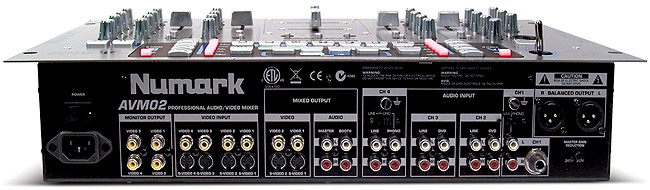

• Four video channels with four composite and four S-video inputs
• Two S-video, two composite main outputs, and four video monitor outputs
• Seven stereo inputs and two microphone inputs with audio cueing section
• Both 1/4" and 1/8" headphone outputs
• Provides master balanced, unbalanced, and control booth outputs
• Dimensions (LxWxH): 482.6 x 228 x 105mm
• Weight: 5Kgs
• Inputs
  • Line: 10Kohm input impedance; 80mV rms sensitivity for 0dBm output
  • Mic: 600ohm input impedance unbalanced; 1.7mV rms sensitivity for 0dBm output; 300mV rms max input
  • Phono: 47Kohm input impedance; 1.0mV rms sensitivity @1KHz for 1.22V output
• Outputs
  • Line: 7V RMS max
  • Headphone: 0.5W into 47 ohm
• Distortion: Less than 0.01%
• Signal to Noise Ratio (maximum output || JIS-A weighted)
• Line: Better than 90.dB
• Mic: Better than 88dB
• Phono: Better than 83dB
• Frequency Response
• Line: 20Hz-20KHz
• Mic: 20Hz-15KHz
• Phono:
  • Channel EQ
  • Bass: +12/-32dB @60Hz
  • Mid: +12/-32dB @1.2KHz
  • Treble: +10/-20dB @15KHz
• DJ Mic EQ
• Bass
• Treble
• Composite Video Input (4): 1.0 Vp-p 75-ohm NTSC (PAL/SECAM) composite signal
• Pin-Jack Y/C Video Input (4) Y signal: 1.0 Vp-p 75-ohm, Mini Din 4-pin connector
• C signal: 0.3 Vp-p 75 -ohm
• Composite Monitor output (4): 1.0 Vp-p 75-ohm
• Pin-Jack Composite Monitor output (2): 1.0 Vp-p 75-ohm
• Pin-Jacks Y/C Video output (2) Y signal: 1.0 Vp-p 75-ohm
• C signal: 0.3 Vp-p 75-ohm
