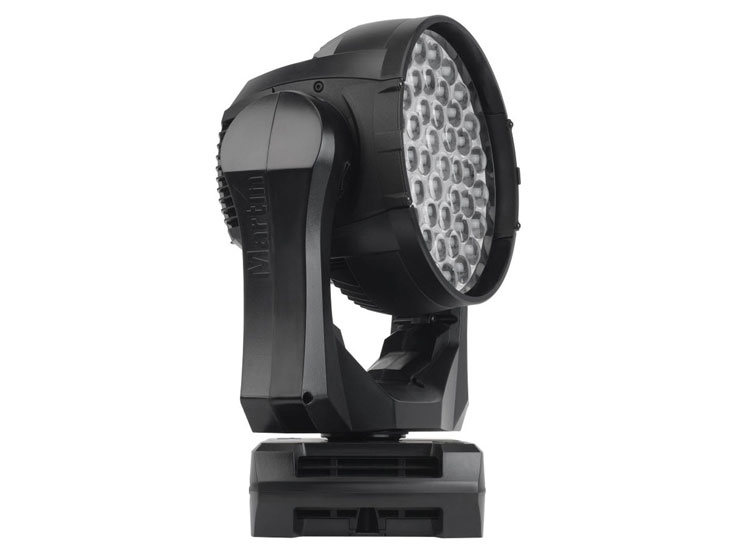

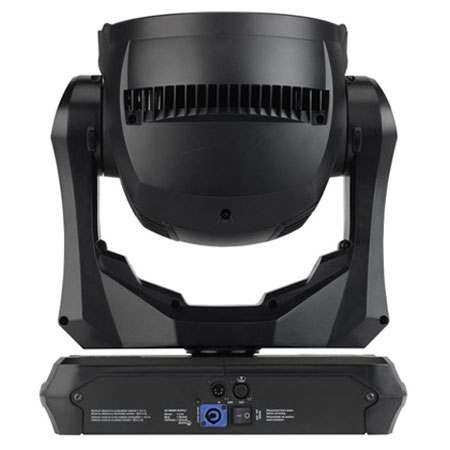

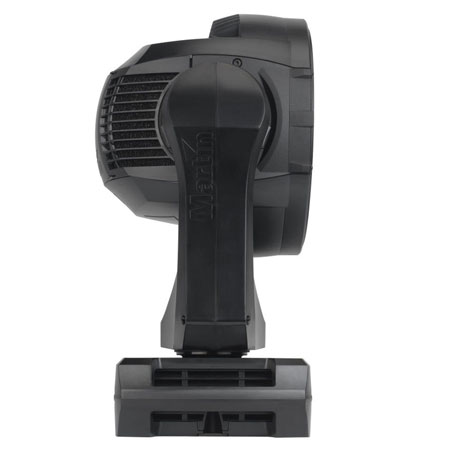

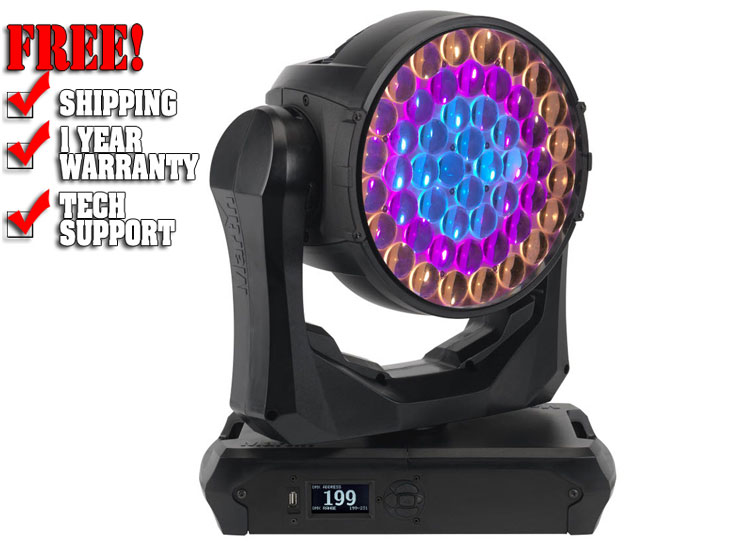

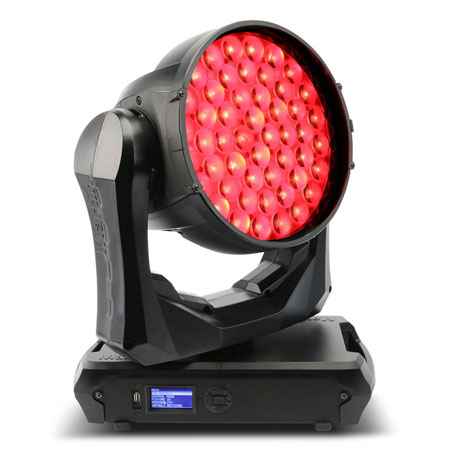

Martin MAC Quantum Wash Moving Head LED Light

Specifications

Dynamic Effects

• Color mixing: RGBW
• Beam effects: Beam twister, light and color morphing, color spin
• Color wheel effect: 36 solid colors plus white, variable–speed 'color wheel rotation' effect and random color
• Color ring effects: 36 split ring colors with variable–speed color wheel rotation effects
• Shutter effect: Electronic, with variable speed regular and random strobe
• Pre–programmed effects: Range of synchronized and independent color, intensity, beam twister and zone effects
• Electronic dimming: Four dimming curve options
• Color temperature control: Variable 2000 – 10 000 K
• Zoom: Motorized
• Pan: 540°
• Tilt: 270°
• Pan and tilt speed: Adjustable via onboard control panel and DMX

Control and Programming

• Control system: DMX
• Control options: Independent control of color ring/beam zones
• Macro programs selectable via DMX: Range of synchronized and independent color, intensity, beam twister and zone effects
• RDM: Implemented
• Control resolution: 8–bit, with 16–bit control of pan, tilt, dimming and lens rotation
• DMX channels: 33/14
• Setting and addressing: Control panel with backlit graphic display
• DMX compliance: USITT DMX512–A
• RDM compliance: ANSI/ESTA E1.20
• Transceiver: RS–485
• Fixture software update: USB memory device or USB/DMX hardware interface over DMX link

Optics

• Light source: 50 x 15 W RGBW LEDs
• Minimum LED lifetime: 50 000 hours (to >70% luminous output)
