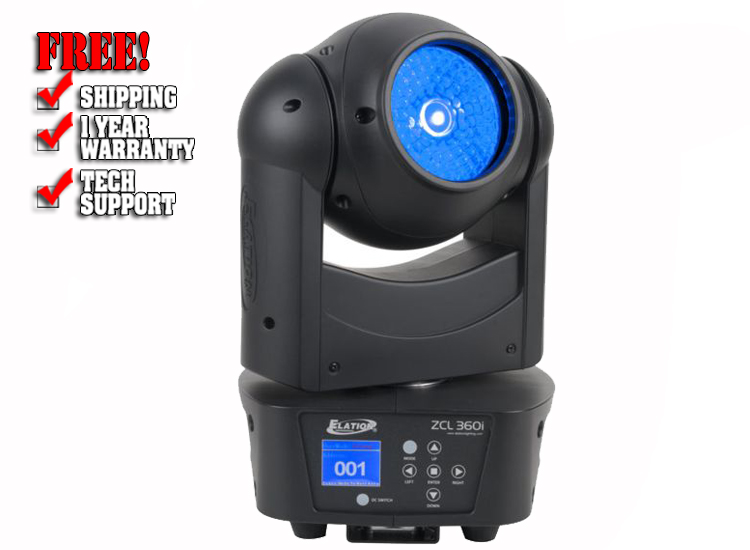

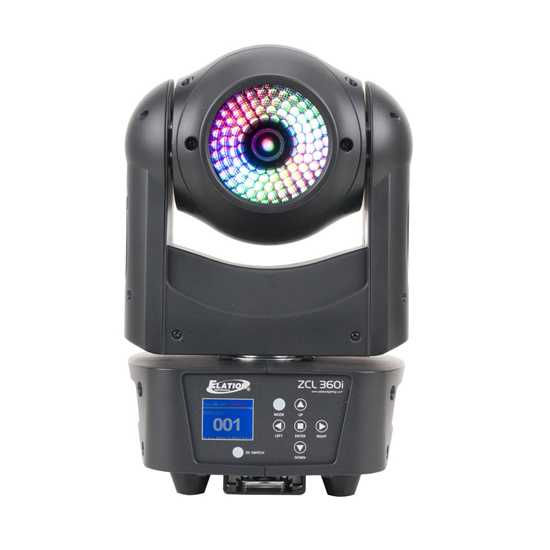

Elation ZCL 360i

Features

• Powerful 4° Single Beam Moving Effect Luminaire with Zoom
• 90W RGBW 4-in-1 LED
• 4° to 44° Motorized Zoom
• New Advanced Collimator Optic Lens
• Laser-Like Homogenized Color Changing Beam
• Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
• Flicker Free Operation for Broadcast TV and FILM

Specifications

SOURCE

• 90W RGBW 4-in-1 LED
• 100,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

• 11,123 LUX 1,033 FC @9.8' (3m) (4° Min Zoom) Full ON
• 483 LUX 45 FC @9.8' (3m) (44° Max Zoom) Full ON

COLOR

• RGBW

EFFECTS

• RGBW Color Mixing
• 4° - 44° Beam Zoom Range
• Variable Dimming Curves
• Electronic Strobe and Dimming (0% - 100%)
• 64 Color Presets and 14 Unique Color Macros

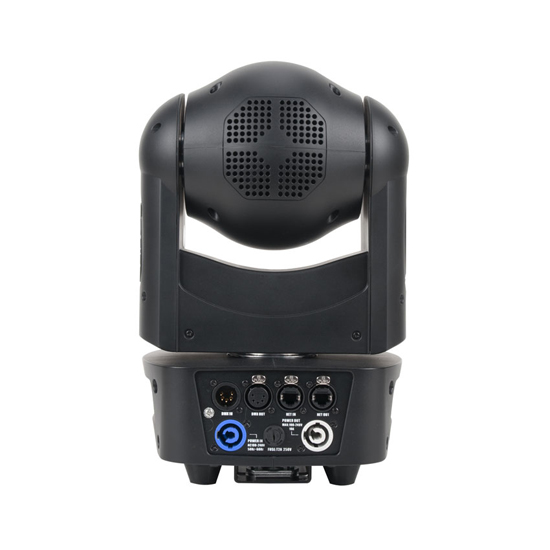

CONTROL / CONNECTIONS

• (3) DMX Channel Modes (21 Total Channels)
• RDM (Remote Device Management)
• (7) Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• 8 / 16 Bit Resolution Adjustable Movement
• 5pin XLR In/Out
• RJ45 etherCON In/Out (KlingNET™ / Art-NET)
• powerCON Power In/Out
• With Wired Digital Communication Network

SIZE / WEIGHT

• Length: 8.74" (222.1mm)
• Width: 7.31" (186mm)
• Vertical Height: 13.22" (336mm)
• Weight: 13 lbs. (5.9 kg)

ELECTRICAL / THERMAL

• AC 100-240V - 50/60Hz
• 101W Max Power Consumption
5F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS

• CE | cETLus | IP30
