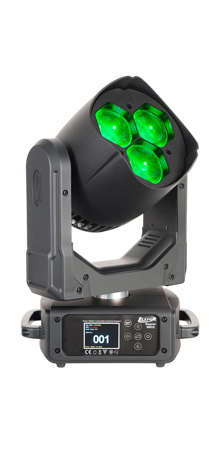

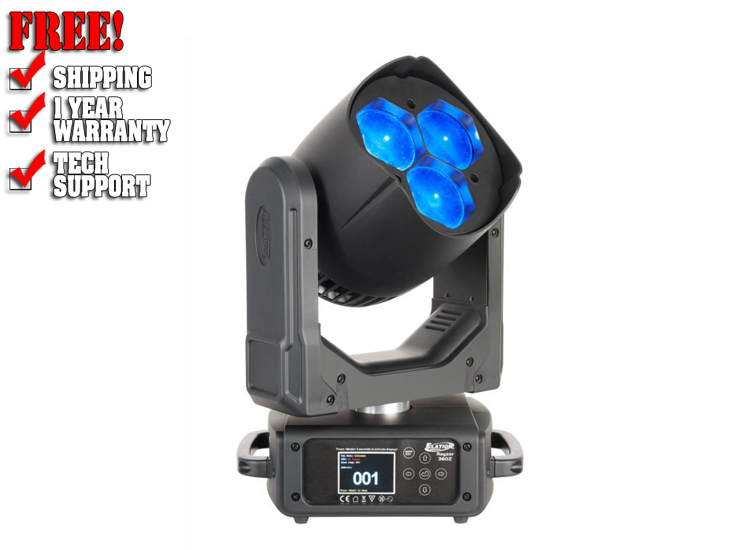

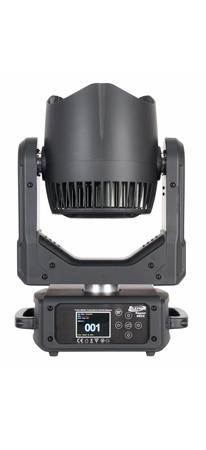

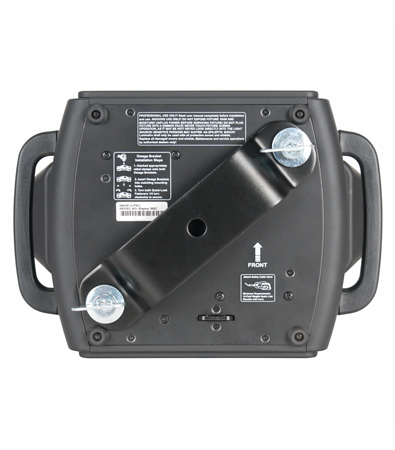

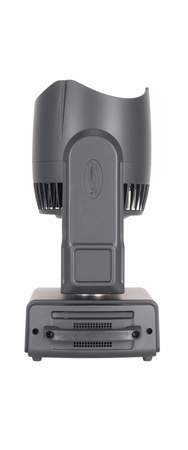

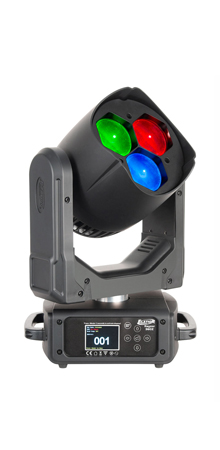

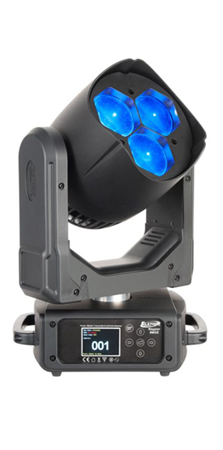

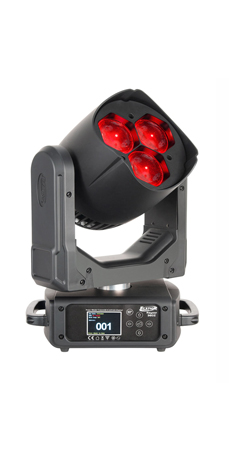

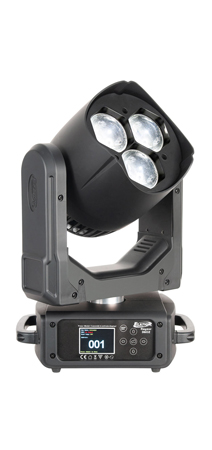

Elation RAYZOR 360Z

Features

• Compact Beam Moving Effect Luminaire with Zoom
• (3) 60W Osram™ RGBW LEDs
• 8° to 77° Motorized Zoom and Pixel Control
• Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
• Linear Color Temperature Presets (2,700 - 8,000K)
• Adjustable Refresh Rate Frequency and GAMMA
• DMX, RDM, Art-NET, sACN Support

Specifications

SOURCE

• (3) 60W Osram™ RGBW LEDs
• 50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

• 28,020 LUX 2,603 FC @6.6' (2m) (8° Min Zoom) Full ON
• 545 LUX 51 FC @6.6' (2m) (77° Max Zoom) Full ON

EFFECTS

• 8° - 77° Beam Angle Zoom
• Linear Color Temperature Presets (2,700 - 8,000K)
• RGBW Color Mixing and Pixel Control
• 8 Color Presets and 8 Chase Macros
• Electronic Strobe and Variable Dimming Curves

COLOR

• RGBW

CONTROL / CONNECTIONS

• (3) DMX Channel Modes (20 / 26 / 32)
• 360° Continuous Pan and Tilt Movement
• Adjustable Refresh Rate (900-25,000 (Hz)
• Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
• (6) Button Touch Control Panel
• 8 / 16 Bit Resolution Adjustable Movement
• Full Color 180° Reversible LCD Menu Display

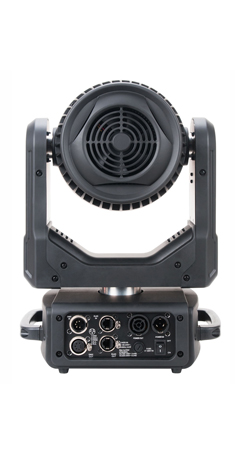

• 5pin XLR DMX In/Out
• RDM (Remote Device Management)
• RJ45 etherCON In/Out (Art-NET, sACN)
• powerCON TRUE1 Power In/Out
• With Wired Digital Communication Network

SIZE / WEIGHT

• Length: 11.0" (280.6mm)
• Width: 7.9" (199.5mm)
• Vertical Height: 16.6" (422.1mm)
• Weight: 17 lbs. (7.7 kg)

ELECTRICAL / THERMAL

• AC 100-240V - 50/60Hz
• 300W Max Power Consumption
• 5F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS

• CE | IP20
