Home > DJ Lighting > DJ Moving Heads > ELATION CUEPIX Batten 10 x 30W RGB COB LED Strip Light with Pixel Control

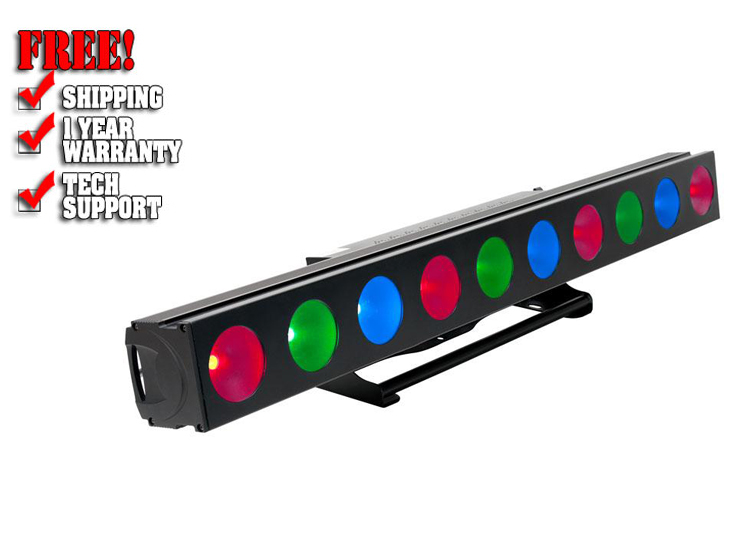

ELATION CUEPIX Batten 10 x 30W RGB COB LED Strip Light with Pixel Control
Regular Price $1399.98
Our Price $699.99
TWO YEAR FULL WARRANTY. ONLY $20 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details
Regular Price $79.99
Full Protection Only $40.00Regular Price $1399.98
Our Price $699.99
TWO YEAR FULL WARRANTY. ONLY $20 A YEAR FOR FULL PIECE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details
Regular Price $79.99
Full Protection Only $40.00
The ELATION CUEPIX Batten (CUE301) is a professional COB linear strip light wash effect fixture featuring 10 x 30W RGB COB LEDs, and is part of the Elation CUEPIX Series The new CUEPIX Batten features (10) long life 30W 3-in-1 RGB COB LEDs, 100,000 average hour LED life, 82 beam and 106 field angles, individual control of each COB module, variable dimming curve modes, strobe and chase effects, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated rigging bracket, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 312W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).
FEATURES82° Beam 106° Field Angles
ArtNet™ and Klingnet™ Support
RDM - Remote Device Management
Individual COB Module Control
Variable Dimming Curve Modes
Multiple Unit Power Linking
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
SOURCE
(10) 30W 3-in-1 COB LEDs
100,000 Hour Average LED Life
PHOTOMETRIC DATA
3,890 LUX 361 FC @3.3’ (1m) (82° Full ON)
1,237 LUX 115 FC @6.6’ (2m) (82° Full ON)
613 LUX 57 FC @9.8’ (3m) (82° Full ON)
345 LUX 32 FC @13.1’ (4m) (82° Full ON)
227 LUX 21 FC @16.4’ (5m) (82° Full ON)
EFFECTS
Strobe and Chase Effects
Individual COB Module Control
Variable and Selectable Dimming Curves

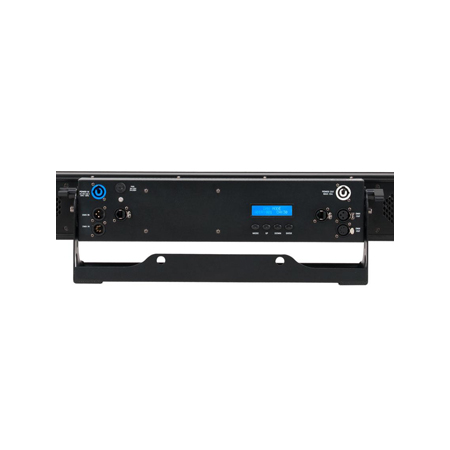

CONTROL / CONNECTIONS
8 DMX Channel Modes (3 / 4 / 6 / 9 / 30 / 33 / 36 / 60)
4 Button Control Panel and LCD Menu Display
ArtNet™ + KlingNet™ Protocol Support
RDM (Remote Device Management)
(2) RJ45 Ports
3pin and 5pin DMX In/Out
powerCON Power In/Out
SIZE / WEIGHT
Length: 43.3” (1100mm)
Width: 6.4” (121mm)
Vertical Height: 6.8” (172mm)
Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
312W Max Power Consumption
Power Linking: TBD
68°F to 113°F (20°C to 45°C)
APPROVALS / RATINGS
CE Approved
cETLus Pending
INSTALLATION
Rigging: Integrated Rigging Bracket
Working Position: Any (360°)
INCLUDED ITEMS
powerCON Cable
