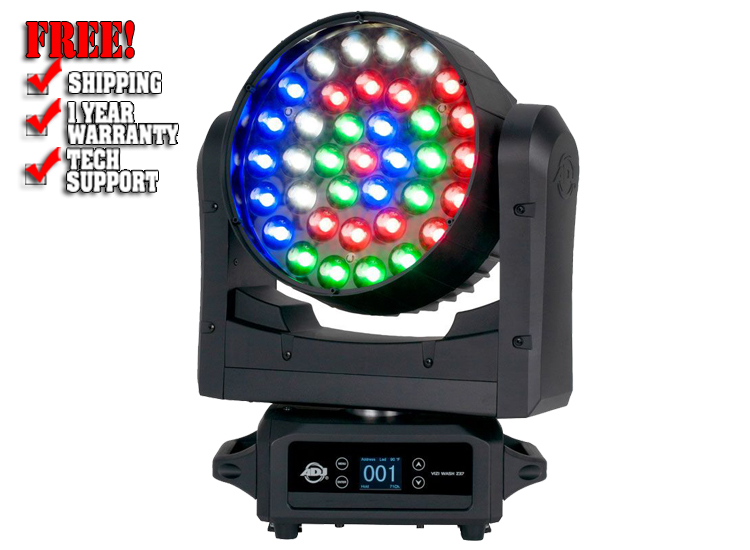

ADJ Vizi Wash Z37

Specifications:

• Light Source:
  • 37x 20W RGBW (4-IN-1 - Red, Green Blue & White) Osram LEDs
  • 20,000 Hour Average LED Life
  • LUX @ 5M: 15000 lux @ 10-degrees; 1100 lux @ 60-degrees
• Effects:

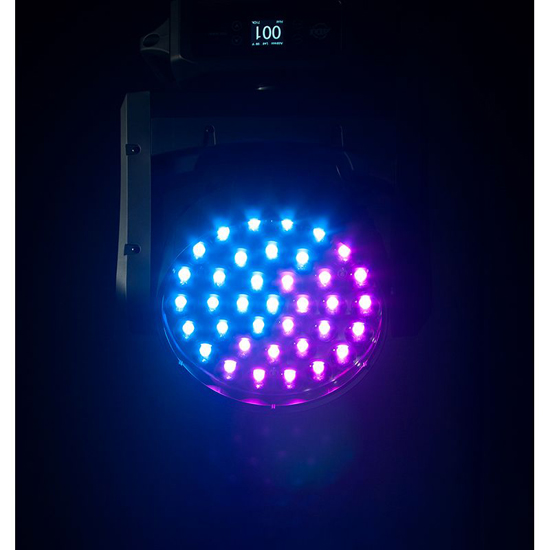

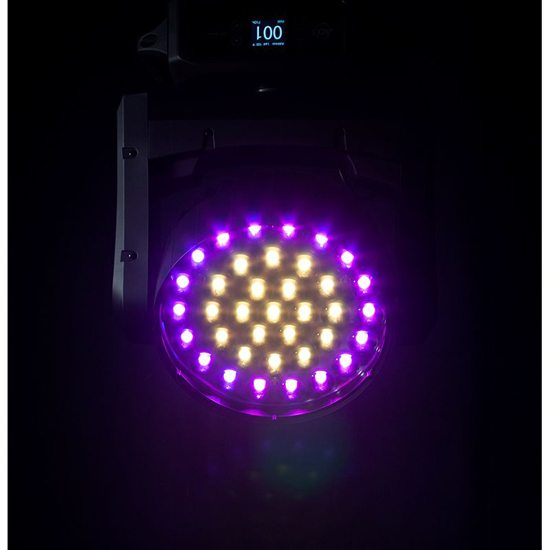

  • 11-zone Ring Control with Color Macros
  • Variable Strobe & Pulse effects

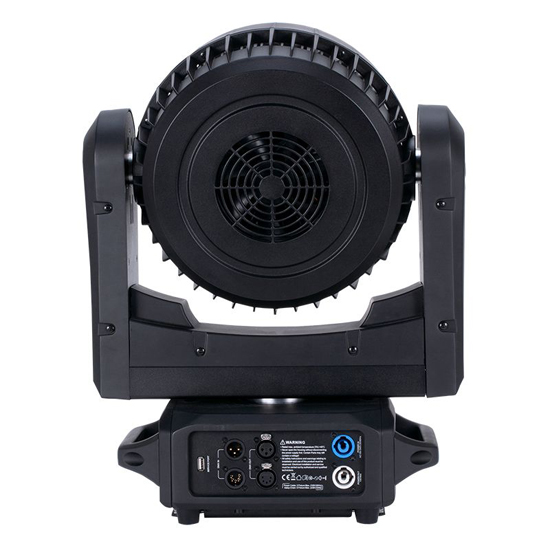

• Connections:
  • Seetronic locking power In/Out to daisy chain power
  • 3-pin and 5-pin DMX connections for data linking
  • RDM (Remote Device Management)
  • USB Input for Updating Fixture Firmware
• Control:
  • Motorized Linear Zoom: 10 ~ 60-degrees
  • 4-button Touch Control Panel with Large LED Screen
  • Control: DMX-512 & RDM
  • Multiple DMX Channel Modes
  • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • Dim Speed control (0.1~10 Seconds)
  • Dimming: 0 - 100%
  • Strobe & pulse control
  • Various Strobe speeds (1-40Hz)
  • Adjustable LED Refresh Rates (900~25k Hz)
  • Adjustable Gamma Settings (1.0-2.8)
  • 16-bit fine zoom control
  • 16-bit fine pan control
  • 16-bit fine tilt control
  • Color display with touch button on two sides
  • With Wired Digital Communication Network
• Electrical:
  • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
  • Power Draw: 525W, 4.375A @ 120V or 700W 3A @ 230V
• Dimensions/Weight::
  • Dimensions (LxWxH): 16" x9" x 20.5" / 408.4x226x520.3mm
  • Weight: 40 lbs. / 18 kg.

Downloads

• Vizi Wash Z37 User Manual
• Vizi Wash Z37 Zoom In Full On Photometrics Test Report
• Vizi Wash Z37 Zoom Out Full On Photometrics Test Report

What's in the Box?

• (1) American DJ Vizi Wash Z37 Professional 20W Quad LED Moving Head Wash Fixture with Zoom
• (1) Locking power cord
• (2) Omega brackets for truss mounting
