Description

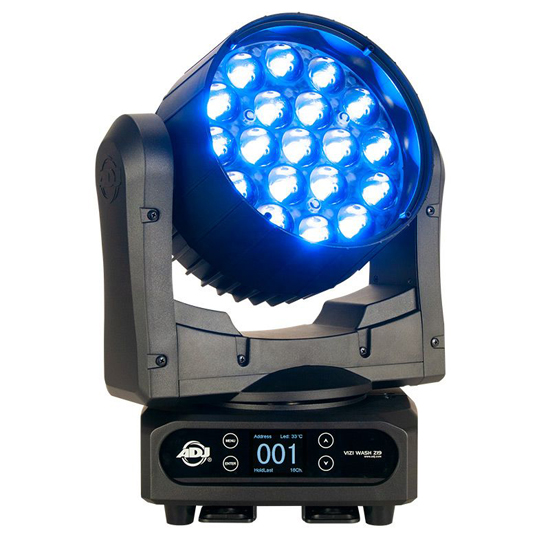

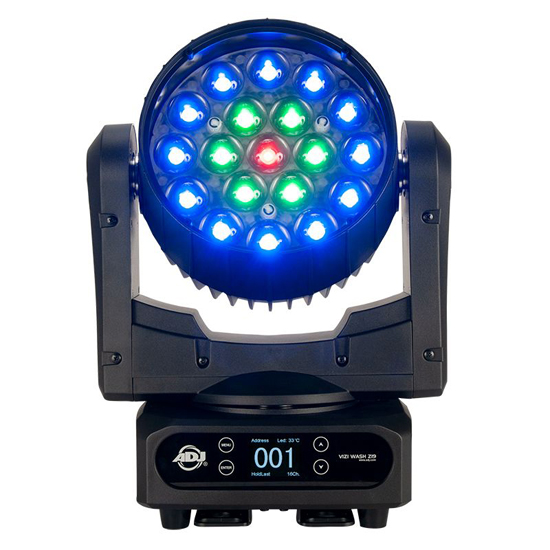

The Vizi Wash Z19 is a 380W professional moving head wash fixture with variable motorized zoom (10 ~ 60-degrees) and nineteen 20W Quad (RGBW / 4-IN-1) LEDs. It features 3 or 7 zones of LED ring control, smooth dimming control from 0-100% (plus 16-but fine dimming), twist lock power In/Out connections to daisy chain power, both 3-pin and 5-pin DMX In/Out and a built-in USB port for a convenient connection to update software if needed.

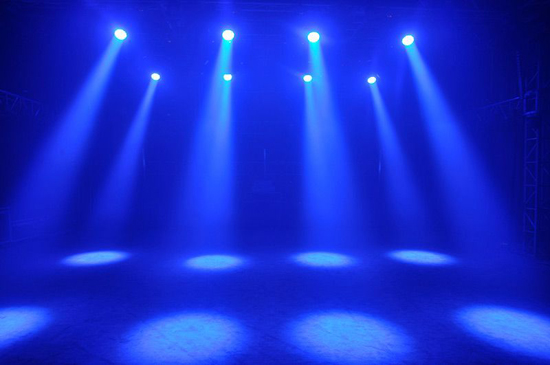

There are 64 built-in color macros, 16-bit fine zoom control, and 4 DMX control modes. This fixture is ideal for washing stages, theaters, churches, nightclubs, concert venues and event productions.

Specifications:

• Optical:

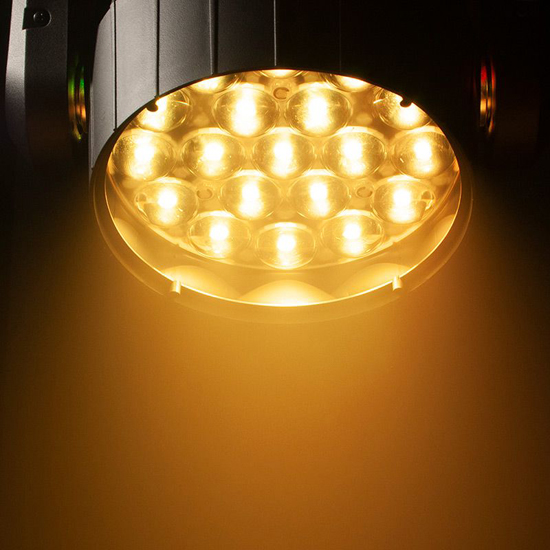

  • 19x Osram 20W RGBW (4-IN-1) LEDs

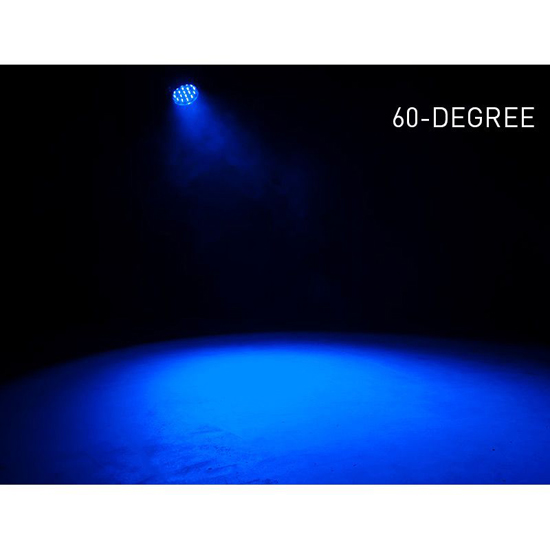

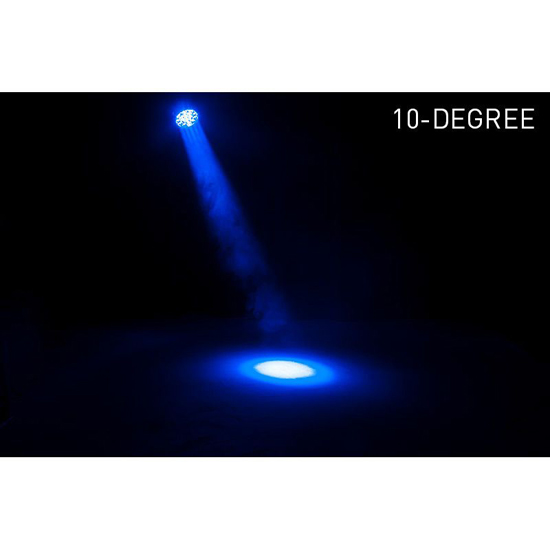

  • Motorized Zoom: 10 ~ 60-degrees
• Connections:

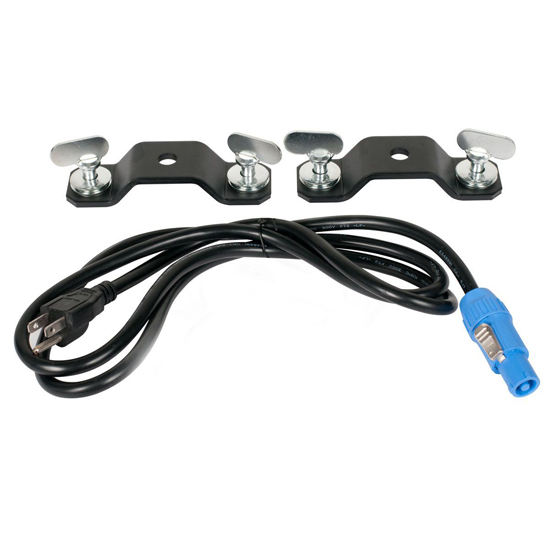

  • Seetronic locking power In/Out to daisy chain power
  • Daisy chain up to 5 fixtures @ 120V, 11 fixtures @ 230V

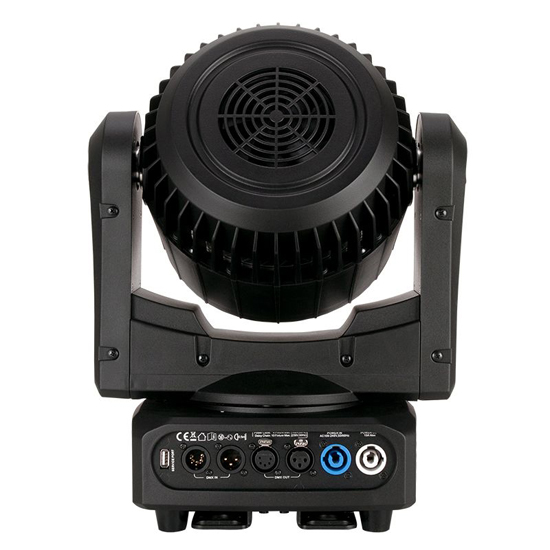

  • 3-pin & 5-pin In/Out DMX Connections
  • With Wired Digital Communications Network
• Control:
  • Control: DMX-512 & RDM
  • Multiple DMX Channel Modes
  • 64 built-in Color Macros
  • Color display with touch buttons
  • 3 or 7 zones of LED ring control
  • Smooth 0-100% Dimming
  • Fine 16-bit Dimming
  • 6 Dimmer Curve modes
  • Fine 16-bit Zoom control
  • Built-in USB software upgrade port
  • Various Strobe speeds (1-40Hz)
  • Gamma Brightness control
  • Pan: 540-degree (plus fine 16-bit pan)
  • Tilt: 270-degrees (plus fine 16-bit tilt)
• Electrical:
  • Multi-voltage operation: 110-240V, 50-60Hz
  • Power Consumption: 285W Max
• Dimensions/Weight::
  • Dimensions (LxWxH): 12.1"x7.7"x15.5" / 306.6x195x393.3mm
  • Weight: 20.7 lbs. / 9.4kg.
