ADJ Focus Spot 2X

Overview

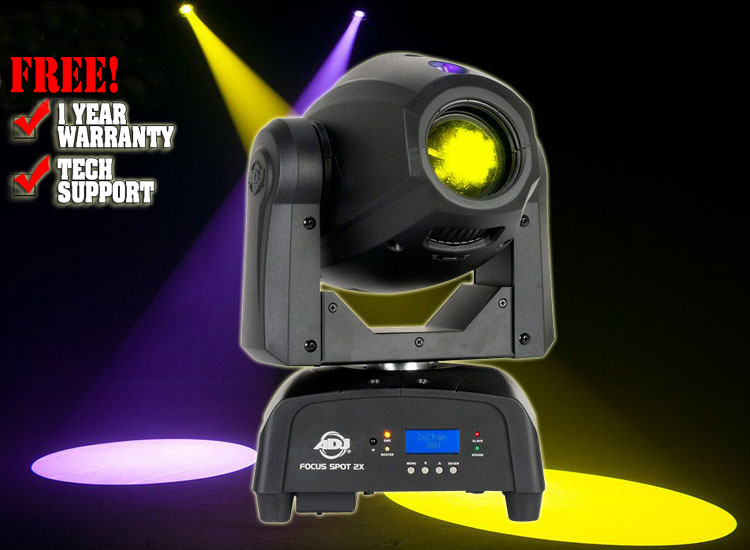

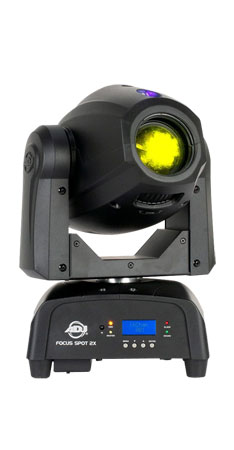

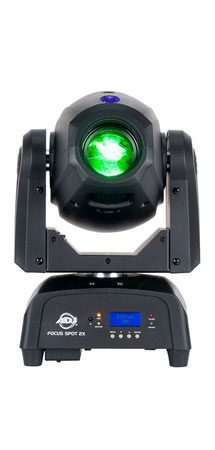

The ADJ Focus Spot 2X is a 100W LED Moving Head with a 3W UV LED included for black lighting or additional color hues. It features two prism effects; a 6-facet circular prism and a 6-facet linear prism. In addition, ADJ has fitted the FS2X with a GOBO wheel with replaceable, rotating and indexable GOBOs. The GOBOs are easy to replace by removing the top housing with one screw that's on a hinge. GOBOs easily lock in and out of the GOBO wheel. This mover is also equipped with motorized focus, Gobo Indexing, EZ Gobo replacement and a manual zoom knob near the lens to change the beam angle from 16 ~ 19 degrees.

The Focus Spot 2X is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a LED spot moving head. It has 16 & 18 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, 3-pin DMX In/Out, locking In/Out power connectors, and a 4-Button DMX LCD menu.

The Focus Spot 2X is fitted with 8 colors plus spot and split colors. It has 6 rotating, replaceable GOBO patterns plus spot. The color wheel and GOBO wheel work independent of each other. All GOBOs are indexable.

Specifications

Light Source:

• 1 x 100W Cold White LED (7600°K, 50,000 hr.)
• 1 x 3W UV LED

Features:

• Motorized Focus
• Manual Zoom knob on head: 16 ~ 19 degree beam angle
• Fan cooled
• Strobe/Pulse effect; random strobe slow to fast
• UC IR & Airstream IR Compatible (Sold Separately)

Color Wheel:

• 8 Colors + White & Split Colors

GOBO Wheel:

• 6 Rotating, replaceable Gobos + Spot
• Gobo Size: Outer: 23mm/Inner:19mm/Thickness: 0.5mm
• Gobo Indexing
• EZ Gobo replacement with hinged head cover
• Gobo Shake effect

Prism Wheel:

• 6-facet circular prism
• 6-facet linear prism

Control:

• 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled
• Primary/Secondary
• 4 Built-in lighting shows
• 16 & 18 DMX channel modes
• Electronic Dimming: 0% - 100%
• 5 Dimmer Curves
• 4-Button DMX LED menu
• Stepper motors with micro stepping
• With Wired Digital Communication Network

Connections:

• 3-pin DMX In/Out

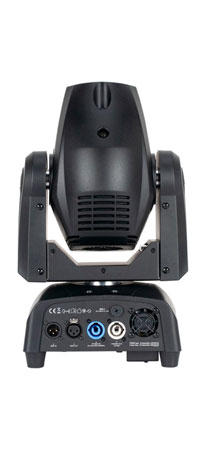

• Twist locking power In/Out connections on rear to daisy chain power (up to 9 Focus Spot 2X's @ 120V and 16 Focus Spot 2X's @ 230V)

Pan/Tilt:

• Fast and precise Pan/Tilt Movements
• 16-Bit Fine Pan/Tilt control
• Pan: 540-degree
• Tilt: 270-degree
• Pan/Tilt Invert Mode
• 4, Built-In, Pan/Tilt Target Modes

Electrical:

• Multi-voltage Operation: 100-240V, 50Hz/60Hz
• Power Consumption: 180W

Dimensions / Weight:

• Dimensions (LxWxH): 9.33" x 9.10" x 15.15"/ 237 x 231 x 385mm
• Weight: 14.5 lbs. / 6.5 kgs.

What's Included:

• Includes Omega bracket for truss mounting
• Includes power cable

Approvals:

• CE
• ETL Approved
