ADJ UB 12H

Product Description

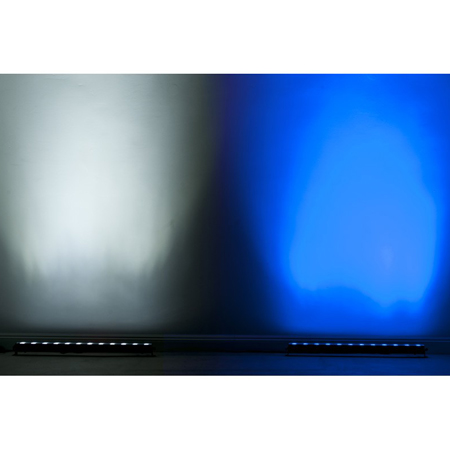

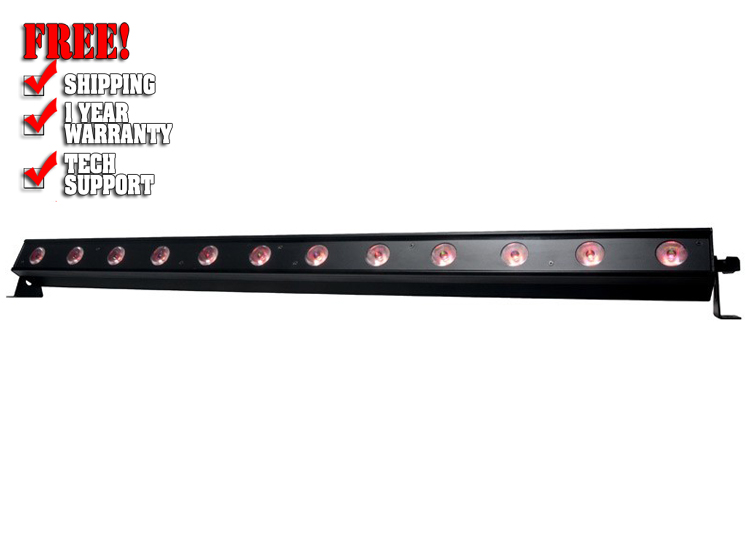

The ADJ UB 12H is a 41.75-inch (1-meter) professional grade indoor linear fixture powered by twelve 6-Watt HEX (6-IN-1) LEDs. Its bright chromatic 40-degree beam angle provides vibrant TRI color mixing designed for washing stages, walls and dance floors. Its rugged casing with patent pending Quick Align end locking allows for a seamless output of light with no breaks of color.

UB 12H features built-in Color Macros (built-in colors), 0-100% dimming and variable speed strobe. Plus, it offers flexible programming from its on-board 4-Button LED DMX-512 menu, or from the ADJ UC IR wireless remote included inside the box.

Specifications

• 41.75-inch (1 meter) indoor Linear Bar with 12x 6W HEX LEDs (RGBAW+UV)
• Great for Stage or Wall Washing!
• 6 DMX Channel Modes: 3, 5, 6, 7, 8 or 20 channels
• 5 operational modes: Auto (Program Run),Sound Active, RGBAW+UV Dimmer, Static Color and DMX-512 Mode
• 3 or 6-Section Pixel control
• Patent Pending Quick Align (Magnetic)
• Beam Angle: 40 degrees
• Flicker Free
• 4-Button DMX LED Display
• 35 built-in Color Macros
• LED pulse & strobe effect
• Electronic Dimming: 0-100%
• Includes mounting brackets to mount on a wall
• or set on the ground

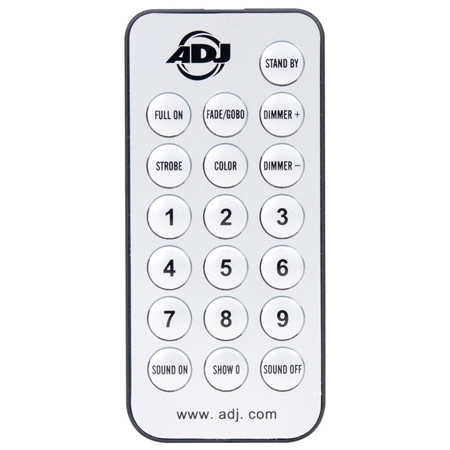

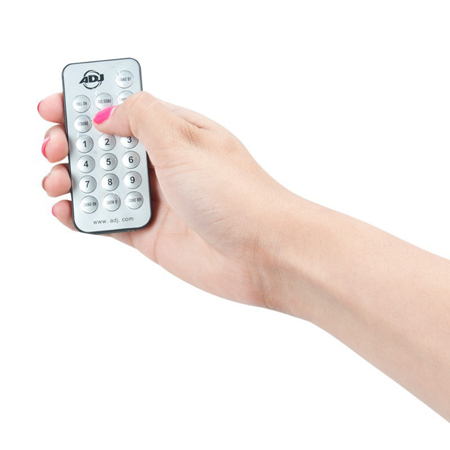

• Compatible with the ADJ UC IR wireless remote (included) and the Airstream IR APP
• Long Life LEDs (Rated at approximately
• 50,000 hrs.)
• Power Draw: 43W
• Linkable: DMX via 3-pin XLR cable; Power via IEC daisy-chain power link (Up to 13 UB 12H
• Multi-voltage operation: AC 100V-240V 50/60Hz
• Dimensions (LxWxH): 41.75" x 2.5" x 3.75"/ 1060 x 63 x 90mm
• Weight: 6 lbs./ 2.7 kg.

Downloads

UB 12H User Manual : Download
