Elation Professional SIXBAR 1000 IP

Overview

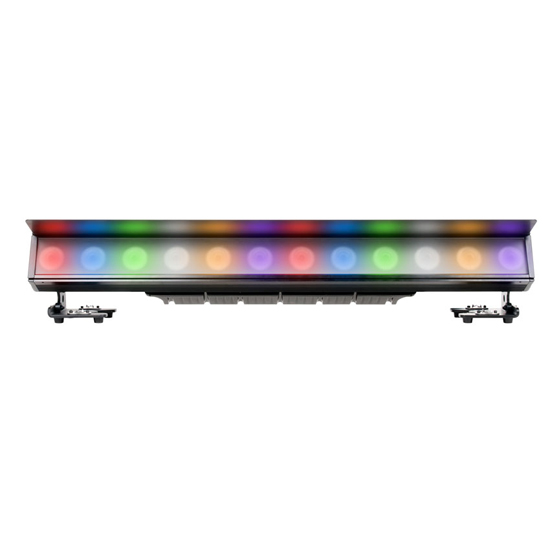

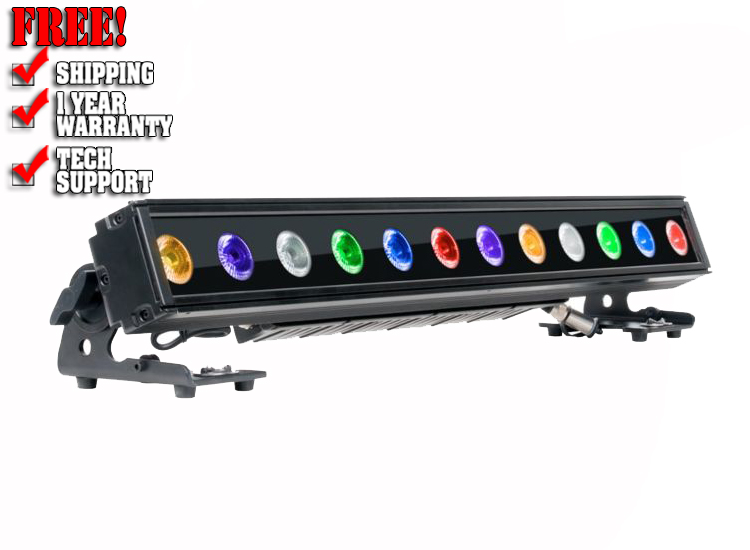

The IP65 rated SIXBAR 1000 IP™ features (12) 12W 6-IN-1 RGBAW+UV LEDs, 25° beam angle, pixel control, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, RDM (remote device management) protocol support, IP rated DMX and power in/out connections, LCD menu display with 4 touch button control panel, dual adjustable rigging/floor stand brackets, glare shield and frost filter included, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 145W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).

Features

• IP65 Rated
• 12 x 12W 6-in-1 RGBAW+UV LEDs
• 25° Beam Angle
• Pixel Control
• Rugged Die-Cast Aluminum Exterior

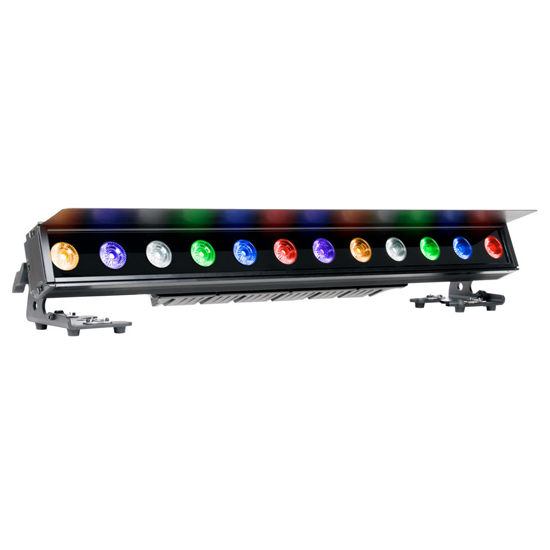

• Glare Shield and (2) Lens Filters Included

Specifications

• SOURCE
  • (12) 12W 6-in-1 RGBAW+UV LEDs
  • 100,000 Hour Average LED Life
• PHOTOMETRIC DATA
  • 7,149 LUX 664 FC @3.3' (1m) (25° Full ON)
  EFFECTS
  • Pixel Control
  • Strobe and Chase Effects
  • Variable and Selectable Dimming Curves
• CONTROL / CONNECTIONS
  • (8) DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)

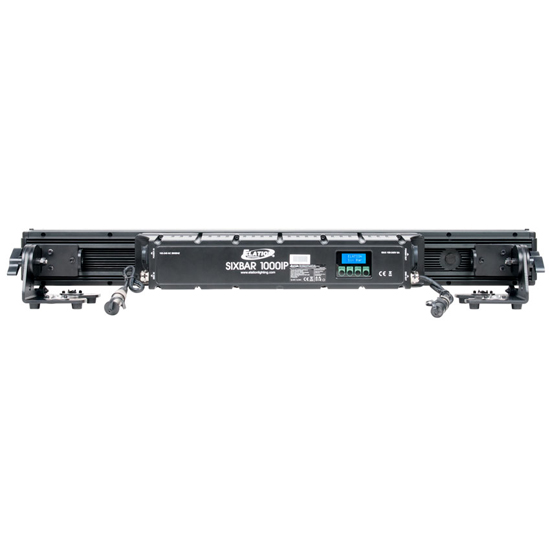

  • 4 Button Control Panel and LCD Menu Display
  • RDM (Remote Device Management)
  • IP Rated 5pin DMX In/Out

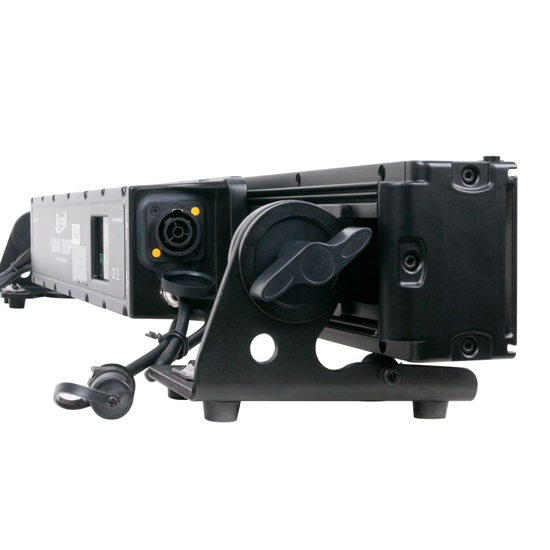

  • powerCON Power In/Out
  • With Wired Digital Communication Network
• SIZE / WEIGHT
  • Length: 33.6" (853mm)
  • Width: 5.6" (141.4mm)
  • Vertical Height: 4.7" (120.5mm)
  • Weight: 19.0 lbs. (8.6 kg)
• ELECTRICAL / THERMAL
  • AC 110-240V - 50/60Hz
  • 145W Max Power Consumption
  • Power Linking: 6pcs @110V / 15pcs @240V
  • 5°F to 113°F (-15°C to 45°C)
  • UV Wavelength: 395nm

INCLUDED ITEMS

• powerCON TRUE1
• Glare Shield
• (2) Lens Filters
