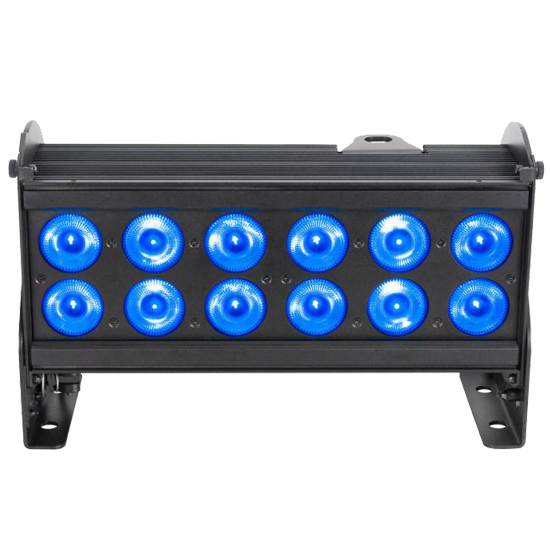

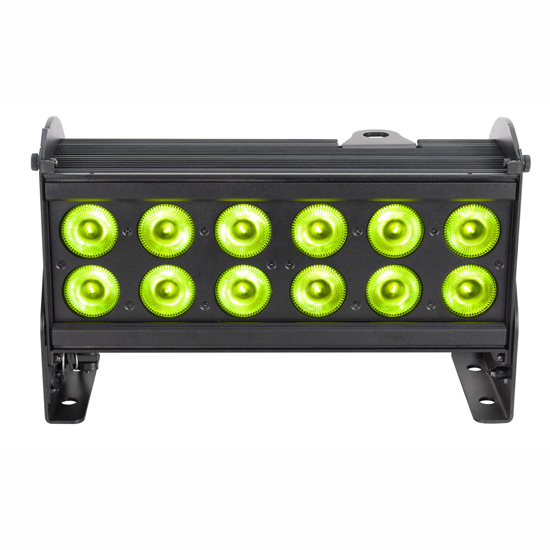

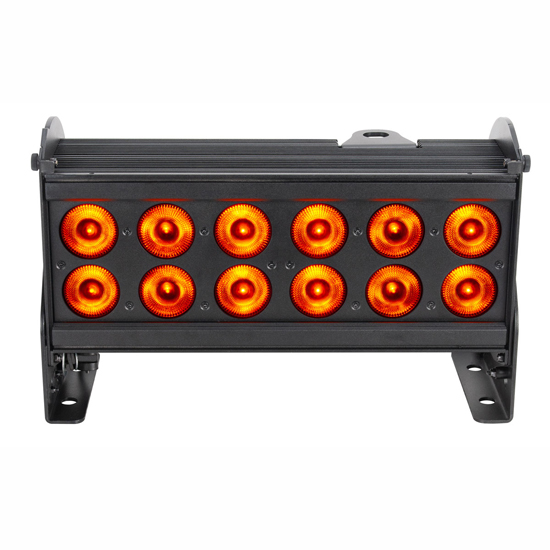

Elation Professional SEVEN Batten 14

Features

• 1.2 Foot (0.4m) Seven Color Batten Wash Luminaire
• (12) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
• Individual Hue, Saturation, and Intensity Control
• Special RGB SEVEN 3 Channel Mode (RGB + Dynamic White, Amber, Lime, UV)
• 2 Pixel Mapping Zones with Pixel Flip Mode
• Smooth Color Mixing, Internal Programs with Speed and Fade Control
• 64 Unique 7-Color Macros
• Selectable 16-bit Dimming Curve Modes
• DMX Adjustable LED Refresh Rate
• Adjustable LED Gamma Brightness
• Flicker Free Operation for TV and FILM
• Art-Net, Kling-Net, and RDM Protocol Support

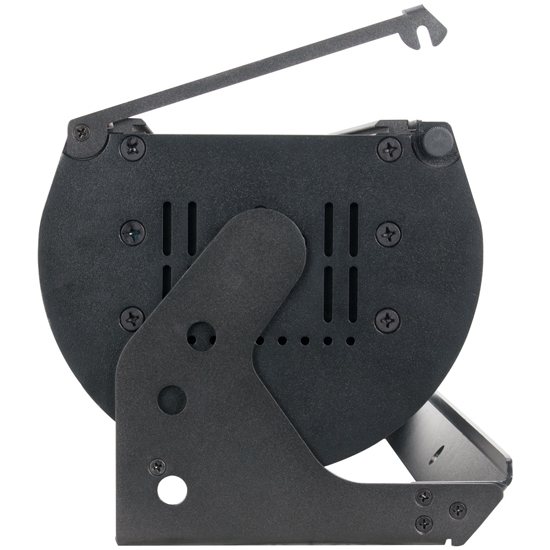

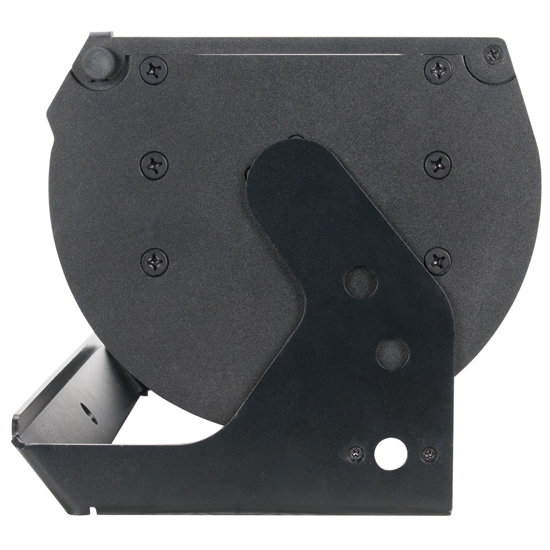

• 220° Manual Tilt Adjustable Mounting Bracket
• Rugged Powder Coated Die-Cast Aluminum Exterior

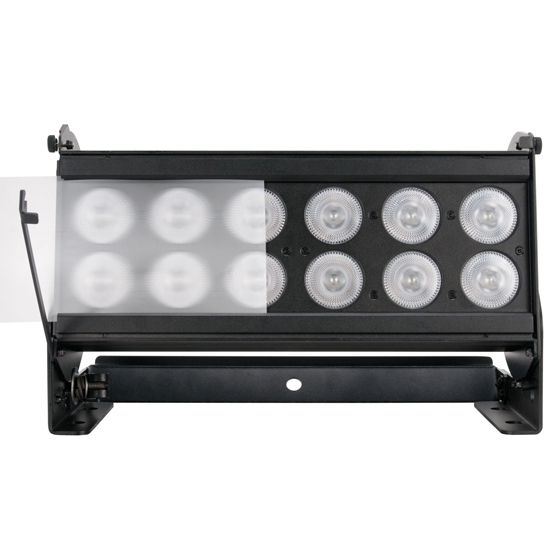

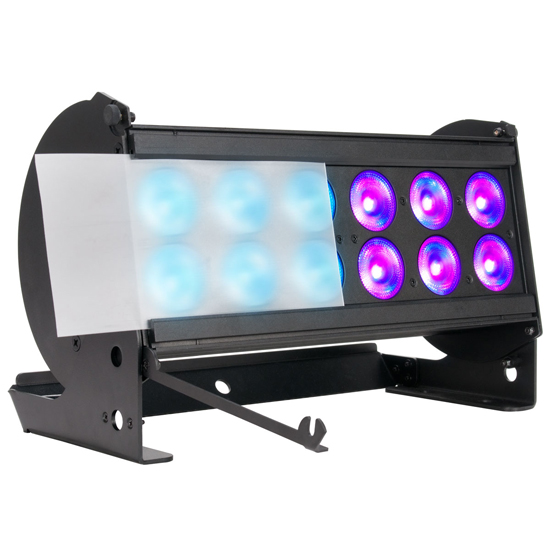

• Integrated Gel / Frost Filter Slot

Specifications

• SOURCE
  • (12) 25W 7-IN-1 RGBAW + Lime + UV LEDs
  • 50,000 Hour Average LED Life
• EFFECTS
  • Individual Hue, Saturation, and Intensity Control
  • Special RGB SEVEN 3 Channel DMX Mode (RGB + Dynamic White, Amber, Lime, UV)
  • 2 Pixel Mapping Zones with Pixel Flip Mode
  • 12 Internal Program Macros with Speed and Fade Control
  • 64 Unique 7-Color Macros
  • Selectable 16-bit Dimming Curve Mode
• COLOR
  • RGBAW + Lime + UV (395nm)
• CONTROL / CONNECTIONS
  • 12 DMX Channel Modes (22 total channels)
  • DMX and Manual Control
  • 4 Button Control Panel
  • 180° Reversible OLED Menu Display
  • Adjustable Refresh Rate (900-28,800 (Hz)
  • Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
  • Art-Net, Kling-Net, and RDM) Protocol Support

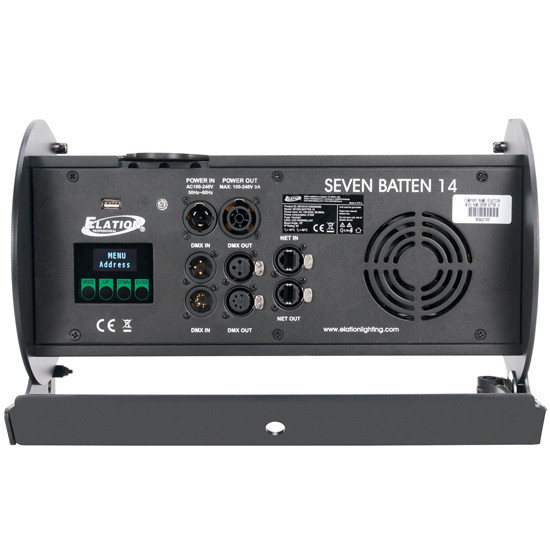

  • 3/5pin DMX, RJ45 etherCON, and Power In/Out
  • With Wired Digital Communication Network
• SIZE / WEIGHT
  • Length: 14.0" (1828.8mm)
  • Width: 4.5" (114.3mm)
  • Vertical Height: 9.0" (228.6mm)
  • Weight: 17.0 lbs. (7.7kg)
• ELECTRICAL / THERMAL
  • AC 100-240V - 50/60Hz
  • 201W Max Power Consumption
  • 5°F to 113°F (-15°C to 45°C)
