Blizzard AtmosFEAR® Tour HZ

Tour-Ready Hazer

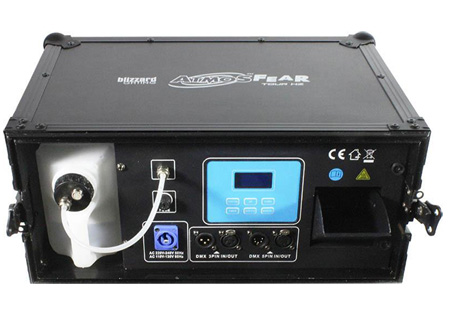

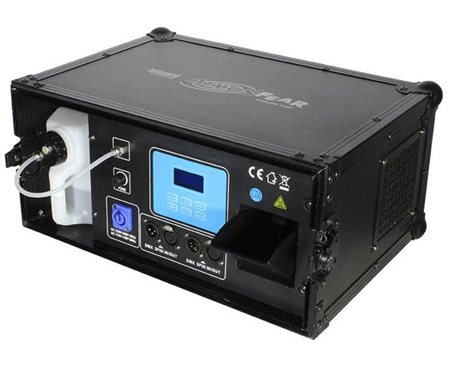

Meet the AtmosFEAR® Tour HZ, a professional, tour-ready, 1,000W haze machine capable of producing up to 8,000 cubic ft. per minute of continuous haze output. The well-built Tour HZ is the perfect solution for applications of any size and scale. The machine is housed in an all-black ATA-spec flight case with detachable front cover with carry handle, and features dual recessed butterfly latches for quick access to the front panel.

Easy Setup + Control

Setting up an AtmosFEAR® Tour HZ couldn't be easier; fill up its 1.9L fluid tank with Steam . HZ™ (or any other quality water-based haze fluid) and give it some power. Then, after a quick 6-minute warm up, it's ready for action. Using its 6-button LCD control panel, users can easily set up timed haze emissions with both interval and duration settings anywhere from 0-200 seconds, or just press the manual haze button for instant output.

MAIN FEATURES

• DMX controllable water-based haze machine
• Tour-ready all-black ATA-spec flight case
• 1,000W heat exchanger, 8,000 cubic ft./minute continuous output
• Haze output and blower speed adjustment
• Timer with interval and duration settings
• 6-button control panel with LCD display
• Optional low fluid shutdown
• Manual haze output button
• 3/5-pin DMX connectivity
• 6-position moveable haze guide for directional output control
• 3-channel DMX control (working mode, fan speed, output volume)
• Rugged and well-built
• powerCON® compatible power input connector

SPECIFICATIONS

Weight & Dimensions

• Dimensions: 17.4 x 15.6 x 9.9 in. (44 x 39.5 x 25 cm)
• Weight: 29.8lbs (13.5kg)

Control

• Protocol: USITT DMX-512
• 6-button control panel with LCD display
• DMX Channels: 3-Channels
• Input: 3/5-pin XLR Male
• Output: 3/5-pin XLR Female
• Operating Modes: Standalone, Master/Slave

Power & Current

• Voltage: AC110-120V 50/60Hz
• Fuse: 10A, 250V
• Power consumption: 1,000W

Warranty

• 2-year limited warranty
• CutSheet
• Manual Rev B
