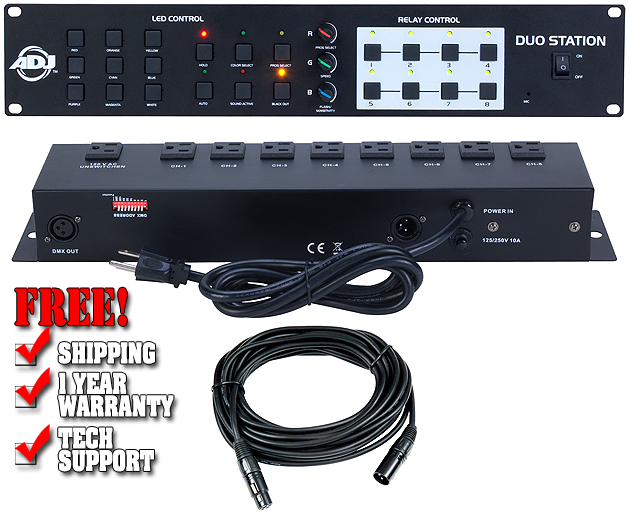

The American DJ DUO STATION features two controllers in one. One side is a basic 3-channel RGB LED controller with the same functions as the ADJ RGB3C, while the other side is an 8-channel On/Off Switching System similar to the ADJ SC8 controller. The DUO STATION has separate outputs on the rear control panel so each side runs independently from the other. It’s the ideal control solution for DJs, bands, small night clubs, and bars that want simple LED control and On/Off control of effect type lights.
• System includes: 1x Duo Station Controller, 1x Relay Pack, 1 x 20-foot/7M DMX Cable
• 2 Lighting Controllers in 1: RGB LED 3-channel Controller + Relay On/Off controller WITH SEPARATE DATA OUTPUTS.
• BUILT IN PROGRAMS AND STATIC COLOR SCENES FOR 3-CHANNEL RGB LED FIXTURES.
LED CONTROL FEATURES:
• Basic 3-channel RGB LED controller designed to control any standard 3 channel RGB fixture where channel 1 is Red, channel 2 is Green and channel 3 is Blue.
• 9 static color buttons
• Hold COLOR button
• Color Select button
• Program Select button: 16 single and multi color chase programs
• Auto button: activates the 16 chase programs to randomly sequence while the speed of the chases can be controlled via the SPEED potentiometer
• Sound active button: actives 16 chase programs
• Black out button zeros output on the LED control side.
• 3 manual RGB potentiometers: allows the user to dial in a desired color on the fly
• RGB potentiometers double as Program Select, Chase Speed and Flash/Sensitivity manual controls
RELAY CONTROL (ON/OFF):
• 8 buttons to switch relative channels on/off
DUO STATION CONTROL PANEL TECHNICAL SPECS:
• DMX output connector: 3-pin XLR
• Power In: 12V 500mA (Included)
• Power consumption: 3.6 Watts
• Dimensions: 19”x 3.5”x3.5” / 483x89x89mm (2 rack spaces)
• Weight: 3.5 lbs. / 1.5 kg.
RELAY PACK TECHNICAL SPECS:
• DMX & Stand Alone operation modes
• DMX input & output connectors: 3-pin XLR
• Dip switches for DMX addressing and work mode setting
• 8 x 3-prong “switched” Edison sockets (120V/60Hz)
• 1 x 3-prong “Constant power” Edison socket (120V/60Hz)
• 5A max per socket
• Dimensions: 18.75”x3.5”x2.5” / 473x91x63mm
• Weight: 5 lbs. / 2.25kg.
