Yamaha YC88

MOBILITY

YC88 weighs 41 lb, 0 oz (18.6 kg). Which makes them compact and light enough for you to be your own roadie. But with a sound that players who can afford roadies will appreciate.

Specification:

Control Interface

• Keyboard Number of Keys 88
• Type NW-GH3 (Natural Wood Graded Hammer) keyboard: synthetic ebony and ivory keytops

Voices

• Tone Generation Tone Generating Technology VCM Organ, AWM2, FM
• Polyphony Number of Polyphony (Max.) [VCM Organ + AWM2]:128 *Total of VCM Organ and AWM2, [FM]:128
• Number of Live Set Sound 160 (Preset Live Set Sounds:104)
• Number of Voices 152 (Organ:9 / Keys:143)

Effects

• Types Insertion Effect Organ 1 systems (Pre Drive) / Key A 2 systems (1: 35 types, 2: 35 types) / Key B 2 systems (1: 35 types, 2: 35 types)
• Effect 35 types
• Speaker/Amp 7 types (Rotary Speaker: 3 types, Amp: 4 types)
• Reverb 1 type
• Master EQ 3 band (with sweepable Mid)

Connectivity

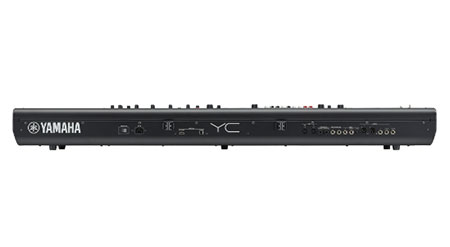

• Connectors Line Out OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks, UNBALANCED), OUTPUT [L]/[R] (XLR jacks, BALANCED)
• Headphones [PHONES] (6.3 mm, standard stereo phone jack)
• Foot Controller FOOT CONTROLLER [1]/[2], FOOT SWITCH [SUSTAIN]/[ASSIGNABLE]
• MIDI MIDI [IN]/[OUT]
• USB USB [TO HOST]/[TO DEVICE]
• AUX INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)

Other

• Connectors [AC IN]
• Display Full Dot LCD (128 x 64 dots)
• Additional package contents Owner’s Manual x 1, Power cord x 1, Foot pedal (FC3A) x 1

Size/Weight

• Dimensions Width 1298 mm (51-1/8")
• Height 142 mm (5-9/16")
• Depth 364 mm (14-5/16")
• Weight Weight 18.6 kg (41 lb, 0 oz)
• Packing Box Width 1,548 mm (60-15/16")
• 291 mm (11-7/16")
• Depth 524 mm (20-5/8")
