Yamaha CP88

Innovation Powered by Tradition

Powered by over 100 years of piano craftsmanship and 45 years of synthesizer innovation, the CP73 and CP88 stage pianos boast authentic acoustic and electric piano sound, realistic piano touch and an intuitive one-to-one user interface.

Sound

Sound is the most important part of any musical instrument. CP73 and CP88 stage pianos feature a wide range of grand piano, upright piano, electric piano and keyboard sounds for playing any music genre.

Touch

The feel of an instrument is how a musician conveys their uniqueness. CP73 and CP88 feature keyboard action designed with knowledge informed by over 100 years of acoustic piano-making to provide piano players with the action they need for maximum expression.

Design

CP73 and CP88 are designed to withstand the rigors of the road and are extremely intuitive to use.

Mobililty

CP73 and CP88 are among the lightest and most compact instruments in their class. CP88 weighs just 18.6 kg (41 pounds) while CP73 weighs 13.1 kg (28.9 pounds).

Specification

Control Interface

• Keyboard Number of Keys 88
• Type NW-GH (Natural Wood Graded Hammer) keyboard: synthetic ebony and ivory keytops

Voices

• Tone Generation Tone Generating Technology AWM
• Polyphony Number of Polyphony (Max.) 128
• Preset Number of Voices 57 (Piano: 10 / E. Piano: 14 / Sub: 33)

Effects

• Types Delay 2 types (Analog, Digital)
• Reverb 1 type (Hall)
• Master EQ 3 bands (with sweepable MID)
• Insertion Effect Piano: 2 systems (1: Damper Resonance / 2: Compressor, Distortion, Drive, Chorus), E. Piano: 3 systems (1: Drive / 2: Auto Pan, Tremolo, Ring Modulator, Touch Wah, Pedal Wah, Compressor / 3: Chorus1, Chorus2, Flanger, Phaser1, Phaser2, Phaser3), Sub: 1 system (Chorus/Flanger, Rotary Speaker, Tremolo, Distortion

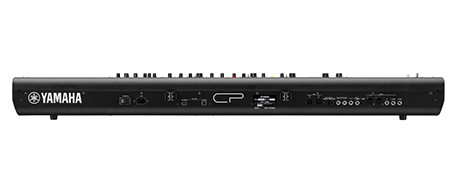

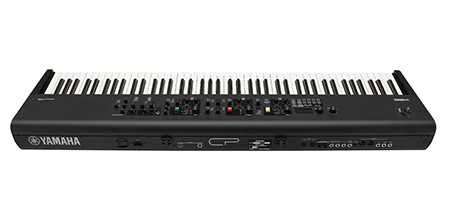

Connectivity

• Connectors Line Out OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks, UNBALANCED), OUTPUT [L]/[R] (XLR jacks, BALANCED)
• Headphones [PHONES] (6.3 mm, standard stereo phone jack)
• Foot Controller FOOT CONTROLLER [1]/[2], FOOT SWITCH [SUSTAIN]/[ASSIGNABLE]
• MIDI MIDI [IN]/[OUT]
• USB USB [TO HOST]/[TO DEVICE]
• AUX INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)

Other

• Connectors [AC IN]
• Display Full Dot LCD (128 x 64 dots)
• Additional package contents Owner’s Manual x 1, Power cord x 1, Foot pedal (FC3A) x 1

Size/Weight

• Dimensions Width 1,298 mm (51-1/8")
• Height 141 mm (5-9/16")
• Depth 364 mm (14-5/16")
• Weight 18.6 kg (41 lb, 0 oz)
