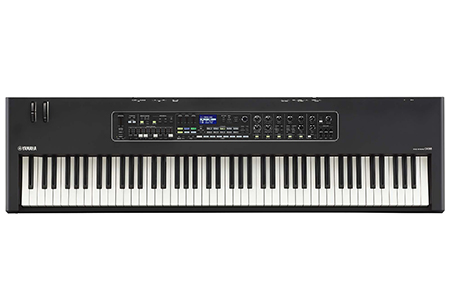

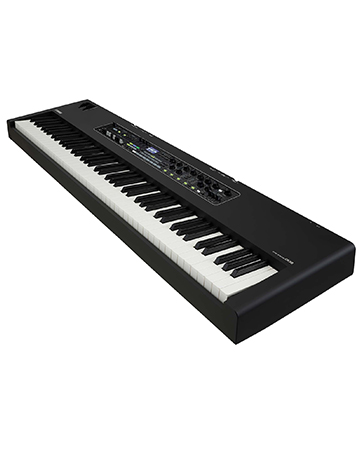

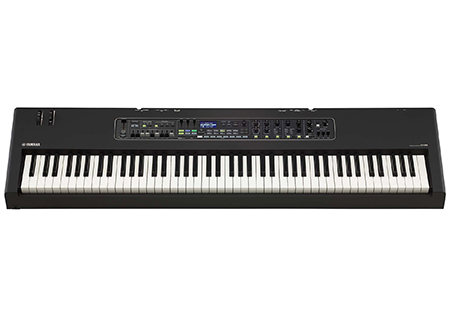

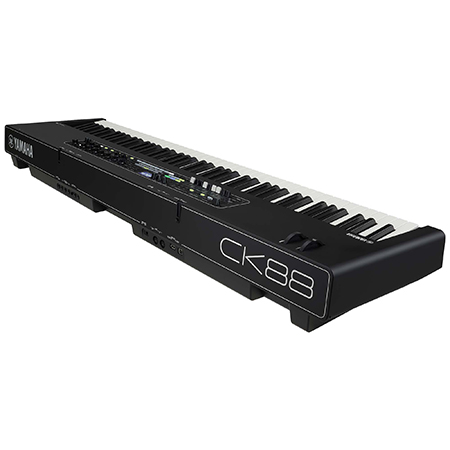

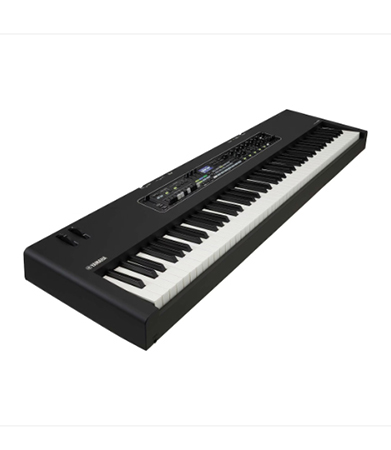

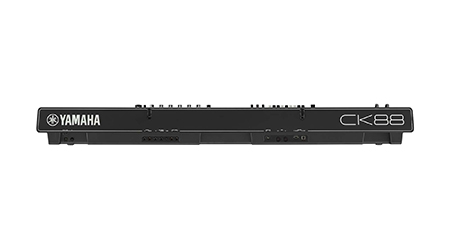

Yamaha CK88

Take your sound where it's never been before. Anywhere.

CK turns everywhere into a stage or studio with intuitive controls, built-in speakers, and everything you need to create your own sound.

SOUND

CK combines the sounds of the Yamaha CP Stage Piano with the organ and synth focused YC Stage Keyboard to give you a totally new sonic palette. All with an intuitive interface that lets you focus on the music, not the menus. You'll have piano, electric pianos, strings and brass plus a dedicated organ section and modern synth sounds. Onboard special effects to make it your own. There's even Analog to Digital (A/D) Input to plug in a mic or another instrument, apply effects and record directly to your laptop. Not to mention CK has built-in speakers and batteries to take your new sound to new places. The options are nearly endless.

CONTROL

CK features an intuitive, 1 to 1 interface that gives you the freedom to explore your sound. Everything, from dedicated Organ controls to Synth and Effects controls, is designed to keep you making music instead of diving into menus.

VERSATILITY

All the world's a stage - or studio. And CK is the portable keyboard ready to play anywhere at a moment's notice. Take it camping and livestream by a stream. Play in the park. Or on stage in Central Park. Bring it to your neighbor's BBQ and steal their guitar thunder. All without compromising sound quality or features.

Specification:

Control Interface

Keyboard

• Number of Keys: 88
• Type: GHS keyboard: matte black keytops

Voices

• Tone Generating Technology: AWM2, AWM (Organ Flutes)
• Number of Polyphony (Max.): 128

• Number of Live Set Sound: 160 (Preset Live Set Sounds: 80)
• Number of Voices: 363

Effects

• Insertion Effect: Drive 1 system (5 types) / Effect 2 systems (1: 36 types, 2: 36 types)
• Delay: 4 types
• Reverb: 3 types
• Master EQ: 3-band

Connectivity

• Line Out: [L/MONO]/[R] (6.3 mm, standard phone jacks, unbalanced)
• A/D INPUT: [L/MONO]/[R] (6.3 mm, standard phone jacks)
• Headphones: [PHONES] (6.3 mm, standard stereo phone jack)
• Foot Controller: FOOT PEDAL [1]/[2]
• MIDI: MIDI [IN]/[OUT]
• USB: USB [TO HOST]/[TO DEVICE]

• DC IN: [DC IN]

Functions

• Bluetooth: Yes (Audio Input) * May not have this functionality depending on the country
• USB audio interface: [Sampling Frequency = 44.1 kHz] In: 2 channels (1 stereo channel) Out: 2 channels (1 stereo channel)

Sound System

• Amplifiers: 6 W × 2
• Speakers: (12 cm × 6 cm) × 2, Switchable ON/OFF

Other

• Display: Full Dot LCD (128 x 64 dots)
• Included Accessories: AC adaptor*, Owner's Manual *May be included depending on your locale

Power Supply

• Adaptors: PA-150B or an equivalent recommended by Yamaha (Output: DC 12V, 1.5 A)
• Batteries: Eight "AA" size alkaline (LR6) or Ni-MH rechargeable batteries

• Power Consumption: 11 W (When using PA-150B AC adaptor)

Size/Weight

• Dimensions
• Width: 1,333 mm (52-1/2")
• Height: 148 mm (5-13/16")
• Depth: 354 mm (13-15/16")
• Weight : 13.1 kg (28 lb 14 oz) (not including batteries)
