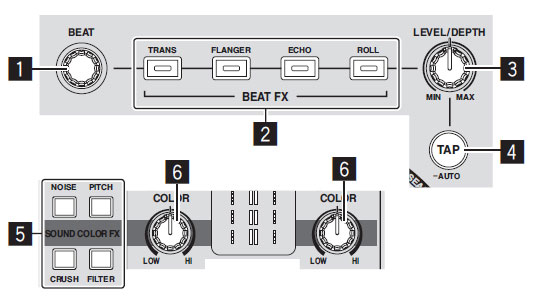

Pioneer XDJ-R1: Effect Section

1 BEAT control

Selects the beat multiple for synchronizing the beat effect.

2 BEAT FX (TRANS, FLANGER, ECHO, ROLL) buttons

These turn the respective beat effects on and off.

3 LEVEL/DEPTH control

Adjusts the quantitative parameter of the beat effect.

4 TAP (AUTO) button

Switches the BPM measurement mode.

• AUTO mode: The [TAP (AUTO)] button turns off and the BPM is measured automatically from the audio signal being input. The AUTO] mode is set when this unit's power is turned on.
• TAP mode: The [TAP (AUTO)] button lights and the BPM is input manually by tapping the [TAP (AUTO)] button. When the [TAP (AUTO)] button is pressed, the TAP mode is set.
• The BPM measuring range in the AUTO mode is BPM = 70 – 180. For some tracks, it may not be possible to measure the BPM correctly.
• BPMs set in the TAP mode are only valid for the BEAT FX function.

5 SOUND COLOR FX (NOISE, PITCH, CRUSH, FILTER) buttons

These turn the respective SOUND COLOR FX on and off.

6 COLOR control

This changes the parameters of the SOUND COLOR FX of the differ- ent channels.
