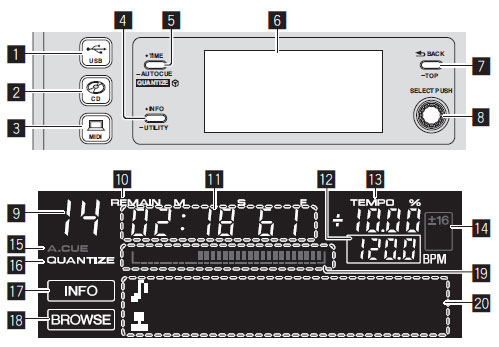

Pioneer XDJ-R1: Browser Section

1. USB button

Press this to play the music files on a USB device.
    - Playing media connected to or inserted in this unit.

2. CD button

Press this to play the music files on a CD or CD-ROM.
    - Playing media connected to or inserted in this unit.

3. MIDI button

Press this to use DJ software.
    - Using the DJ software.

4. INFO(UTILITY) button

Press: The main unit display switches to the information display mode. When in the information display mode, the information display section switches between the track name display, beat display or auto loop/effect display each time the button is pressed.

Press for over 1 second: The [UTILITY] screen is displayed.
    - Changing the settings.

5. TIME (AUTO CUE,QUANTIZE) button

Press:
The main unit display's time display mode switches to the elapsed time or remaining time display.
Press for over 1 second:
When pressed for over 1 second, auto cue turns on and off.
[SHIFT] + press:
This turns the QUANTIZE function on and off.
    - Using the QUANTIZE function.

6. Main unit display

7. BACK(TOP) button

Press: The screen moves back to the layer above. Press for over 1 second: Press for over 1 second to move to the top layer.

8. Rotary selector (SELECT PUSH)

9. This displays the track number.

10. REMAIN

This is displayed when the time display is set to the remaining time.

11. Time display (minutes, seconds and frames)

12. BPM

Displays BPM (Beats Per Minute) of the track currently being played. The value changes according to the position of the [TEMPO] slider.

13. TEMPO %

This indicates the percentage by which the playing speed is changed.

14. Playing speed adjustment range display

This indicates the range by which the playing speed can be adjusted.

15. A. CUE

This is displayed when the auto cue mode is set.

16. QUANTIZE

This is displayed when [QUANTIZE] is turned on.

17. INFO

This is displayed when the main unit display is set to the information display mode.

18. BROWSE

This is displayed when the main unit display is set to the browse display mode.

19. Playing address display

This displays a track as a bar graph. The graph lights up from the left edge when the elapsed time is displayed and turns off from the left edge when the remaining time is displayed. The entire graphs starts flashing slowly when only 30 seconds remain to the end of the track, then starts flashing quickly when only 15 seconds remain.

20. Information display section
