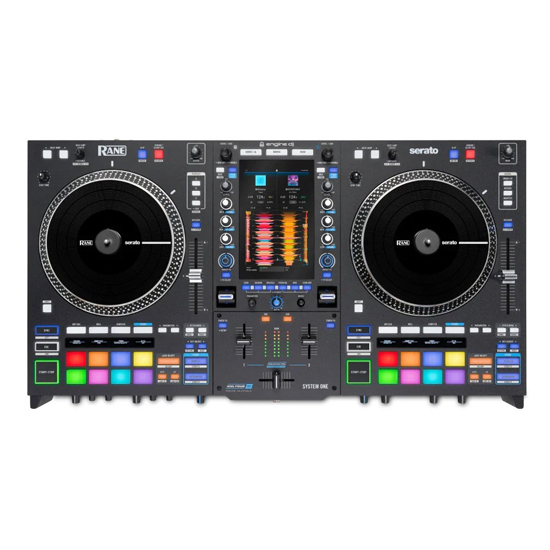

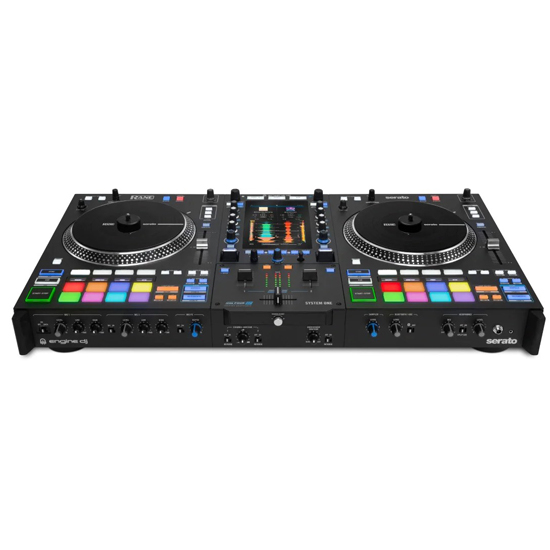

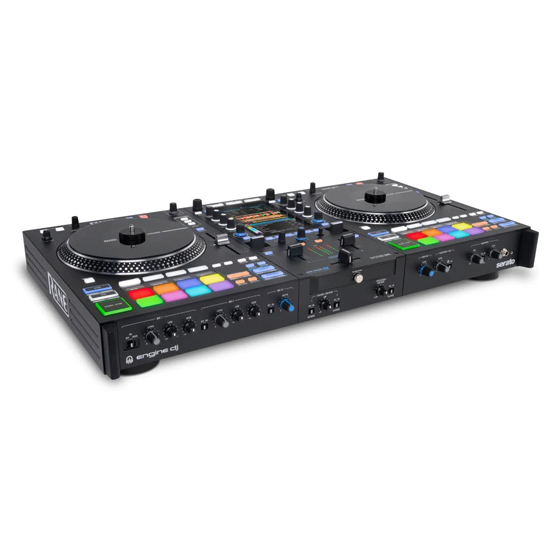

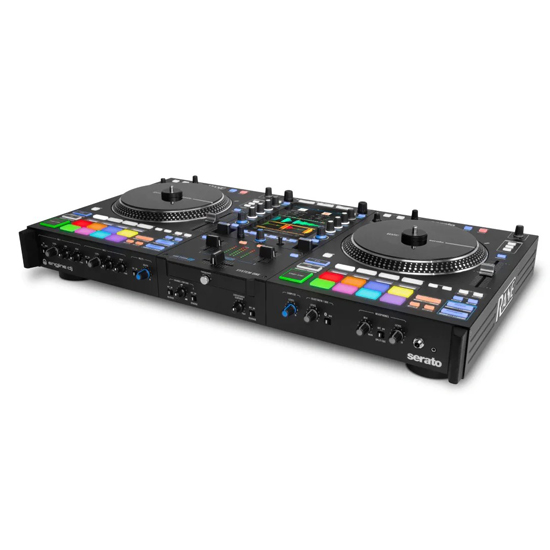

Rane System One All-in-one DJ Controller

Stems for Greater Creative Control

Execute blends and remixes on the fly with standalone Stems, Stem FX, Instant Acapella and Instrumental buttons, Stems pad mode, and Stem Level EQ control. Render tracks for Stems ahead of time with Engine DJ desktop or directly on the SYSTEM ONE (on-board Stems rendering coming early 2026).

Seamless FX Integration

SYSTEM ONE features over 25 onboard Main FX across six assignable slots with aluminum toggle activation, plus 5 knob-controlled Sweep FX, 10 on-screen Touch FX, and 4 fader-activated Fader FX, giving you a robust arsenal of creative tools. In addition to internal effects, you can also tap into Serato's software FX collection for even more flexibility.

Convenient Compatibility with Engine DJ

SYSTEM ONE is the first RANE standalone DJ system, designed to make the transition to standalone seamless. Engine DJ desktop software enables full import of Serato DJ libraries, including crates, hot cues, loops, BPM, key, and metadata, allowing you to transfer your collection to USB, SD card, or internal hard drive (sold separately) and perform without a laptop.

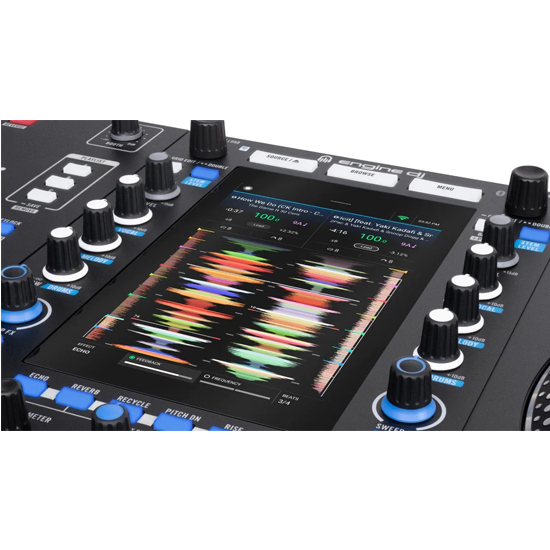

High-Def Touchscreen with Instant Visual Feedback

Browse tracks, monitor deck status, visually cue and mix with moving RGB waveforms, and control FX and lighting from a single streamlined interface. Customizable views allow vertical or horizontal waveforms, optional track lists, and Day Mode for an optimized workflow.

Immediate Access to Every Track

Playlist Banks let you save and instantly access favorite Engine DJ or streaming playlists and Serato DJ crates. Three dedicated buttons provide fast recall, keeping essential tracks and playlists one tap away.

Performance Pads with OLED Displays

Eight performance pads per deck feature dynamic RGB lighting that reflects the active pad mode, with custom colors for Hot Cues and Loops. OLED displays above the pads provide instant visual feedback, showing Hot Cue and Sample names, Stem elements, and Roll beat divisions.

Integrated SoundSwitch Lighting Control

Wirelessly connect to Philips Hue and Nanoleaf smart lighting for automated light shows at home, ideal for livestreams and content creation. With a SoundSwitch Micro DMX interface or Control One, SYSTEM ONE can control DMX lighting fixtures with beat-synced Auto Loops and on-screen override controls.

Pro-Level Sound and Connections

SYSTEM ONE delivers signature RANE high-fidelity audio with versatile I/O for any setup. Outputs include XLR Main, RCA Main, ¼″ Booth, and Bluetooth. Inputs include a selectable Bluetooth/RCA auxiliary input with front volume knob and two XLR combo mic inputs with EQ, Echo, Reverb, Talkover, and Anti-Feedback. An on-screen 10-band EQ allows detailed sound shaping for both Main and Booth outputs.

Specifications

• Digital Audio
• Converters
  • Cirrus Logic, 24-bit PCM, 44.1 kHz
• Digital Signal Processing
  • 32-bit, Floating Point, Double Precision
• Audio Outputs
  • Main Output (XLR, RCA stereo pair)
    • DAC: 24-bit
    • Dynamic Range: 117 dB
    • Output Type: Balanced XLR
    • Max Output Level (XLR): 8 Vrms
    • Max Output Level (RCA): 4 Vrms
    • Frequency Response: 20 Hz–20 kHz: +0, -1 dB
    • THD+N: 0.002% @ 1 kHz, 4 Vrms
    • Channel Separation: > 80 dB
    • Input Gain Trim Range: Off to +12 dB
    • Output Level Range: Off to 0 dB
• Booth Output (1/4" [6.35 mm] TRS)
  • DAC: 24-bit
  • Dynamic Range: 117 dB
  • Output Type: Balanced TRS
  • Max Output Level: 8 Vrms
  • Frequency Response: 20 Hz – 20 kHz: +0, -1 dB
  • THD+N: 0.002% @ 1 kHz, 4 Vrms
  • Channel Separation: > 80 dB
  • Input Gain Trim Range: Off to +12 dB
  • Output Level Range: Off to 0 dB
• Headphone Output (1/4" and 1/8" TRS)
  • DAC: 24-bit
  • Dynamic Range: 117 dB
  • Output Type: Stereo TRS (1/8" and 1/4" jacks)
  • Cue Features: Cue / Split Cue
  • Max Output Level (No Load): 4 Vrms
  • Max Power Output @ 50 O: 150 mW
  • Frequency Response: 20 Hz – 20 kHz: +0, -1 dB
  • THD+N @ 1 kHz, 4 Vrms (No Load): 0.002%
  • THD+N @ 1 kHz, Full Power @ 50 O: 0.08%
  • Channel Separation: > 80 dB
  • Level Control Range: Off to 0 dB
• Inputs (Combo XLR/1/4" TRS)
  • ADC: 24-bit, 115 dB DR
  • Input Type: Balanced XLR/TRS combo
  • Max Input Level: 110 mV
  • Analog Gain: 25 dB
  • Max System Gain: 60 dB
  • Frequency Response @ 20 Hz: -2.5 dB
  • Frequency Response @ 20 kHz: -5 dB
  • THD+N @ 0.1 Vin, Gain = 25 dB: 0.015% (100 Hz–20 kHz)
  • DR (A-weighted), Gain = 25 dB: 102 dB
  • DR (A-weighted), Gain = 60 dB: 72 dB
  • IRN (A-weighted), Gain = 60 dB: -132 dB
  • IRN (20 Hz–20 kHz), Gain = 60 dB: -130 dB
• Auxiliary Input (RCA stereo pair)
  • ADC: 24-bit, 115 dB DR (A-weighted)
  • Input Type: Unbalanced RCA
  • Max Input Level: 4 Vrms
  • Frequency Response: 20 Hz – 20 kHz: +0, -1 dB
  • THD+N @ 3 Vrms, Unity Gain: 0.005% (20 Hz–20 kHz)
  • Gain Range: Off to +12 dB
  • DR (A-weighted), Unity Gain: 108 dB
  • Crosstalk: = -90 dB
• Performance Pads
  • 16 total, on/off multi-color back-lit (8 per deck)
• Faders
  • Channel Faders: 2 PRECISION FEEL tension-adjustable with contour and reverse
  • Crossfader: 1 MAG FOUR tension-adjustable with contour and reverse
• Displays
  • Main Display: 7"/178 mm full-color LED-backlit display with touch interface
  • Pad Displays: (8) 128 x 32 monochrome OLEDs
• CPU
  • Processor: Quad-core ARM
  • RAM: 4 GB
• Wi-Fi & Bluetooth
  • Wi-Fi: 2.4GHz/5GHz, 802.11a/b/g/n/ac, Wi-Fi 5
  • Bluetooth: v5.4
• Supported Media
  • File Systems: exFAT (recommended), FAT32
  • Playable Formats: AAC/M4A, AIF/AIFF, ALAC, FLAC, MP3, MP4, Ogg Vorbis, WAV
  • Streaming Services: Amazon Music Unlimited, Apple Music, Beatport, Beatsource, SoundCloud Go+, TIDAL
• Lighting
  • Onboard Smart Lighting: Philips Hue, Nanoleaf
  • Supported DMX: SoundSwitch DMX Micro, SoundSwitch Control One
• Power (Internal with locking IEC)
  • Input Type: Locking IEC
  • Input Voltage: 100–240 VAC
  • Frequency: 50/60 Hz
  • Power Consumption: 150 W
• General
  • Dimensions (W x D x H): 29.00 x 15.87 x 5.70 in / 73.66 x 40.30 x 14.47 cm
  • Weight: 29.4 lbs (13.33 kg)

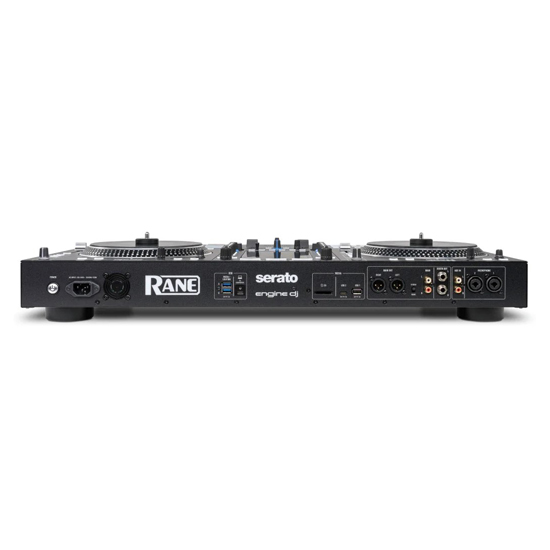

• Connections
  • Inputs
    • Microphones: Mic 1: XLR + 1/4" Combo Jack; Mic 2: XLR + 1/4" Combo Jack
    • Aux: Stereo Pair (RCA)
  • Outputs
    • Main: (2) XLR, Stereo Pair (RCA)
    • Booth: (2) 1/4" TRS Jacks
    • Headphones: 1/4" Stereo Jack, 3.5-mm Stereo Mini-Jack
  • Media Inputs
    • USB: USB 1 Type-A (USB 2.0), USB 2 Type-C (USB 3.0), USB 3 Type-A (USB 3.0), USB 4 Type-A (USB 3.0), USB to Computer Type-C (USB 3.0)
    • SD Media: SD, SDHC, SDXC
    • Internal HD: SATA 3.0
