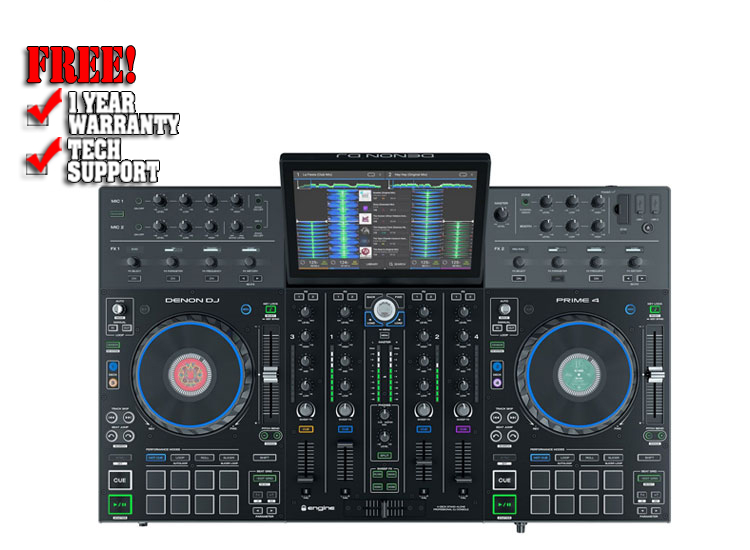

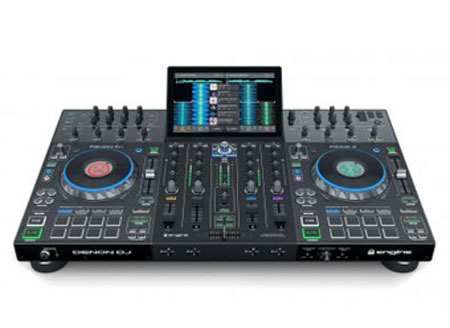

Denon Prime 4

4-DECK, 'ALL-IN-ONE' STANDALONE DJ SYSTEM

• Touch, move and orchestrate your digital music with the DJ world's most advanced, multi-gesture touchscreen
• Entertain two separate audiences - Rock the dancefloor in one room and Zone output to a different location simultaneously
• Access and play your tracks, fully standalone, from literally unlimited sized music collections and media sources
• Multicore processor powered, gig ready, rugged metal chassis and renowned Denon DJ pristine audio quality

MULTI-GESTURE 10" TOUCHSCREEN: FEEL YOUR MUSIC

• View 4-deck waveforms in glorious color
• Search, select and load your tracks
• Create playlists and crates on-the-fly
• Monitor all essential DJ parameters and info

The Essential Selection

PLAY MUSIC IN TWO SEPARATE ROOMS

• Dedicated XLR Zone output with gain and EQ control
• Stream back-to-back music automatically into second room
• Assign either Deck 4 or Master signal to Zone output
• Party in one room, chill-out in the other

NO LIMITS MEDIA SOURCES

• Bring massive music libraries to gigs
• 4 USB inputs, 1 x SD card slot
• Futureproof storage with built-in 2.5" SATA drive bay
• Record a full DJ set to any connected source
• USB keyboard support for optional music search
• Plays uncompressed audio formats (FLAC, ALAC, WAV)

MIX, BLEND AND SHAPE YOUR SOUND

• 4-channel line faders, each with 3-band EQ and gain
• Single encoder, (4) sweep FX and filter control
• 14 Mainstage quality Post-Fader FX
• Inputs are assignable for external media sources
• Replaceable Denon DJ flex Crossfader

DUAL MICROPHONE CONTROL

• No compromise of line fader - 2 dedicated mic channels
• Control EQ, level and echo effects on both mics
• Punch in on/off and talkover option for pro-mobile use
• 2 dedicated TRS mic inputs

ENGINE PRIME MUSIC MANAGEMENT

Import your lovingly constructed digital music collections from iTunes, Serato DJ Pro, Native Instruments Traktor Pro and Rekordbox® using both Denon DJ's free, Engine Prime music management software and the Prime 4 itself

• Bring in existing playlists, folders, hot cues and loop information
• Create playlists, crates, audition mixes and edit track info
• Prime 4 internally analyses music data with no laptop needed

AUDIO

• Bit Depth:24-bit
• Sampling Rate:44.1kHz
• Dynamic Range:> 117dB (A-weighted)
• Frequency Response:20Hz to 20kHz (+/-1dB)
• Signal-to-Noise Ratio:> 93dB (A-weighted)
• Headroom:Line: > 15dB
• Microphone: > 20dB
• Outputs: > 20dB

CHANNEL SEPARATION

• < -90dB (1kHz, unity)

THD

• Line/Phono:< 0.01% (1kHz, unity)
• Microphone:< 0.02% (1kHz, unity)

ANALOG INPUT

• Line:0dBV (unity), +15dBV (maximum)
• Microphone:-40dBu (unity), -60dBu (minimum)

ANALOG OUTPUT

• Master Balanced:+4dBu (unity), +24dBu (maximum)
• Master Unbalanced:0dBu (unity), +20dBu (maximum)
• Zone Balanced:+4dBu (unity), +24dBu (maximum)
• Booth:+4dBu (unity), +24dBu (maximum)
• Headphone:< 150mW

SUPPORTED MEDIA

• Type:SD/SDHC card
• USB mass-storage devices (flash memory, 2.5 internal SATA, and external HDD enclosures)
• File Systems:exFAT
• FAT32 (recommended)
• Supported Audio File Formats:AAC/M4A
• AIF/AIFF (44.1-192kHz, 16-32-bit)
• ALAC
• FLAC
• MP3 (32-320 kbps, VBR)
• MP4
• Ogg Vorbis
• WAV (44.1-192kHz, 16-32-bit)

DISPLAYS

• Main:10.1" / 257 mm (diagonal)
• 8.5" x 5.5" / 216 x 139 mm (width x height)
• Full-color LED-backlit display with touch interface
• Jog Wheel:2.2" / 56 mm (diameter)
• Full-color LED-backlit display
• FX:128 pixels wide x 32 pixels high
• Black & White OLED display

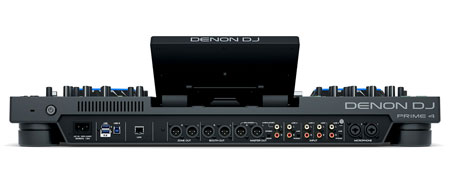

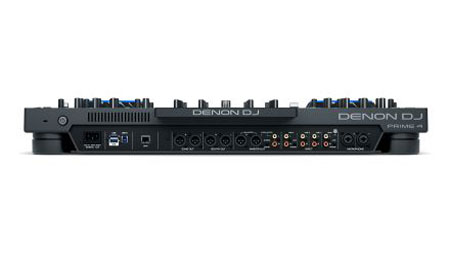

CONNECTIONS

• (6) Professional grade Neutrik XLR outputs (Master, Zone, and Booth)
• (2) Professional grade Neutrik XLR+1/4" (6.35 mm) microphone inputs
• (1) RCA output pair (Master)
• (4) RCA input pairs (line/phono channel 3 & 4)
• (1) 1/8" (3.5 mm) output (headphone)
• (1) 1/4" (6.35 mm) output (headphone)
• (1) Ethernet link port
• (1) IEC power inlet
• (4) USB type A media port (female)
• (1) USB type B host port (female)
• (1) SD card slot
• (1) SATA + power for internal 2.5" hard drive

POWER

• Connection:IEC
• Input Voltage:110-240 VAD, 50/60 Hz
• Consumption:38W ~ 39W (without mobile device charging on USB port 4)
• 43W ~ 45W (with mobile device charging on USB port 4)

DIMENSIONS (WIDTH X DEPTH X HEIGHT)

• 728.47 x 496.82 x 103.63 mm
• 28.68" x 19.56" x 4.08"

WEIGHT

• 21.34 lb
• 9.7 kg
