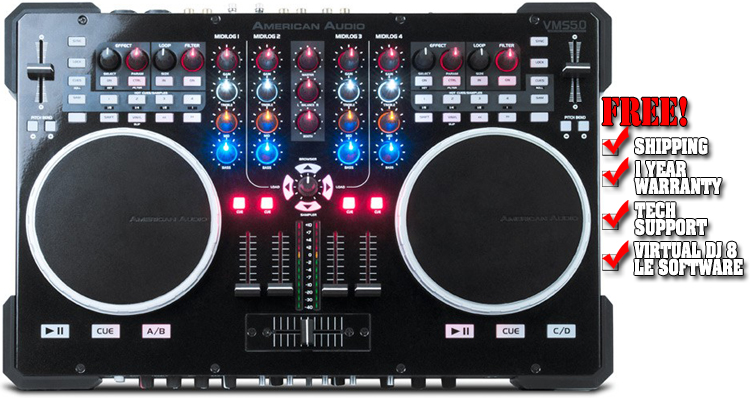

American Audio VMS5

Description:

The American Audio VMS5 is one of the most comprehensive DJ Controller ever designed for performance minded DJs looking for a solid, all-in-one Midi Controller to control their software and music from their laptop (4 Deck and 2 Deck DVS!), plus have option to use the stand alone mixer as a tradition analog mixer with 4 line inputs, 2 Phono inputs and 2 Microphone inputs. In addition, some general features include 4 USB / Analog selectable Midilog (Midi & Analog) channels, gain/treble/mid/bass EQ on all MIDILOG channels.

Pro Features include: The Inno-fader compatibility (the VMS Series was the first controls to offer this) with curve control and assign and reverse, XLR master output with Balance & Booth output. DSP D-Core inside with studio quality audio engineerinp + pro stage microphone circuitry. It has 34 assignable rotary controllers, 4 assignable rotary encoders, 50 MIDI buttons with LED illuminations, including 18 with dual blue/red LEDs.

VMS 5 has 62 Assignable MIDI buttons and switches, dual 2000 point resolution touch sensitive turntable scratch controls, dual MIDI Controls on all buttons and switches, 5 assignable linear fader controllers, two 10-bit resolutions pitch sliders, and multi-functional rotary browser with 4 function buttons.

Features:

Midi Controller with 4 USB / Analog selectable MIDILOG™ (Midi & Analog) channels
All audio control faders, knobs, switches, and buttons smoothed - eliminates popping, wiper noise, and zipper noise
On/Off soft startup and turnoff
Gain/treble/mid/bass EQ on all MIDILOG™ channels
2 phono/line selectable analog channels
Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
On/off cueing on each MIDILOG™ channel
Split cueing headphones with rotary mix control
Illuminated rubber knobs for ease of use in dark environments
Solid 1.6mm thick faceplate for extra durability
Panel mounted rotary knobs
Full analog mixer operation if the computer crashes or with external power supply
Innofader replaceable crossfader compatible (sold separately)
Crossfader curve control
Crossfader assign and reverse
Q-Start crossfader controlled startup for 2 external audio players
User replaceable channel faders
Master and Booth outputs with L/R balance
Balanced Master outputs
12 position stereo master output VU meter
Dimensions (LxWxH): 19"x12.75"x1.5" / 482x325x40mm
Weight: 13 lbs. / 6 kg.
PDF Manual

MIDI FEATURES:

Built-in mouse pad
Long life MIDI assignable touch strips
Two 10- bit resolution pitch sliders
62 assignable MIDI buttons and switches
50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
4 assignable rotary encoders
34 assignable rotary controllers
5 assignable linear fader controllers
Dual MIDI controls on all buttons and switches
Dual 2000 point resolution touch sensitive turntable scratch controllers

AUDIO FEATURES:

24-bit 48 kHz analog audio
16-bit 44.1kHz USB audio
10-bit resolution on all analog fader controls
THD <0.1%*
Channel separation >60dB*
S/N ratio >85dB*
Analog channel audio latency < 1msec
Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog channels or 2 in 8 out mode for running 4 software channels and master recording
2 msec response on all buttons
4 msec response on all rotary and linear faders
1 msec USB latency
