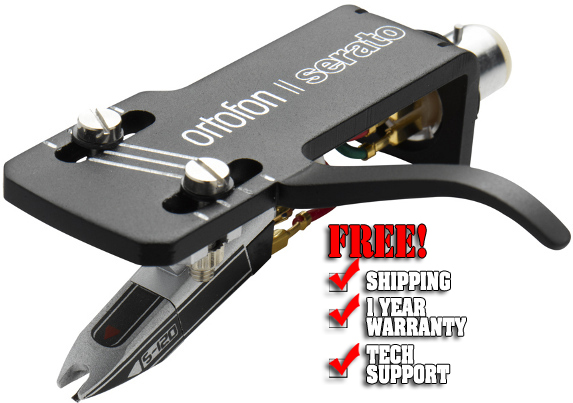

Ortofon Serato S-120 OM Pre-Mounted on a Headshell
Ortofon Serato S-120 OM Pre-Mounted on a Headshell
Description
The Ortofon-Serato S-120 represents a completely new way of constructing and designing cartridges. Its breakthrough patent pending technology has been designed to provide you with maximum freedom for your performance. An innovative technology, called asymmetric suspension, takes the cartridge performance to the next level. Its superior tracking force ensures the S-120 stays in the groove even under extreme live performance conditions. In addition, its design achieves an unprecedentedly low level of record wear, which helps protect your valuable vinyl. On top of this, the S-120 is capable of providing a level of sound quality never thought possible from a modern DJ cartridge.
Features:
- High quality tonearm terminal connections
- Mounting guides for straight and S-shaped tonearms
- Special markings which makes it easy to mount the OM S-120 in two favourite spots:
- 0° which is Ortofon standard set-up
- 22° as it is preferable for some of DJs
- Output voltage at 1000 Hz, 5 cm/sec.: 10 mV
- Channel balance at 1 kHz: 1,5 dB
- Channel separation at 1 kHz: 20 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range at -3 dB: 20-18.000 Hz
- Frequency response: 20-18.000 Hz +3 dB/-2dB
- Tracking ability at 315 Hz at recommended tracking force: 120 μm
- Compliance, dynamic, lateral: 11 μm/mN
- Stylus type: Spherical
- Stylus tip radius: R 18 μm
- Tracking force range: 1,5 - 10,0 g (15 - 100 mN)
- Tracking force recommended: 4,0 g (40 mN)
- Internal impedance, DC resistance: 1680 Ohm
- Internal inductance: 920 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 200-600 pF
- Cartridge weight: 5 g
- Replacement stylus unit: S-120
