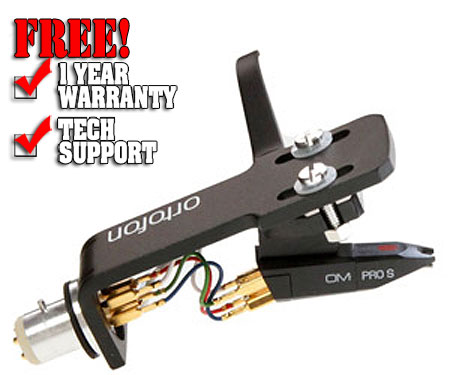

Concorde Pro S OM Pre-Mount

Description

Entry-level cartridge for all-purpose use.

New DJ? This entry-level cartridge is perfect for newcomers on the DJ scene who want to start off with decent, but not too expensive equipment.

The Pro S has a spherical diamond stylus which minimizes scratching and a solid cantilever which can survive hectic activity at the turntable. No matter what the application, the Pro S provides remarkable versatility for virtually any setting. The sound quality is absolutely not to worry about.

The Pro S is a consistent performer and a fine all-arounder!

Features:

• Output voltage at 1000Hz, 5cm/sec.: 5 mV
• Channel balance at 1kHz: 2 dB
• Channel separation at 1kHz: 20 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at -3dB: 20-20.000 Hz
• Frequency response: 20-18.000 Hz +/- 2 dB
• Tracking ability at 315 Hz at recommmende tracking force: 70 μm
• Compliance, dynamic lateral: 7 μm/m N
• Stylus type: Spherical
• Stylus tip radius: R 26 μm
• Tracking force range: 3,0-5,0 g (30-50 mN)
• Tracking force recommended: 4,0 g (40 mN)
• Tracking angle: 20°
• Internal impedance, DC resistance: 750 Ohm
• Internal inductance: 450 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 200-600 pF
• Cartridge weight: 18,5 g
• Replacement stylus unit: Pro S
