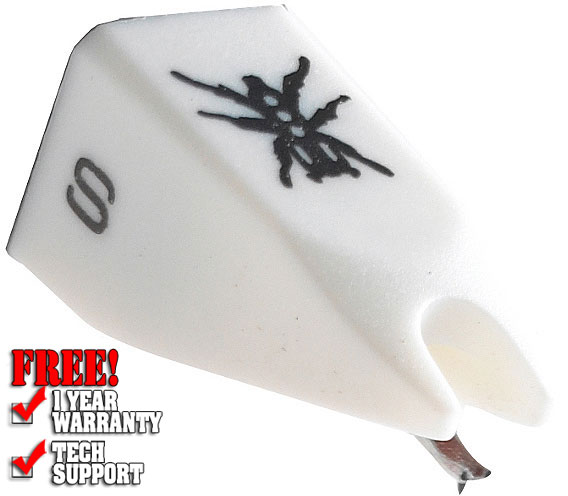

Concorde Q-Bert Stylus

Description

Co-designed by DJ Q.Bert for scratch and back-cueing. High tracking ability. Ultra high output Co-developed by one of the most legendary DJs of all time, the Ortofon Q.Bert provides unsurpassed handling, high output voltage, and low wear characteristics that literally put it in a class of its own. Turntablists and mix DJs alike will appreciate the strong output of this cartridge, coupled with unrivaled tracking ability and sonic characteristics. The Q.Bert features a more subdued high end, which helps to minimize surface noise from worn vinyl, and an accentuated mid-range to help bring scratching to the front of the sound stage. The Q-Bert has a supreme ability to trace the grooves of your records and it is tailored specifically for scratch. Due to its enomous output, it is perfect for scratch of all music with deep bass frequences.

Features:

• Output voltage at 1000Hz, 5cm/sec.11 mV
• Channel balance at 1kHz1,5 dB
• Channel separation at 1kHz22 dB
• Channel separation at 15 kHz–
• Frequency range at -3dB20-18.000 Hz
• Frequency response20-18.000 Hz -3 dB
• Tracking ability at 315 Hz at recommmende tracking force90 μm
• Compliance, dynamic lateral12 μm/m N
• Stylus typeSpherical
• Stylus tip radiusR 18 μm
• Tracking force range2,0-4,0 g (20-40 mN)
• Tracking force recommended3,0 g (30 mN)
• Tracking angle20°
• Internal impedance, DC resistance1.680 Ohm
• Internal inductance920 mH
• Recommended load resistance47 kOhm
• Recommended load capacitance200-400 pF
• Compatible with cartridgesQ.Bert
