Ortofon OM Q.Bert premounted on SH-4 Black

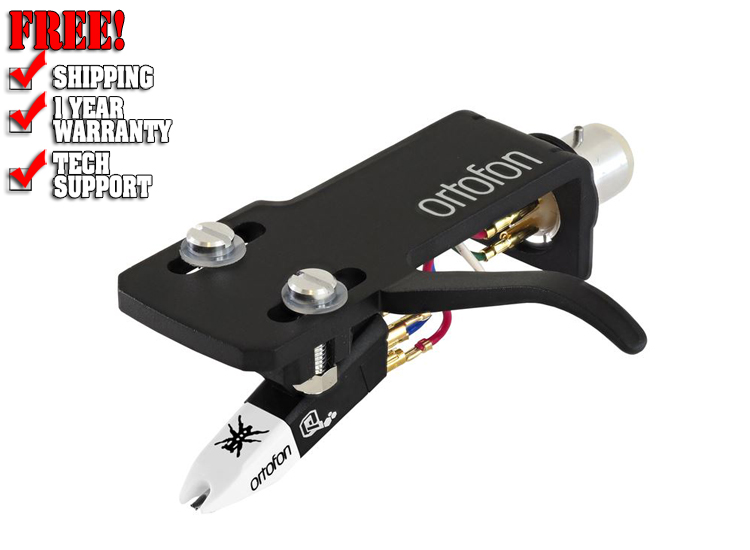

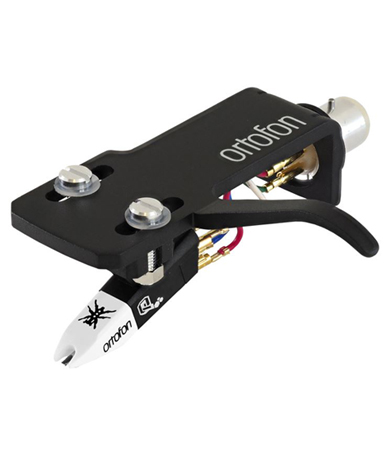

OM Q.Bert pre-mounted on SH-4 Black headshell

The OM Q.Bert on the SH-4 Black headshell is a practical and convenient solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm.

Features:

• Universal mount fitting a wide range of S-shaped tonearms
• Ultra high output
• Low wear characteristics

• Output voltage at 1000Hz, 5cm/sec. - 11 mV
• Channel balance at 1kHz - 1,5 dB
• Channel separation at 1kHz - 22 dB
• Tracking ability at 315 Hz at recommended tracking force - 90 μm
• Compliance, dynamic lateral - 12 μm/m N
• Stylus type - Spherical
• Stylus tip radius - R 18 μm
• Tracking force range - 2 - 4 g
• Tracking force recommended - 3 g

• Tracking angle - 20°
• Internal impedance, DC resistance - 1.680 Ohm
• Internal inductance - 920 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 200-400 pF
• OM cartridge weight incl. extra weight - 5 g
• Replacement stylus unit - Q.Bert
