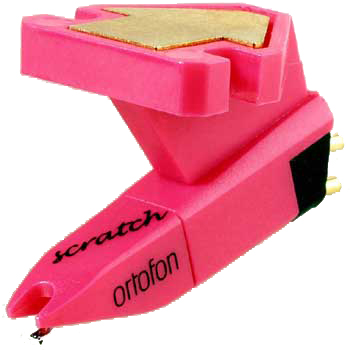

OM SCRATCH

Ortofon DJ Cartridge and Stylus Maintenance

Our recommendation when adjusting anti-skating for the Ortofon Scratch cartridge, will only be about 2 gram, at the 4 gram recommended tracking force, because of the abnormal behavior of the tonearm when backcuing. To obtain optimal stylus performance, remove dust from the stylus regularly by using the small brush supplied with the cartridge by guiding the brush gently forwards in the direction of the diamond tip. From time to time clean the gold plated contact points on the Concorde cartridge or head shell with a small amount of propyl alcohol. Also the contacts inside the tonearm - now and then - will need this type for cleaning to avoid dust or sticky material to result in annoying disconnection. We do not recommend the use of propyl alcohol for cleansing the record surface, as resolved material will stick to the diamond tip causing deteriorated groove contact. As a consequence, the Ortofon warranty might not be valid when playing on wet record surfaces. Just clean the record with a fine brush or dustless cloth before playback. Among the technical qualities - referred to by the DJ's after testing - was the Sound, the very high output of 7mVolt and the very clear picture of the stylus position on the record surface. Having tested the new Scratch cartridge one American top DJ claimed: "I couldn't get it to jump out of the groove".

Details on the Ortofon Scratch

For DJs that require increased tracking ability, the Scratch is up to the task. Featuring a reinforced rubber suspension, DJs need not worry about compromising sound quality and stylus life when working with higher tracking forces. With solid bass reproduction and extended highs, the Scratch is great for any style, providing energetic, in-your-face sound.

Ortofon Scratch Technical Data

• Output voltage at 1000 Hz, 5cm/sec. 7 mV

• Channel balance at 1 kHz 1,5 dB

• Channel separation at 1 kHz 25 dB

• Channel separation at 15 kHz 15 dB

• Frequency range at - 3dB 20-20.000 Hz

• Frequency response 20-15.000 Hz + 2 / - 3 dB

• FIM distortion at recommended tracking force, DIN 45.542 < 1 %

• Tracking ability at 315Hz at recommended tracking force 80 μm

• Compliance, dynamic, lateral 6 μm / mN

• Stylus type Spherical

• Stylus tip radius R 18 μm

• Equivalent stylus tip mass 0,6 mg

• Tracking force range 3,0-5,0 g (30-50 mN)

• Tracking force, recommended 4,0 g (40 mN)

• Tracking angle 20°

• Internal impedance, DC resistance 750 Ohm

• Internal inductance 450 mH

• Recommended load resistance 47 kOhm

• Recommended load capacitance 200-600 pF

• Cartridge color, body/stylus Neon red / Neon red

• Cartridge weight 18,5 g

• Replacement stylus unit Scratch
