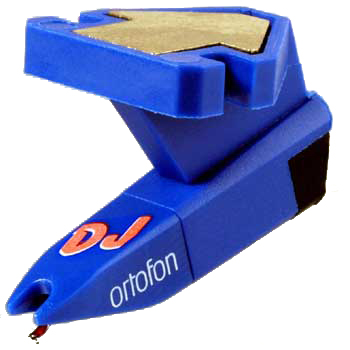

OM DJ E

Features:

• Output voltage at 1000 Hz, 5cm/sec.: 6 mV
• Channel balance at 1 kHz: 2 dB
• Channel separation at 1 kHz: 23 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at - 3dB: 20-22.000 Hz
• Frequency response: 20-20.000 Hz +/-2dB
• FIM distortion at recommended tracking force, DIN 45.542: < 1%
• Tracking ability at 315Hz at recommended tracking force: 80 μm
• Compliance, dynamic, lateral: 9 μm/mN
• Stylus type: Spherical elliptical
• Stylus tip radius: r/R 13/25μm
• Equivalent stylus tip mass: 0,6 mg
• Tracking force range: 2,0-4,0 g (20-40 mN)
• Tracking force, recommended: 3,0 g (30 mN)
• Tracking angle: 20°
• Internal impedance, DC resistance: 750 Ohm
• Internal inductance: 450 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 200-600 pF
• Cartridge colour, body/stylus: Blue/Blue
• Cartridge weight: 5 g
• Replacement Stylus unit: DJ E
