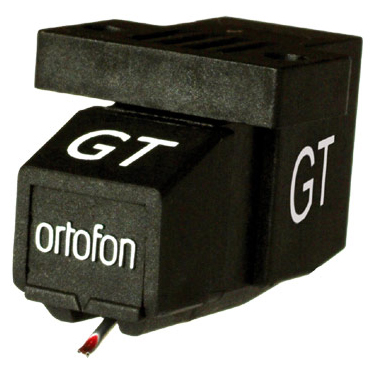

Concorde GT

The Ortofon Pro cartridges were the first to combine the unrivalled Ortofon sound quality with the ruggedness that is a must for professional use.

Many years of experience from producing disco cartridges, and a close contact to DJ's, have resulted in several lines suitable for all tonearms and all amplifiers. The Ortofon disco cartridges are available in ½ inch versions for mounting in standard headshells or in the elegant integrated Ortofon Concorde design - for direct mounting in tonearms with standard sockets. For easier cueing, the nose of all the Ortofon disco cartridges has an extra large cut-out which makes the stylus freely visible from above, and further, the tip of the cantilever is fluorescent.

Features:

• Output voltage at 1000 Hz, 5cm/sec. 8 mV
• Channel balance at 1 kHz 1,5 dB
• Channel separation at 1 kHz 25 dB
• Channel separation at 15 kHz 18 dB
• Frequency range at - 3dB 20-20.000 Hz
• Frequency response 20-18.000 Hz +3 / -2 dB
• FIM distortion at recommended tracking force, DIN 45.542 < 1%
• Tracking ability at 315Hz at recommended tracking force 80 μm
• Compliance, dynamic, lateral 6 μm/mN
• Stylus type Spherical
• Stylus tip radius R 18 μm
• Equivalent stylus tip mass 0,6 mg
• Tracking force range 3,0-5,0 g (30-50 mN)
• Tracking force, recommended 4,0 g (40 mN)
• Tracking angle 20°
• Internal impedance, DC resistance 1 kOhm
• Internal inductance 580 mH
• Recommended load resistance 47 kOhm
• Recommended load capacitance 200-400 pF
• Cartridge colour, body/stylus Black/Black
• Cartridge weight 5 g
• Replacement stylus unit GT
