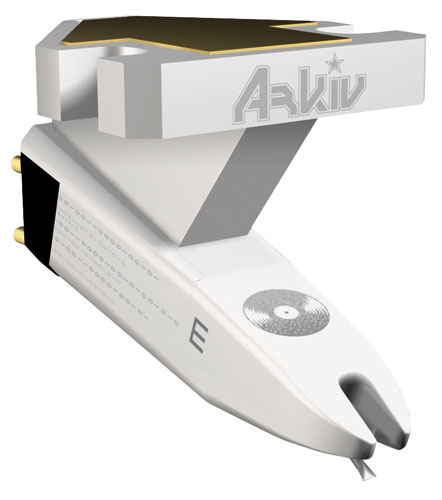

OM Arkiv

Description

This cartridge has been specially designed to provide optimized sound quality specifically for recording purposes. The Arkiv boasts clear and accurate sound reproduction and remarkable stereo imaging, making it perfectly suited for sampling, transcription, and numerous other professioanl applications. Ships with an elliptical stylus for more detailed sound reproduction.

Features:

• Output voltage at 1000Hz, 5cm/sec: 6mV
• Channel balance at 1kHz: 2 dB
• Channel separation at 1kHz: 23 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at -3 dB: 20Hz-22kHz
• Frequency response: 20Hz-20kHz +/- 2dB
• Tracking ability at 315Hz at recommended tracking force: 80 mM
• Compliance, dynamic, lateral: 9mM/mN
• Stylus tip radius: r/R 13/25 mM
• Tracking force range: 2.0-4.0 g (20-40 mN)
• Tracking force recommended: 3.0 g (30 mN)
• Tracking angle: 20 degrees
• Internal impedance, DC resistance: 750 Ohms
• Internal inductance: 450 mH
• Recommended load resistance: 47 kOhms
• Recommended load capacitance: 200-600 pF
• Cartridge weight: 5 g
• Replacement stylus unit: Arkiv
