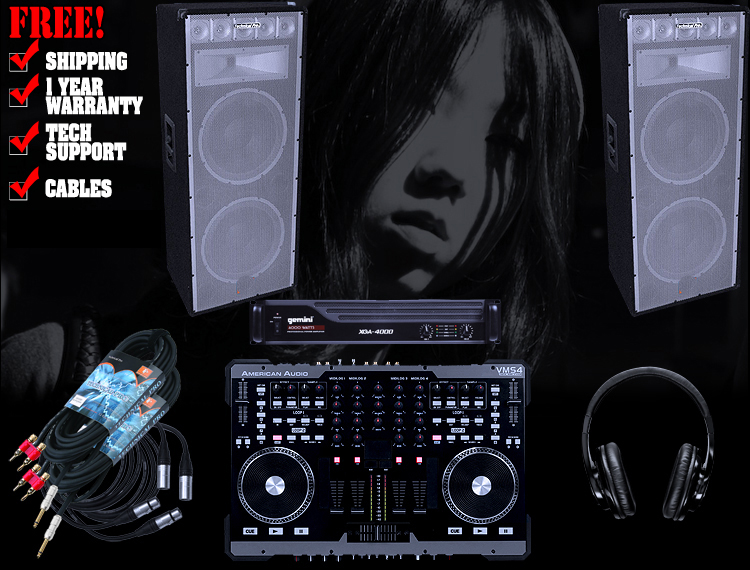

| VMS Mobile System 3 |
 |
Regular Price $2399.99
Our Price $1269.99
|
- American DJ VMS4 Digital DJ Station
- Midi Controller with 4 USB / Analog selectable MIDILOG™ (Midi & Analog) channels
- Traktor ready**
- All audio control faders, knobs, switches, and buttons smoothed – eliminates popping, wiper noise, and zipper noise
- On/off soft startup and turnoff
- Gain/treble/mid/bass EQ on all MIDILOG™ channels
- 2 phono/line selectable analog channels
- Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
- On/off cueing on each MIDILOG™ channel
- Split cueing headphones with rotary mix control
- Illuminated rubber knobs for ease of use in dark environments
- Solid 1.6mm thick faceplate for extra durability
- Panel mounted rotary knobs
- Full analog mixer operation if the computer crashes or with external power supply
- Innofader replaceable crossfader compatible (sold separately)
- Crossfader curve control
- Crossfader assign and reverse
- Q-Start crossfader controlled startup for 2 external audio players
- User replaceable channel faders
- Master and Booth outputs with L/R balance
- Balanced Master outputs
- 12 position stereo master output VU meter
Midi Features:
- Built-in mouse pad
- Long life MIDI assignable touch strips
- Two 10- bit resolution pitch sliders
- 62 assignable MIDI buttons and switches
- 50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
- 4 assignable rotary encoders
- 34 assignable rotary controllers
- 5 assignable linear fader controllers
- Dual MIDI controls on all buttons and switches
- Dual 2000 point resolution touch sensitive turntable scratch controllers
Audio Features:
- 24-bit 48 kHz analog audio
- 16-bit 44.1kHz USB audio
- 10-bit resolution on all analog fader controls
- THD <0.1%*
- Channel separation >60dB*
- S/N ratio >85dB*
- Analog channel audio latency < 1msec
- Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog
channels or 2 in 8 out mode for running 4 software channels and master recording
- 2 msec response on all buttons
- 4 msec response on all rotary and linear faders
- 1 msec USB latency
- Gemini XGA4000 Amplifier
- 4000 Watt IPP* High Power output to drive professional loudspeakers without clipping
- Front-to-rear airflow and cooling fan for thermal stability and reliability
- XLR and ¼” (6.5mm Jack) balanced and RCA unbalanced inputs
- Limiter circuit switch for amp output protection
- Stereo, Parallel Mono and Mono Bridge
- Variable speed fan for low noise
- Comprehensive front panel indicators including signal, clip, protect
- 3 Speakon outputs for Channels A/B/Bridge
- 5-way binding banana plug channel outputs
- Bridge control switch
- DC output protection and Short circuit protection
- Frequency response 10Hz – 50kHz at 1.5 dB
- Ground lift switch
- Total Harmonic Distortion: Less than 0.1%
- Input sensitivity & Impedance: 0.77v
- Signal to Noise (20 Hz - 20 kHz) > 90dB
- Two High Powered Speakers
- Two 50 oz. magnets
- Frequency Response: 45Hz-20kHz
- 1600 watts peak power
- Inputs: 1/4" (6.35mm), bare wire terminal
- Trapezoidal cabinet, perforated steel grill
- Woofer: Two 15" woofers, 2.5" voice coil, 50 oz. magnet
- Mid: 5" x 15" horn, compression driver 1.5" voice coil, 25 oz. magnet
- Tweeter: 5 piezo
- Sensitivity: 99 ±2dB (1W@1M)
- Impedance: 8 ohms
- Dimensions: 20.5"w x 47.5"h x 16.5"d (521 x 1207 x 420mm)
- Weight: 85 lbs (39 kg)
- All Connecting Cables
|
