| VMS612 |
 |
Regular Price $3799.99
Our Price $1999.99
|

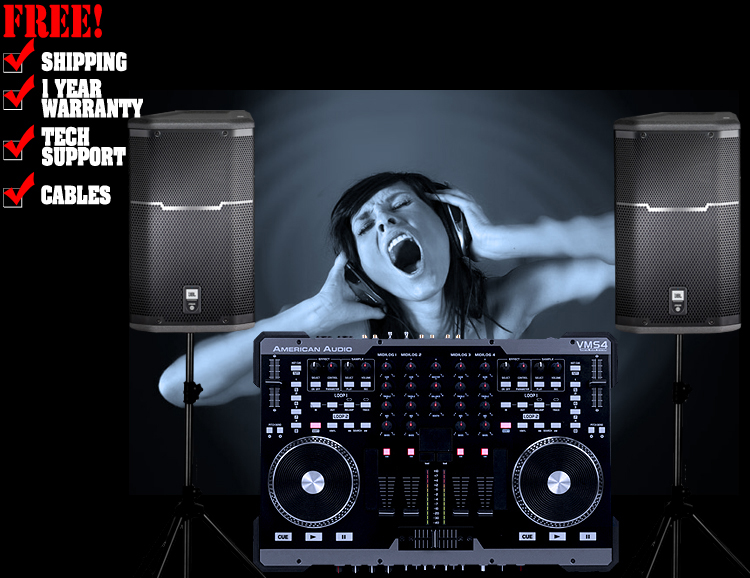

- American DJ VMS4 Digital DJ Station
- Midi Controller with 4 USB / Analog selectable MIDILOG™ (Midi & Analog) channels
• Traktor ready**
• All audio control faders, knobs, switches, and buttons smoothed – eliminates popping, wiper noise, and zipper noise
• On/off soft startup and turnoff
• Gain/treble/mid/bass EQ on all MIDILOG™ channels
• 2 phono/line selectable analog channels
• Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
• On/off cueing on each MIDILOG™ channel
• Split cueing headphones with rotary mix control
• Illuminated rubber knobs for ease of use in dark environments
• Solid 1.6mm thick faceplate for extra durability
• Panel mounted rotary knobs
• Full analog mixer operation if the computer crashes or with external power supply
• Innofader replaceable crossfader compatible (sold separately)
• Crossfader curve control
• Crossfader assign and reverse
• Q-Start crossfader controlled startup for 2 external audio players
• User replaceable channel faders
• Master and Booth outputs with L/R balance
• Balanced Master outputs
• 12 position stereo master output VU meter
Midi Features:
• Built-in mouse pad
• Long life MIDI assignable touch strips
• Two 10- bit resolution pitch sliders
• 62 assignable MIDI buttons and switches
• 50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
• 4 assignable rotary encoders
• 34 assignable rotary controllers
• 5 assignable linear fader controllers
• Dual MIDI controls on all buttons and switches
• Dual 2000 point resolution touch sensitive turntable scratch controllers
Audio Features:
• 24-bit 48 kHz analog audio
• 16-bit 44.1kHz USB audio
• 10-bit resolution on all analog fader controls
• THD <0.1%*
• Channel separation >60dB*
• S/N ratio >85dB*
• Analog channel audio latency < 1msec
• Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog
channels or 2 in 8 out mode for running 4 software channels and master recording
• 2 msec response on all buttons
• 4 msec response on all rotary and linear faders
• 1 msec USB latency
- Two JBL PRX612M Speakers
- System Type : Self-powered 12", two-way, bass-reflex
- Maximum SPL Output : Full Range: 134 dB peak
- Monitor: 133 dB peak
- Frequency Range (-10 dB) : Full Range: 50 Hz – 19.5 kHz
- Monitor: 51 Hz – 19.5 kHz
- Frequency Response (±3 dB) : Full Range: 60 Hz – 17.5 kHz
- Monitor: 61 Hz – 18.5 kHz
- Coverage Pattern : 90º x 50º nominal
- Amp Design : Crown® Class D
- Power Rating : 1000 W ( 2 x 500 )
- Dimension (H x W x D): 23.3 in x 13.9 in x 13.4 in
- Net Weight : 34.5 lb
- Maximum SPL 134db peak
- Dual purpose enclosure for both front-of house and floor monitor applications
- Eight M10 fly points for horizontal or vertical suspension. One M10 pull-back point
- Optimized EQ for monitor or front-of-house applications
- 305mm (12 in) Differential Drive® dual voice-coil and magnetic gap, neodymium woofer
- 37.5mm (1.5 in) annular polymer diaphragm, neodymium, compression driver
- 1000 Watt (Dual 500 watt) Class-D, Crown® amplifier
- DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
- Professional XLR line and ¼" Mic/Instrument inputs, with loop through
- Dual-angle pole mount socket
- PRX612M is the most compact and versatile speaker in the PRX600 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX612M is a perfect match with a PRX618S subwoofer, offering a high performance self-powered sub/sat system.
- The PRX612M is comprised of a 305 mm (12in) 265F Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1000 watt (dual 500 watt) Crown® Class-D digital power amplifier. A propriety DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
- All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
- The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level, via the level control knob.
- Two Speaker Stands
- FREE All Connecting Cables
|
