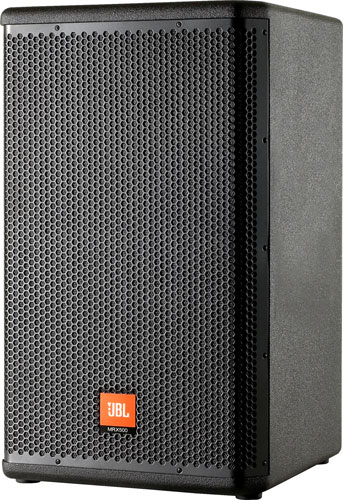

The MRX512M is a premium, utility/monitor speaker. It uses a JBL 262H 12" Differential Drive® woofer and a 2408H 1.5" annular polymer diaphragm, neodymium compression driver for 1600 watts power capacity. A 70° x 70° horn provides smooth, even coverage whether used in the vertical (mains) or horizontal (monitor) orientation. NL4 connectors are provided on both ends of the speaker to keep cable runs tidy on stage when used in the monitor application and for easy access when used on tripods. A passive network provides accurate reproduction throughout the cross-over region. For use on a tripod or over a subwoofer, JBL’s dual angle pole mount is included. This feature allows the speaker to be mounted in a vertical position or with a 10° down tilt for optimum audience coverage. The enclosure is constructed of quality plywood and coated in JBL’s rugged DuraFlex™ finish. The attractive CNC-machined, 16-gauge steel grille wraps around the sides of the enclosure. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.
12" Differential Drive® woofer for high-power capacity and very lightweight
1.5" annular polymer diaphragm compression driver
Compact and low-profile for minimal obstruction of audience sight-lines
70° x 70° coverage for even and smooth response on and off axis
Dual-angle pole socket for applications requiring tripod mounting
Heavy Duty 16 gauge protective screen backed steel grille
Tough DuraFlex™ enclosure finish
Frequency Range: 60 Hz - 20k Hz
Frequency Response: 90 Hz - 20k Hz
Sensitivity: 97dB SPL
Nominal Impedance: 8 ohms
Power Capacity: 1600 W
Rated Maximum SPL: 123 dB SPL continuous (129 dB SPL peak)
Coverage Pattern: 70º x 70º nominal
Size (H x W x D): 25.25" x 15" x 13.5"
Weight: 33 lbs
High Frequency Driver: 1 x JBL 2408H 1.5" annular polymer diaphragm, neodymium compression driver
Low Frequency Driver: 1 x JBL 262H 12" Differential Drive® woofer
MRX512M VALUE PACK BUY A PAIR AND GET CABLES FREE!
