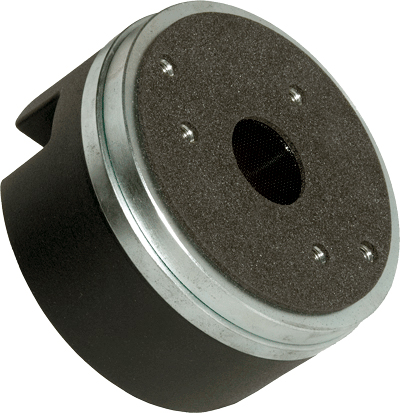

Faital Pro HF10RT Compression Driver

Regular Price $209.99 Our Price $179.99

NOMINAL SPECIFICATIONS Throat Diameter 25,4 mm (1 in) Overall Diameter 102 mm (4.02 in) Depth 54 mm (2.13 in) 180° Mounting Holes Diameter (2xM6) 76 mm (2.99 in) 120° Mounting Holes Diameter (3xM6) 57 mm (2.24 in) Net Weight 1.4 Kg (3.09 lb) Shipping Box 147x130x82 mm (5.79x5.12x3.23 in) ELECTRICAL SPECIFICATION Nominal Impedance 8 ohm Minimum Impedance 6.7 ohm Re 5.8 ohm Minimum Crossover Frequency * 1.3 kHz Sensitivity (1W/1m) ** 109 dB Frequency Range 0.8÷20 kHz Nominal Power Handling *** 60 W Maximum Power Handling **** 120 W Diaphragm Material Titanium Voice Coil Diameter 44 mm (1.73 in) Winding Depth Copper Clad Aluminium Former Material 2.45 mm (0.10 in) Magnetic Gap Depth Kapton Flux Density 2.75 mm (0.11 in) Flux Density 1.9 T NOTES Nominal Impedance 8 ohm Minimum Impedance 6.7 ohm Re 5.8 ohm Minimum Crossover Frequency * 1.3 kHz Sensitivity (1W/1m) ** 109 dB   Driver mounted on LTH102 horn (*) 12 dB/oct or higher slope high-pass filter (**) Averaged within the frequency range (***) Test made for 2 hours with Pink Noise signal (6 dB Crest Factor) from minimum crossover frequency. Power calculated on rated minimum impedance. Driver mounted on aluminium horn. (****) Maximum power is defined as 3dB greater than nominal power.
