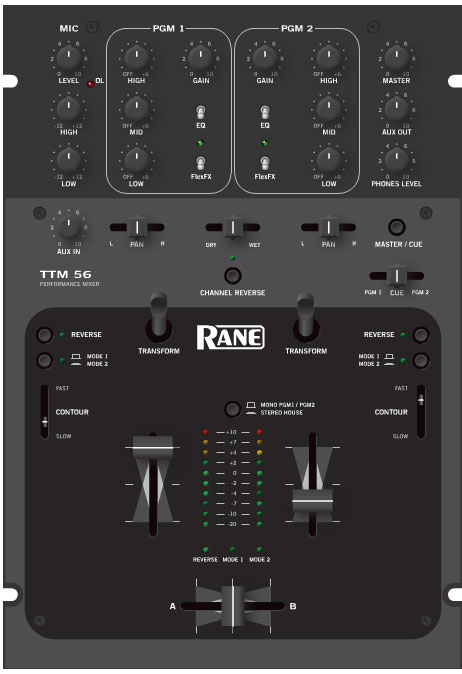

Rane takes performance mixer design as seriously as performing DJs take their art form. In an effort to provide the best instrument possible, Rane devoted two years of R&D to developing a mixer with unparalleled performance. The TTM 56 is flexible, durable, and feature packed. The audio quality of the TTM 56 qualifies it for use in the most demanding live venue, recording studio or live broadcast applications.

Non-Contact Crossfader and Channel Faders
Rane's new proprietary magnetic fader is the fastest, most accurate, and long lasting on the planet. The design uses non-contact magnetic position sensor technology previously reserved for the most demanding aerospace and industrial applications. No travel noise - No bleed - ever! Unlike optical non-contact faders, the magnetic fader is impervious to smoke, moisture, temperature and aging. The electrical performance of these faders is totally unaffected by use. The mechanical life of the magnetic fader exceeds 10 million operations.

These magnetic faders know exactly what your hand is doing! A proprietary curve-translation module converts your hand motion into precise audio level control. The TTM 56 offers the user more flexible curve selection and fader assignment options than ever before. This technology is used for both Channel Faders and the Crossfader.

The Crossfader control includes Reverse switch, Mode switch and independent, continuously adjustable Contours for A-side and B-side. In Mode 1, the Contour control adjusts from smooth blend to extremely fast cut. Select Mode 2 for center-cut effect (PGM 1 and PGM 2 off in the center) with full range Contour control.

The Channel Fader controls include Reverse switches, Mode switches and continuously adjustable Contours. In Mode 1, the Contour control adjusts from smooth blend to extremely fast cut. Select Mode 2 for Left/Right pan effect with Contour control. The Channel Reverse switch allows left and right hand Channel Faders to control Program 1 or Program 2.

Post-Fader FlexFxTM

Rane's proprietary FlexFx effects loop allows assigning post-fader Program 1, post-fader Program 2 or both to the effects loop. A Wet/Dry pan control gives the user total control of how much processed signal is in the mix. With the effects loop post-fader, reverb and other delay effects respond to both Channel Fader and Crossfader operation.

Stereo Metering
The TTM 56 features two 10-segment meters with peak-hold. A source switch allows users to select dual-mono Cue or stereo Master operation. No need to stress over dropping a channel without knowing.

Auxiliary Input and Output (Session Mix)
A stereo AUX Input with a Level control provides input for a session mix, drum machine or other auxiliary input signal. The stereo AUX Output with Level control provides output for Session Mix, Booth monitoring, recording or second zone.

3-Band Accelerated-SlopeTM EQ
The TTM 56 provides 3-band, full cut tone controls for Program 1 and Program 2. EQ engage switches allow A/B comparison and the ability to quickly cut or add EQ effect.

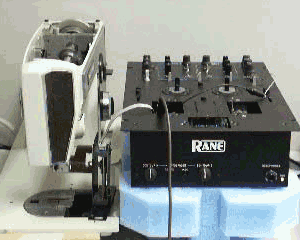

Magnetic Fader Testing The engineers at Rane employed a sewing machine to test the durability of the magnetic fader. Each stroke generated one count. We have it set to apply a million strokes to the fader every day. We tested 13 million strokes before we got tired of hearing the darn thing, and the fader shows absolutely no wear or degradation.

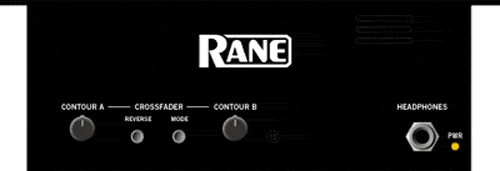

Front

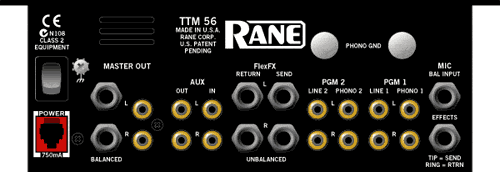

Back

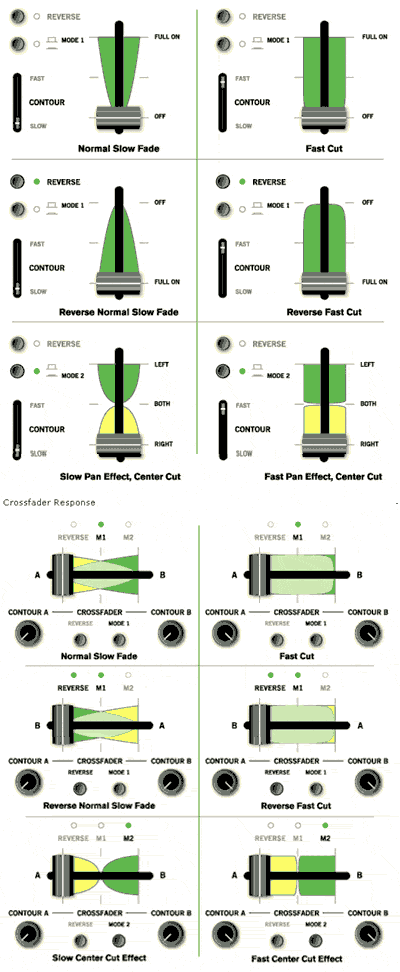

Channel Fader and Crossfader Response
For unprecedented creativity, the Crossfader and Channel Faders have a nearly infinite range of responses with the combination of the Reverse, Mode switches, and variable Contour Controls. The chart below illustrates the volume curves for slider positions between PGM 1 and PGM 2 on the Crossfader with various settings. Mode 1 is a normal Crossfade, while Mode 2 has a center-cut effect.
