• Controls 2 virtual decks + virtual mixer
• Rugged black casing

The next step in jog wheels

• Large 5.9"/15cm jog wheels: like 2 DJ CD players
• Touch detection + visual guidance
• High resolution, low latency

2x4 progressive pads with colored lights

• 2 sets of 4 pads send instant commands
• Intuitive for samples + cue controls
• Colors show the types of commands

Air control

• Instant, touchless control of effects
• The audience sees the performance thanks to a control range of 8"/20cm

Mechanical Specifications

• Enclosure: 17.9 x 10"/45.5 x 25.4 cm
• Jog wheels: 5.9"/15 cm diameter
• Weight: 5.5 lbs/2.5 kg

Standards

Audio

• ASIO + WDM in Windows
• Core Audio in Mac OS

Controls

• MIDI (extended MIDI on faders + potentiometers)
• HID

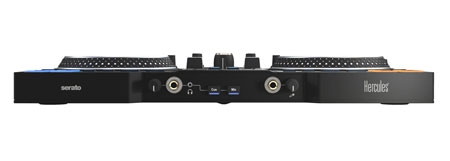

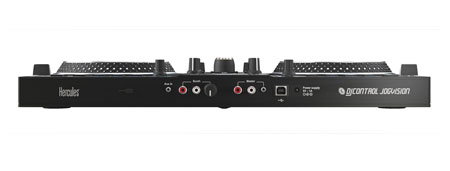

Outputs

• Master 1-2: 2 RCA + 1/8" stereo
• Booth 1-2: 2 RCA
• Headphones: 1/4" + 1/8" (stereo)

Inputs

• Mic1/4" microphone in
• Aux 1/8" stereo line in

Resolution

• 16/24-bit audio at 44.1/48/96 kHz

Minimum Configuration

• 2 GHz Core 2 Duo/Athlon 64 X2 or faster CPU
• 2 GB RAM or more, USB high speed port
• Internet access
• Operating system (32-bit/64-bit)
• Mac OS 10.7/10.8/10.9/10.10
• Microsoft Windows 7/8
