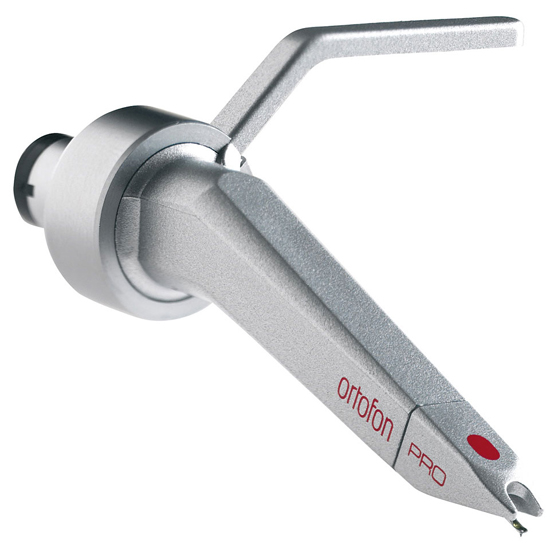

Concorde Pro

Features:

• Output voltage at 1000 Hz, 5cm/sec. 5 mV
• Channel balance at 1 kHz 2 dB
• Channel separation at 1 kHz 20 dB
• Channel separation at 15 kHz 15 dB
• Frequency range at - 3dB 20-20.000 Hz
• Frequency response 20-18.000 Hz +3/-2dB
• FIM distortion at recommended tracking force, DIN 45.542 < 1%
• Tracking ability at 315Hz at recommended tracking force 70 μm
• Compliance, dynamic, lateral 7 μm/mN
• Stylus type Spherical
• Stylus tip radius R 26 μm
• Equivalent stylus tip mass 0.5 mg
• Tracking force range 3.0-5.0 g (30-50 mN)
• Tracking force, recommended 4.0 g (40 mN)
• Tracking angle 20°
• Internal impedance, DC resistance 750 Ohm
• Internal inductance 450 mH
• Recommended load resistance 47 kOhm
• Recommended load capacitance 200-600 pF
• Cartridge colour, body/stylus Silver/Silver
• Cartridge weight 18.5 g
