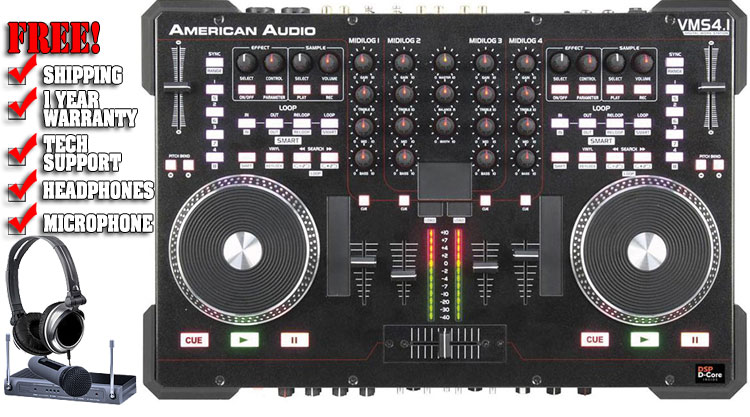

American Audio VMS4.1

Description:

The American Audio VMS4.1 is a 4-Channel Midi Controller that comes bundled with Virtual DJ LE software. The VMS4.1 features four MIDILOG™ Channels (compatible with any "MIDI Software"* or Analog Inputs - such as CD Players, Turntables, etc.), two microphone inputs, Balanced XLR outputs, a 4 In/4 Out Sound Card built-in, and comes with American Audio's exclusive "DSP D-Core" Audio Engine inside.

The VMS4.1 is designed for performance minded DJs looking for a solid, all-in-one Midi Controller to play MP3 tracks from their laptop, plus have the option to add CD Players and turntables to the mix.

4x Midilog™ Channels (Compatible with any "Midi Learn" Software or Analog Inputs - such as CD Players, Turntables, etc.)
DSP D-Core Inside: Studio Quality Audio Engine + Pro Stage Microphone Circuitry
2x Mics with Gain, Treble, Mid & Bass Control
Crossfader Curve Adjustment
Balanced XLR Outputs
Assignable Touch Strips
Built-in Mouse Pad
Built-in 4 In/4 Out Soundcard
Bundled with Virtual DJ LE Software

General Features:
Midi Controller with 4 USB / Analog selectable MIDILOG™ (Midi & Analog) channels
All audio control faders, knobs, switches, and buttons smoothed - eliminates popping, wiper noise, and zipper oise
On/Off soft startup and turnoff
Gain/treble/mid/bass EQ on all MIDILOGTM channels
2 phono/line selectable analog channels
Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
On/off cueing on each MIDILOGTM channel
Split cueing headphones with rotary mix control
Illuminated rubber knobs for ease of use in dark environments
Solid 1.6mm thick faceplate for extra durability
Panel mounted rotary knobs
Full analog mixer operation if the computer crashes or with external power supply
Innofader replaceable crossfader compatible (sold separately)
Crossfader curve control
Crossfader assign and reverse
Q-Start crossfader controlled startup for 2 external audio players
User replaceable channel faders
Master and Booth outputs with L/R balance
Balanced Master outputs
12 position stereo master output VU meter
Dimensions (LxWxH): 19"x12.75"x1.5" / 482x325x40mm
Weight: 13 lbs. / 6 kg.

MIDI Features:
Built-in mouse pad
Long life MIDI assignable touch strips
Two 10- bit resolution pitch sliders
62 assignable MIDI buttons and switches
50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
4 assignable rotary encoders
34 assignable rotary controllers
5 assignable linear fader controllers
Dual MIDI controls on all buttons and switches
Dual 2000 point resolution touch sensitive turntable scratch controllers

Audio Features:
24-bit 48 kHz analog audio
16-bit 44.1kHz USB audio
10-bit resolution on all analog fader controls
THD <0.1%*
Channel separation >60dB*
S/N ratio >85dB*
Analog channel audio latency < 1msec
Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog channels or 2 in 8 out mode for running 4 software
hannels and master recording
2 msec response on all buttons
4 msec response on all rotary and linear faders
1 msec USB latency

* For each audio channel, both line and phono mode

PC System Requirements:**
Windows XP Sp2 or Windows Vista (32-bit & 64-bit supported)
PIV 1.2GHz Computer (SSE2 CPU), AMD 64 or Greater
1024_768 SVGA Video
2 GIG RAM (Vista)
40MB Free on the Hard-Drive (Recommended 2000MB)
DirectX 9.0

Mac System Requirements:
Mac OS X 10.5 PPC/Intel, 10.5.6 Intel, or 10.6 Intel
1.86GHz
2GB RAM

** System Requirements may differ due to manufacturer software
