• Large DJ station for mobile computer DJs
• 2-deck/4-deck metal DJ controller to mix 2 or 4 stereo audio tracks

• 2 stereo out (for mixing & previewing) + 2 stereo in (for analog gear)

• Mobile metal controller: a large mixer (40x25cm) with included carry bag
• 2 large jog wheels with touch detection

• Jog wheel size: 12cm diameter (4.7") x 1.9cm height (0.75")

• Weight sensors, to detect the hand’s weight on the jog wheel top

• Great for scratching and seeking within audio tracks
• 2-deck & 4-deck control
• 2 shift buttons to turn deck A into deck C, and deck B into deck D

• 2-deck for standard DJ mixes, when mixing 2 audio tracks

• 4-deck mixing: double the controls when you mix 4 tracks
• VIRTUAL DJ7 LE included: 4-deck DJ mixing software

  • For Windows XP/Vista/7

  • For Mac OS® 10.5 & 10.6
• Large jog wheels with touch detection
• Same size as jog wheels on CD players
• 12cm (4.7") diameter: as large as a compact disc.

• 1.9cm (0.75") height: as comfortable as on a CD player.

• 2 large jog wheels you can’t miss.
• Touch detection via weight sensors
• Weight sensors detect the user’s touch by detecting the hand’s weight, to activate scratch mode.
• Detection of the hand’s weight activating the jog wheels’ touch control is:

  • natural: like on vinyl turntables and high-end CD players.

  • secure: no disturbance from static electricity.

  • intuitive: no need to calibrate.
• The hand’s weight moves the jog wheels down by 1mm:
  • press the jog wheel down: you feel that you’re scratching.
  • move your hand up: you feel that you’ve released the jog wheel.
• While the track plays, you control the DJ software with 2 actions on the jog wheel:
  • rotation, to control movement within the track.
  • press down to control scratching.
• Thus, during audio track playback:
  • Rotation without jog wheel press = pitch bend (like when you turn a turntable’s ring).

  • Rotation with jog wheel press = scratch (like when you turn a vinyl record with your hand flat on the record).

  • No rotation with jog wheel press = stop playback (like when you stop a vinyl record’s rotation with your hand).

  • No rotation without jog wheel press = playback continues.
• Jog wheel accuracy
  • Rotation: 256 steps per revolution = 1.4 degrees per step.
  • Press down: <1mm travel.
• Powerful DJ control surface
• Number of controls: 2-deck mode
• Transport commands: 66 commands
• Transport buttons + combo commands: 52 buttons
• Shifted commands: 12
• Pitch reset: 2
• Knobs: 14
• Faders: 5
• Jog wheels: 4 commands
• Rotation commands: 2
• Touch commands: 2
• Total: 89 commands
• 4-deck mode
• Transport commands: 124 commands
• Transport buttons + combo commands: 96 buttons
• Shifted commands: 24
• Pitch reset: 4
• Knobs: 24
• Faders: 9
• Jog wheels: 8 commands
• Rotation commands: 4
• Touch commands: 4
• Total: 165 commands
• 2-deck and 4-deck DJ mixing controller
• 2-deck control
  • DJ Console 4-Mx controls 2 decks in the same way as DJ Console Rmx.
• 4-deck control
  • DJ Console 4-Mx controls both 2 decks and 4 decks, with 2 buttons switching the decks:
  • a deck switch button on the left deck converts deck A into C / deck C into A.

  • a deck switch button on the right deck converts deck B into D / deck D into B.
• Once a deck is switched:
  • all of the commands that the deck’s controls send to the DJ software are changed.

  • the letter of the active deck is highlighted in the center of the mixer.
• Audio for mobile and club DJs
• 2 stereo outputs

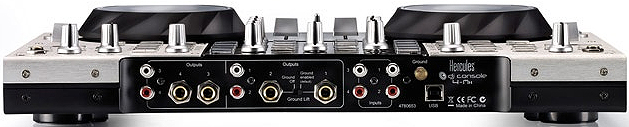

• 2 independent stereo outputs on the rear panel:
• 4 RCA connectors to connect to a stereo system, a recorder...

• 4 mono connectors in ¼’’ jack format, to connect to a public address amplifier or speakers.
• A ground lift switch on jack outputs 1-2, to protect the sound in the event of a ground loop.

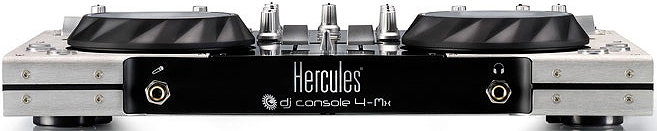

• 1 headphones ¼’’ jack stereo output, located both on the top panel and on the front panel.
• The headphones play the same channels as outputs 3-4 on the rear panel.
• The 2 ways of using DJ Console 4-Mx’s audio outputs are:
• For a mix inside DJ Console 4-Mx:
  • connect the speakers/amplifier to outputs 1-2, to play the mix for your audience.

  • connect headphones to one of the 2 headphone outputs (front or top), to preview tracks.
  • For an external mix (using an external mixer - VirtualDJ Pro (not included) or other DJ software required):

  • connect DJ Console 4-Mx outputs 1-2 to inputs 1-2 on the external mixer.

  • connect DJ Console 4-Mx outputs 3-4 to inputs 3-4 on the external mixer.

  • mix on the external mixer, and connect headphones to the external mixer.

  • use DJ Console 4-Mx to control the virtual decks.
• 2 stereo inputs
• 2 independent stereo inputs via 4 RCA connectors:
  • Select the audio source type in the DJ Console 4-Mx control panel: phono/consumer line/pro line/boost.

  • Boost mode supports +8dBu signal level (for use with Pioneer CDJ players, for example).

  • If the audio sources are vinyl turntables at phono level, connect the turntables’ ground cables to the DJ Console 4-Mx’s grounding screw.
• 1 microphone ¼’’ jack mono input, located on both the top panel and the front panel.
• The microphone input can be set:
  • as a talk-over source (default mode): the microphone is played on outputs 1-2 over the music in the background, using the music attenuation level set in the DJ Console 4-Mx control panel (0dB, -3dB, -6dB or -9dB).

  • or as a standard source, replacing inputs 1-2.
  • DJ Console 4-Mx pre-amplifies the microphone input by up to +34dB.

PC minimum requirements
Windows® XP/Vista/7 (32-/64-bit)
1.5GHz CPU or higher
1GB of RAM or more
USB port with USB bus power
Stereo speakers &/or headphones

Mac minimum requirements
Mac OS® 10.5/10.6
1.5GHz CPU or higher
1GB RAM or more
USB port with USB bus power
Stereo speakers &/or headphones
