The XTi Series of Crown amplifi ers are professional tools designed and built for portable PA applications. The series includes three models which are identical except for output power: XTi 1000, 2000 and 4000. All are rugged and lightweight, and offer unmatched value in their class. XTi-Series amplifi ers feature an LCD screen with speaker presets for crossover frequencies, EQ, limiting, delay, and a subharmonic synthesizer. Other features include a switchmode universal power supply, useful function indicators, proportional-speed fan-assisted cooling, XLR inputs, Speakon® and binding- post outputs, short-circuit protection and more. With their powerful, reliable performance, XTi-Series amps easily handle 2-ohm loads and are capable of chest-thumping lows. Plus, your investment in an XTi-Series amplifi er is backed by Crown’s Three-Year, No-Fault, Fully Transferable Warranty.

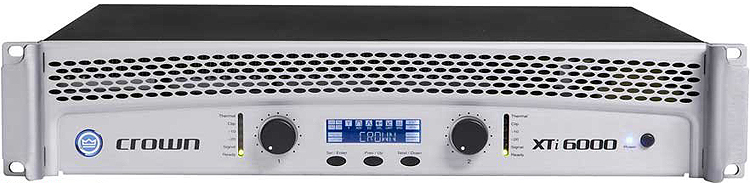

The Crown XTI6000 Power Amplifier is a rugged and lightweight power amp that offers unmatched value in its class. Providing up to 6,000 watts into a 4 ohm bridged load and weighing in at just 24 pounds, the XTI6000 sets a new standard in high-power, lightweight amplification.

The XTI6000 also inherits all the best features from the family line, the XTI Series, including powerful integrated speaker processing and an extremely efficient universal tracking switch-mode power supply.

When you're out with the XTI6000, you can count on having the best in music and voice reproduction with more power than ever.

Features

• Integrated proprietary DSP with LCD front panel display
• Accurate, uncolored sound with very low distortion for the best in music and voice reproduction
• Advanced protection circuitry guards against: shorted outputs, open circuits, DC, mismatched loads, general overheating, high-frequency overloads and internal faults
• Extremely versatile, handling a wide range of speaker impedances and outputs
• Switch-mode universal power supply
• Speaker presets for crossover frequencies, EQ, limiting, and delay
• All products fill 2U rack spaces and weigh under 17 pounds; weight sets a new standard in lightweight amps (20% less)

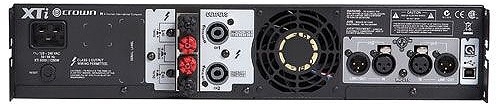

• Speakon and binding post outputs, XLR inputs and loop-thrus
• Comprehensive LED status per channel
• Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications
• Output Power (1kHz Power) (With 0.5% THD):
  - 2 ohm Stereo (per channel) (With 1% THD): 3,000 Watts
  - 4 ohm Stereo (per channel): 2,100 Watts
  - 8 ohm Stereo (per channel): 1,200 Watts
  - 4 ohm Bridge-Mono (With 1% THD): 6,000 Watts
  - 8 ohm Bridge-Mono: 4,200 Watts
• Sensitivity (volts RMS) for full rated power at 4 ohms: 1.4V
• Frequency Response (at 1 watt into 4 ohms, 20Hz - 20 kHz): +0/-1 dB
• Signal to Noise Ratio (below rated 1 kHz power at 8 ohms), A-weighted: 100 dB
• Damping Factor (8 ohm): 20 Hz to 400 Hz: > 500
• Input Stage: Input is electronically balanced and employs precision 1% resistors
• At Idle: Draws no more than 90 watts
• Crosstalk (below rated power) 20 Hz to 1 kHz: > 70 dB
• Input Impedance (nominal):
  - 20 kilohms balanced
  - 10 kilohms unbalanced
• Load impedance (note: safe with all types of loads)
  - Stereo: 2-8 ohms
  - Bridge mono: 4-16 ohms
• Voltage Gain (at 1 kHz, 8 ohm rated output): 37.1 dB
• Maximum Input Signal: +22 dBu typical
• Operating Temperature: 0* C to 40* C at 95% relative humidity (non-condensing)
• AC Line Voltage and Frequency Configurations Available (+/- 10%): 100V, 120V, 220-240V 50/60 Hz
• Ventilation: Flow-through ventilation from front to back
• Cooling: Heat sinks and proportional-speed fan
• Dimensions (W x H x D) (behind mounting surface): 19 x 3.5 x 16.2 inches (48.26 x 8.9 x 41.15 cm)
• Weight:
  - Net Weight: 24 pounds (10.9 kg)
  - Shipping Weight: 30 pounds (13.6 kg)
