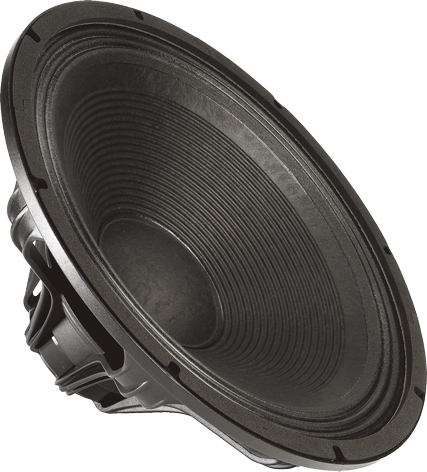

Faital Pro W18N8-1000

Regular Price $459.99 Our Price $389.99

NOMINAL SPECIFICATIONS Nominal Diameter 460 mm (18 in) Overall Diameter 460 mm (18.11 in) Bolt Circle Diameter 440 mm (17.32 in) Baffle Cutout Diameter 422 mm (16.61 in) Depth 202 mm (7.95 in) Flange and Gasket Thickness 13.9 mm (0.55 in) Net Weight 6.1 Kg (13.4 lb) Shipping Box 536x536x293 mm (21.1x21.1x11.5 in) Shipping Weight 7.4 Kg (16.3 lb) ELECTRICAL SPECIFICATION Minimum Impedance 6.6 Ohm Nominal Impedance 8 Ohm Nominal Power Handling * 1000 W Maximum Power Handling ** 2000 W Sensitivity (1W/1m) 99 dB Frequency Range 35÷1600 Hz Voice Coil Diameter 100 mm (4 in) Winding Material Cu Former Material Glass Fiber Winding Depth 23 mm (0.9 in) Magnetic Gap Depth 12 mm (0.47 in) Flux Density 1.3 T THIELE & SMALL PARAMETERS Fs 35 Hz e 5.4 Ohm Bl 27.6 N/A Mms 178.7 g Cms 0.12 mm/N Rms 3.7 Kg/s Qes 0.28 Qms 10.6 Qts 0.27 Vas 211.8 dm^3 (7.48 ft^3) Sd 1136 cm^2 (176.1 in^2) Xmax *** 9.5 mm Xdamage **** 17.5 mm Le 1.6 mH Mmd 156.8 g Eta Zero 3.17 %
