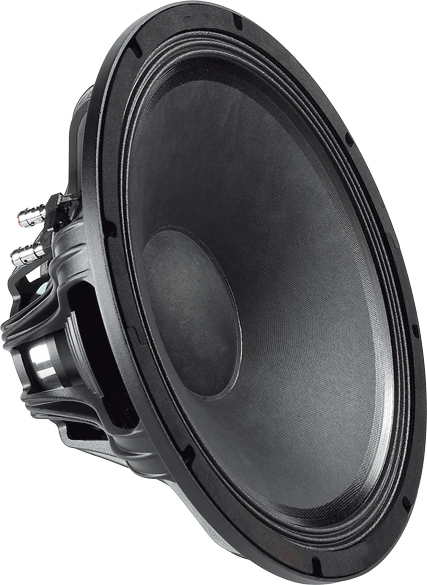

Faital Pro 15FH500 |
 |
Regular
Price $319.99
Our Price $239.99
|
NOMINAL SPECIFICATIONS |
Nominal Diameter |
3880 mm (15 in) |
Overall Diameter |
393 mm (15.47 in) |
Bolt Circle Diameter |
374 mm (14.72 in) |
Baffle Cutout Diameter |
354 mm (13.94 in) |
Depth |
181..3 mm (7.14 in) |
Flange and Gasket Thickness |
13.7 mm (0.54 in) |
Net Weight |
4.4 Kg (9.7 lb) |
Shipping Box |
426x429x225 mm (16.8x16.9x8.9 in) |
Shipping Weight |
5 Kg (11 lb) |
ELECTRICAL SPECIFICATION |
Minimum Impedance |
6 Ohm |
Nominal Impedance |
8 Ohm |
Nominal Power Handling * |
500 W |
Maximum Power Handling ** |
1000 W |
Sensitivity (1W/1m) |
98 dB |
Frequency Range |
35÷3150 Hz |
Voice Coil Diameter |
77 mm (3 in) |
Winding Material |
Al |
Former Material |
Glass Fiber |
Winding Depth |
22 mm (0.87 in) |
Magnetic Gap Depth |
10.5 mm (0.41 in) |
Flux Density |
1.2 T |
THIELE & SMALL PARAMETERS |
Fs |
35 Hz |
Re |
5.1 Ohm |
Bl |
19.2 N/A |
Mms |
104 g |
Cms |
0.20 mm/N |
Rms |
2.2 Kg/s |
Qes |
0.32 |
Qms |
10.4 |
Qts |
0.31 |
Vas |
217.4 dm^3 (7.68 ft^3) |
Sd |
880 cm^2 (136.4 in^2) |
Xmax *** |
9.25 mm |
Xdamage **** |
16 mm |
Le |
1.3 mH |
Mmd |
89.7 g |
Eta Zero |
2.8 % |
|
